Overview
The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K2075B, is a 6-inch knuckle lift. The front uses spindles and knuckles with front crossmembers and compression struts, and the rear uses coil spacers. No steering correction is needed, and the lift height range is 5 to 6.99 inches.
Front sway bar spacers and bump stop extensions are included, along with brake line extension brackets. The front shocks are reused OEM units, not ES9000 shocks. Check the front shock setup before installing the kit.
Key features
- 6-inch stage 1 knuckle lift
- Spindles and knuckles
- Crossmembers and compression struts
- Front sway bar spacers
- Bump stop extensions
- Brake line extension brackets
- Rear coil spacers
Alignment after a knuckle lift
A knuckle lift replaces the spindles and knuckles, which changes the front geometry the wheels rely on. An alignment after installation sets the caster, camber and toe so the tires wear evenly and the steering feels centered.
Compression struts and crossmembers work with the new knuckles to hold the axle in position, so their bolts should be checked after the first drives. Sway bar spacers and bump stop extensions help the front keep its composure once the height changes.
Brake lines and driveline angles often need a look after a knuckle lift because the components move. Check that the lines are not stretched or rubbing, and confirm the driveline angles suit smooth operation.
- Get a full alignment after install
- Check compression strut bolts
- Inspect brake lines for stretch
- Look at driveline angles and vibration
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2075B |
| UPC | 614901205046 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Steering correction | Not needed |
| Rear lift | Coil spacers |
| Front shocks | Reused OEM front shocks |
| Fitment | Direct fit |
Vehicle fitment
Confirm the Ram model years and trims this kit fits against your truck before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the spindles and knuckles changes front geometry, so have the alignment and driveline angles checked after installation.
What’s included

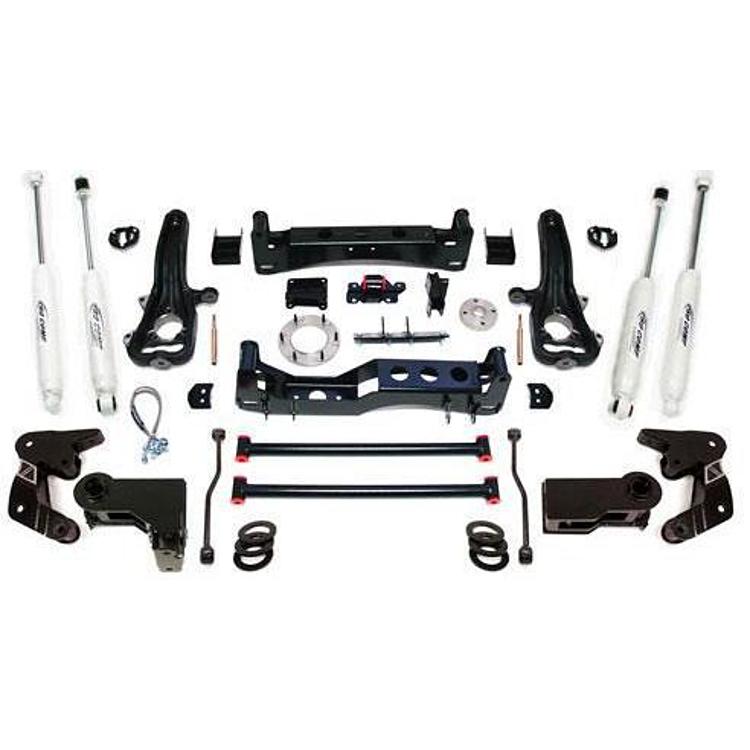

The kit includes spindles and knuckles, front crossmembers, compression struts, front sway bar spacers, bump stop extensions, brake line extension brackets and rear coil spacers.
