Pro Comp 5 Inch Stage I Lift Kit with ES9000 Shocks – K4035B

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5-inch stage 1 coil spring lift with radius arm brackets for Ford Super Duty trucks
  • Front sway bar links, bump stop extensions and pitman arm correction
  • Brake line extension brackets and a rear block and U-bolt kit with add-a-leafs
  • ES9000 shocks listed in the product name

Description

Overview

The Pro Comp K4035B is a stage 1 coil spring lift with radius arm brackets and ES9000 shocks. The product name gives a 5-inch lift, while the specifications list 6 inches with a lift height range of 5 to 6.99 inches. Check the height against your own truck before ordering.

The front uses coil springs with radius arm brackets, front sway bar links, bump stop extensions and brake line extension brackets. A pitman arm corrects the steering, and the rear uses a block and U-bolt kit with add-a-leafs. No vehicle is named for this part number.

Key features

  • Stage 1 lift
  • Front coil springs with radius arm brackets
  • Front sway bar links and bump stop extensions
  • Pitman arm steering correction
  • Brake line extension brackets
  • Rear block, U-bolt kit and add-a-leafs

Lift height check

Before ordering any coil spring lift with radius arm brackets, measure your truck’s current ride height and compare it with the height the kit is meant to add. A mismatch between the stated height and the actual gain leads to rubbing tires, a sloped stance and poor steering centering after the install.

Stage 1 kits with a block and U-bolt rear setup are usually chosen for light to moderate use. Think about your tire size, bumper and winch weight, and the load you carry before settling on a height. Choosing a kit that matches how the truck is actually used keeps the suspension within its working range.

  • Measure current ride height before ordering
  • Check tire clearance at full steering lock
  • Consider bumper and winch weight in the setup

Specifications

Brand Pro Comp Suspension
Part number K4035B
UPC 614901124705
Lift 6 inches, stage 1 (per specifications)
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arm brackets
Rear lift Block, U-bolts and add-a-leaf
Steering correction Pitman arm
Front shocks ES9000
Rear shocks ES9000

Vehicle fitment

Confirm your vehicle’s year, model and trim before ordering, since fitment for this kit is not known. Check the lift height against your truck before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arm brackets and a block and U-bolt rear lift change the front and rear geometry, so the alignment and driveline angles should be checked after installation.

What’s included

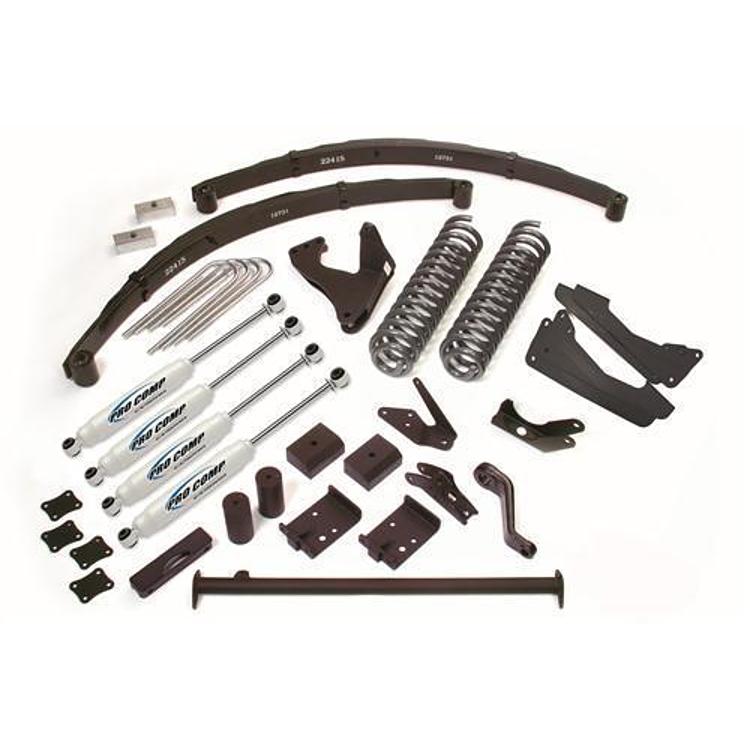

The kit includes front coil springs, radius arm brackets, front sway bar links, bump stop extensions, brake line extension brackets, a pitman arm, a rear block and U-bolt kit with add-a-leafs and ES9000 shocks.

SKU: EXPK4035B Category:

Specification

Shipping weight 228.15 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which vehicles does the K4035B fit?

Confirm your vehicle's year, model and trim before ordering. Radius arm brackets and a block and U-bolt rear lift are typically matched to specific Ford Super Duty setups, so compare those details with your truck.

Is the K4035B a 5-inch or 6-inch lift?

The product name gives 5 inches, while the specifications list 6 inches with a lift height range of 5 to 6.99 inches. Confirm the height before ordering.

Are shock boots included with the K4035B?

Check the package contents against your installation before starting. If boots are needed for the ES9000 shocks, plan to source them separately.

How do I check whether a lift will rub the tires?

Turn the wheels fully left and right with the truck parked and look for contact at the fender liner and inner wheel well. Also check the tires over bumps. Rubbing that appears under load often means a smaller tire or trimming is needed.
