Pro Comp 2.5 Inch Lift Kit with ES3000 Shocks – K3071

Pro Comp Suspension

Shop Jeep CJ5 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5-inch stage 1 leaf spring lift for 1954–1968 Jeep CJ models
  • Fits CJ3, CJ5, CJ5A, CJ6, CJ6A and Willys CJ-3, CJ-5 and CJ-6 models
  • ES3000 front and rear shocks with rear springs and U-bolts
  • Max tire size 32×11.50 on 15-inch or larger wheels

Description

Overview

The Pro Comp K3071 is a 2.5-inch stage 1 leaf spring lift for older Jeep CJ models, with ES3000 shocks at both ends. It fits 1959–1966 CJ3, 1959–1968 CJ5, 1966–1968 CJ5A, 1959–1968 CJ6 and 1966–1968 CJ6A models, plus 1954–1958 Willys CJ-3, CJ-5 and CJ-6 models.

The front uses leaf springs and the rear uses springs with U-bolts. ES3000 shocks are supplied at both ends, and the specifications mark the kit as a rear position part. Wheels should be 15 inches or larger.

Key features

  • 2.5-inch stage 1 lift
  • Front leaf springs
  • Rear springs and U-bolts
  • ES3000 front and rear shocks
  • Wheel size 15 inches or larger
  • Wheel width 8 to 12 inches

Older CJ frame checks

Early CJ frames were built with a variety of mounting points, and years of rust can change the shape of the spring perches. Before lifting, inspect the frame rails near the spring hangers and the axle housing for cracks, bent brackets or heavy corrosion. A sound frame gives the leaf spring and U-bolt setup a stable base.

Leaf springs on these trucks often carry more load than the original setup was designed for, so check the spring eyes, shackle bolts and bushings for wear. Replacing the shackle hardware at the same time keeps the new springs seating correctly and reduces noise on rough roads.

Once the lift is in, drive slowly over a rough road and listen for clunks. Re-check the U-bolts and spring hardware after the first few outings, and inspect the brake lines for stretch at full droop.

Specifications

Brand Pro Comp Suspension
Part number K3071
UPC 614901123289
Lift 2.5 inches, stage 1
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Front shocks ES3000
Rear shocks ES3000
Position Rear
Max tire size 32×11.50
Wheel size range 15 inches or larger
Wheel width range 8 to 12 inches
Min-max backspace 3.25 to 4.5 inches

Vehicle fitment

It fits 1959–1966 Jeep CJ3 Base, 1959–1968 Jeep CJ5 Base, 1966–1968 Jeep CJ5A Base, 1959–1968 Jeep CJ6 Base and 1966–1968 Jeep CJ6A Base models, along with the 1954–1958 Willys CJ-3, CJ-5 and CJ-6. Later CJ and Wrangler generations do not fit this kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Older CJ frames and axles vary in their mounting points, so check the leaf spring and U-bolt fit before the springs are fully torqued. Check the driveline angles after the lift is installed.

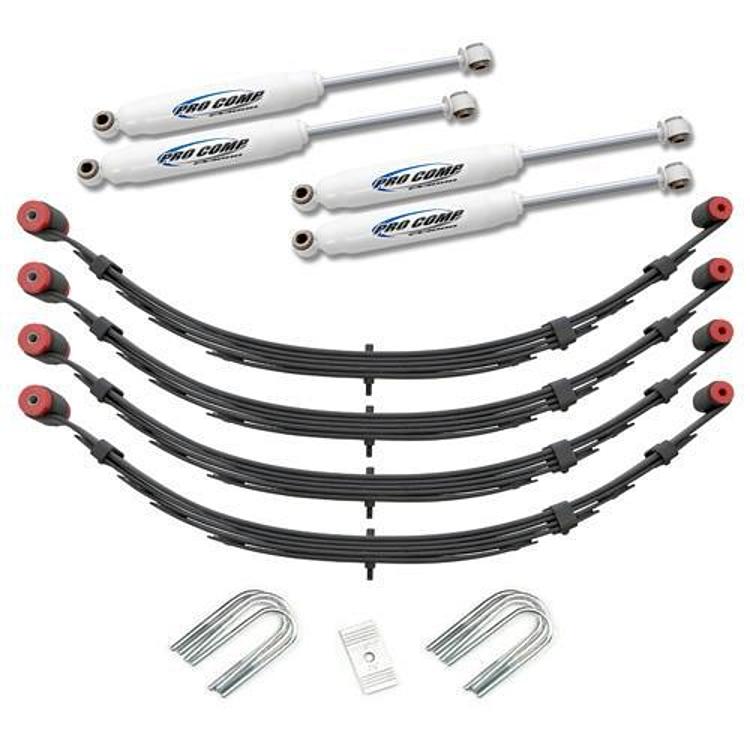

What’s included

The kit includes front leaf springs, rear springs and U-bolts, and ES3000 front and rear shocks.

SKU: EXPK3071 Category:

Specification

Shipping weight 143.86 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ31959–1966Base
Jeep CJ51959–1968Base
Jeep CJ5A1966–1968Base
Jeep CJ61959–1968Base
Jeep CJ6A1966–1968Base
Jeep Willys CJ-31954–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3071 fit a 1957 Willys CJ-5?

Yes. It fits 1955–1958 Willys CJ-5 models, which covers 1957. Confirm the body and trim against the fit range before ordering, since the other CJ entries name Base trims.

Is the K3071 for the CJ7?

No. It fits CJ3, CJ5, CJ5A, CJ6 and CJ6A models from the 1950s and 1960s, plus the Willys CJ-3, CJ-5 and CJ-6, but not the CJ7.

What wheel size does the K3071 need?

The wheel size should be 15 inches or larger, and the width should fall between 8 and 12 inches. The maximum tire size is 32x11.50, with a backspace range of 3.25 to 4.5 inches.

What should I check on an older CJ frame before installing?

Look for cracks around the spring perches and inspect the axle housing for wear at the U-bolt seats. Clean the mounting surfaces and check that the leaf springs sit square before torquing the hardware.
