Select your vehicle
-13%

Pro Comp 6 Inch Stage I Lift Kit with ES9000 Shocks – K4181B

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 6-inch Stage I kit for the 2011–2016 Ford F-350 Super Duty
  • Specific rate coil springs with radius arm drop brackets and a Pitman arm
  • Front track bar bracket, sway bar links and lift blocks at the rear
  • ES9000 front shocks with U-bolts and add-a-leafs for the rear lift

Description

Overview

The Pro Comp K4181B is a 6-inch Stage I lift kit with ES9000 shocks for the 2011–2016 Ford F-350 Super Duty. Specific rate coil springs and radius arm drop brackets raise and locate the front, and lift blocks, U-bolts and add-a-leafs raise the rear.

The drop Pitman arm corrects steering for the raised front end. The front track bar bracket and sway bar links are part of the front package, and the front shocks are ES9000.

Key features

  • 6-inch lift height from a Stage I kit
  • Specific rate coil springs and spacers
  • Radius arm drop brackets
  • Drop Pitman arm steering correction
  • Front track bar bracket and sway bar links
  • Lift blocks, U-bolts and add-a-leafs at the rear

Drop brackets and Stage I geometry

Radius arm drop brackets reposition the front arms rather than replacing them, so the front end is raised with parts that work with the existing suspension layout. A common goal with drop brackets is keeping the factory arms in service, though the front alignment still needs to be set after the work is done.

Drop Pitman arms and the front track bar bracket work together to keep steering centered as the front rises. Check the track bar and sway bar links for wear before installing, because worn links clatter and loosen the feel of the front end. Plan regular checks of the U-bolts and add-a-leafs, which carry rear load.

  • Check the front brake lines for clearance
  • Replace worn sway bar links during the install
  • Watch the front tire wear pattern after the alignment

Specifications

Brand Pro Comp Suspension
Part number K4181B
UPC 70000544816
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 1
Suspension type Radius arm or radius arm brackets
Front lift Specific rate coil springs and spacers
Steering correction Pitman arm
Rear lift Lift blocks, U-bolts and add-a-leaf
Front shocks ES9000

Vehicle fitment

The kit fits the Ford F-350 Super Duty from 2011 through 2016 in King Ranch, Lariat, Platinum, XL and XLT versions.

The F-250 Super Duty and the 2017 and newer trucks are not part of this entry. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Drop brackets and the drop Pitman arm change the steering and front geometry, so the alignment and the driveline angles should be checked after installation.

What’s included

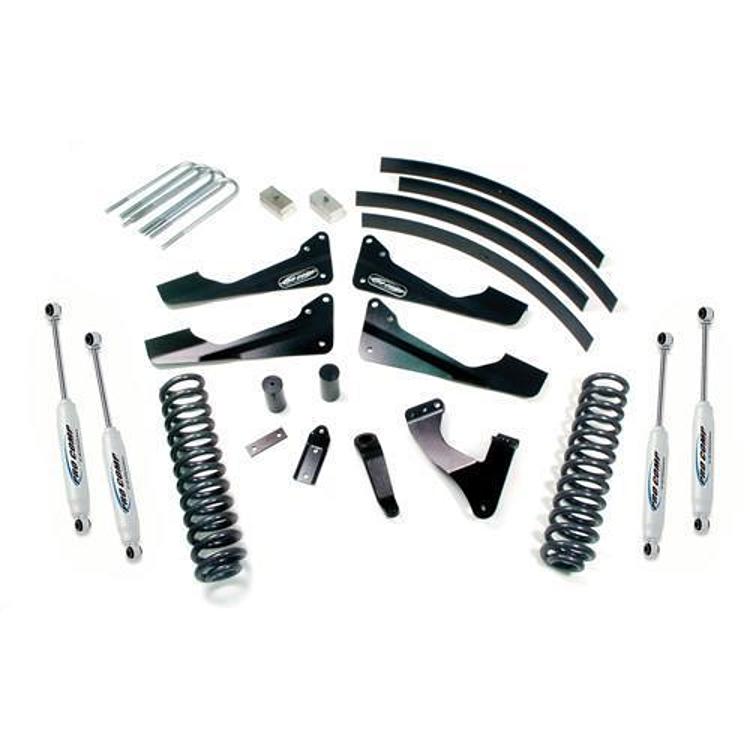

The kit includes specific rate coil springs and spacers, radius arm drop brackets, the drop Pitman arm, a front track bar bracket, sway bar links, lift blocks, U-bolts and add-a-leafs, and ES9000 front shocks.

SKU: EXPK4181B Category:

Specification

Shipping weight 280.85 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-350 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4181B fit a 2011 F-350 Super Duty?

Yes. The listed years for the F-350 Super Duty run from 2011 through 2016, so a 2011 truck is covered. Confirm the cab and trim on your truck before ordering.

Is this kit Stage I or Stage II?

It is Stage I, so the front uses radius arm drop brackets rather than the replacement radius arms of the Stage II kits in this family.

What shocks are at the front?

The front shocks are ES9000 units, and the rear lift uses lift blocks, U-bolts and add-a-leafs. The front also uses specific rate coil springs.

Can a Stage I kit be upgraded later to replacement radius arms?

Yes, but it is a larger job. Moving to replacement radius arms changes the front arm setup, so the brackets, alignment and related hardware need to be planned together. Confirm fit for your vehicle's year, model and trim before ordering any upgrade parts.
