Overview
The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK4114T (kit K4114T), is a stage 1 lift for the 1981 to 1989 Ford F-150 in the Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT and XLT Lariat versions.
The specifications list a 4-inch stage 1 lift with a block or spacer rear and a block and U-bolt component. The lift height range is 4 to 5.5 inches. The kit includes PRO-X front shocks and PRO-X rear shocks.
The title and specifications both name PRO-X shocks, with PRO-X listed at both the front and the rear.
Key features
- 4-inch stage 1 suspension lift

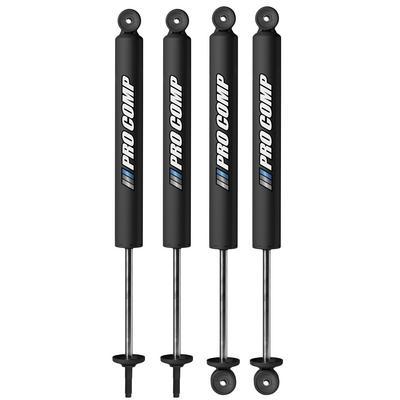

- PRO-X front and rear shocks, included
- Block or spacer rear lift
- Lift height range of 4 to 5.5 inches
Choosing a stage 1 setup
A stage 1 lift raises the truck with modest changes to the suspension, which keeps the factory layout mostly intact. Stage 1 kits suit owners who want more tire clearance and a more level stance without rebuilding the front end. Shock length and mounting points strongly affect ride quality, so new shocks should be matched to the lift rather than reused from the old setup.
The rear block or spacer changes the angle of the driveshaft, so check for vibration on the first drives and after any change in load. Look at brake lines, sway bar links and steering linkage for stretch or contact after the lift. Bump stops should be checked too, since a higher ride height changes how the suspension reaches its limits.
- Check U-bolt nut torque after the first few drives
- Inspect brake hoses for tension at full droop
- Recheck alignment after the lift settles
- Look for rubbing at full steering lock
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK4114T |
| Kit code | K4114T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 4 inches stage 1; range 4 to 5.5 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt |
| Shocks included | Yes |
| Front shocks | PRO-X |
| Rear shocks | PRO-X |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1981 to 1989 Ford F-150 in the Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT and XLT Lariat versions.
The list does not include the 1980 and earlier F-150 or the 1990 and newer models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The rear block and U-bolt setup changes the rear ride height, so the heights should be checked and the alignment set after the install.
What’s included
A 4-inch stage 1 lift kit, including PRO-X shocks at the front and rear.
