Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K2102B

Pro Comp Suspension

Shop Ram 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 bracket and knuckle kit for 4WD Ram 1500 trucks
  • Rear ES9000 shocks and rear coil spring spacers
  • Front strut spacer, steering knuckles and crossmembers
  • Designed for 2012–2018 Ram 1500 4WD trucks

Description

Overview

The Pro Comp K2102B is a 4-inch stage 1 bracket and knuckle lift kit for 4WD Ram 1500 trucks. It suits 2012–2018 Ram 1500 trucks in Big Horn, Express, Laramie, Rebel, SLT, Sport and Tradesman trims.

The kit covers the front with crossmembers, steering knuckles, differential drop brackets and a driveshaft spacer. It lifts the rear with coil spring spacers and includes the ES9000 rear shocks. No front shock is supplied with this kit.

Key features

  • 4-inch stage 1 lift, 3 to 4.99 inch lift height range
  • Steering knuckles and crossmembers
  • Front differential drop brackets and driveshaft spacer
  • Front strut spacer and sway bar end link extensions
  • Rear ES9000 shocks and rear track bar bracket
  • Skid plate and control arm drop brackets

Choosing a front shock

This kit supplies no front shock, so front damping is a separate decision. The bracket and knuckle design changes the upper and lower mounting points, so a new shock must match the bracket layout and the length needed at the raised height. Measure the installed length before ordering and confirm the mounts suit the knuckle style.

The ES9000 rear shocks are included, and a mismatch between front and rear damping can make the truck feel unsettled at speed. Many owners choose front shocks with a damping feel similar to the rear unit. Inspect front and rear mounts together at each oil change, and check that the track bar bracket clears the new rear axle position.

  • Measure installed length before ordering
  • Match front and rear damping feel
  • Check track bar clearance at the rear axle

Specifications

Brand Pro Comp Suspension
Part number K2102B
UPC 700007251171
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Bracket and knuckle
Front shocks None included
Rear shocks ES9000
Rear lift method Spacers
Drive 4WD models only

Vehicle fitment

It is designed for 2012–2018 Ram 1500 trucks, including Big Horn, Express, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Rebel, SLT, ST, Special Service, Sport and Tradesman. It is for 4WD trucks only.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the knuckles and brackets replace the stock front parts, the steering and brake lines should be checked during the fit, and an alignment should follow. The rear track bar bracket is included for the raised rear axle.

What’s included

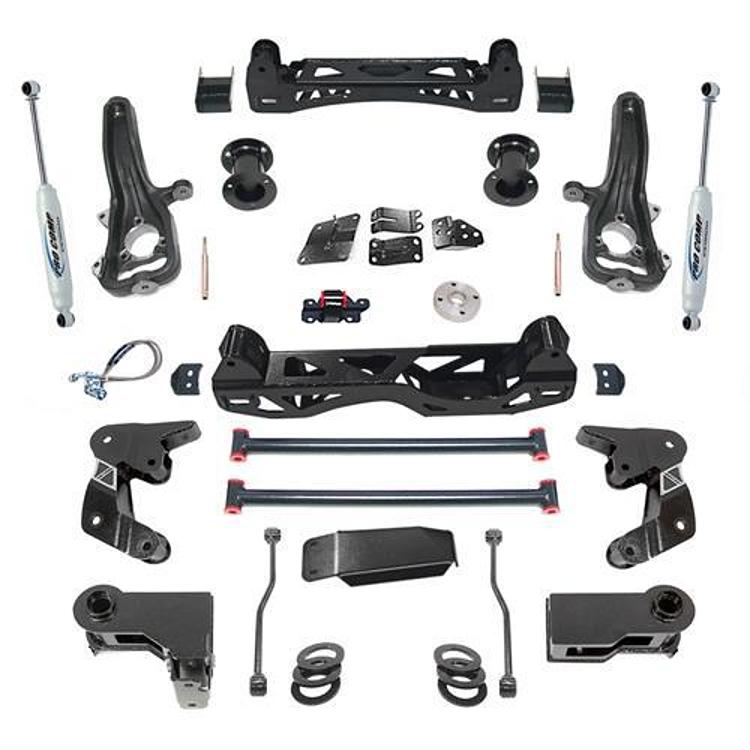

The kit includes crossmembers, steering knuckles, front differential drop brackets, a driveshaft spacer, sway bar end link extensions, a skid plate, control arm drop brackets, coil spring spacers, a front strut spacer, a rear track bar bracket, rear ES9000 shocks, a rear brake line drop bracket and hardware.

SKU: EXPK2102B Category:

Specification

Shipping weight 280.78 lbs
Package dimensions 0.50 × 0.50 × 0.50 in
brands

Fitment

VehicleYearsTrims
Ram 15002012–2018Big Horn, Express, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Rebel, SLT, ST, Special Service, Sport, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K2102B include front shocks?

No. The spec sheet lists no front shock with this kit, so front shocks are not supplied. The rear ES9000 shocks are included, and the front shock setup should be checked on the truck before installation.

Does the K2102B fit a 2012 Ram 1500?

Yes. It is designed for 2012 through 2018 Ram 1500 trucks, so 2012 models are covered when they are 4WD. Confirm your trim and cab against your vehicle before ordering.

Will this kit fit a two-wheel-drive Ram 1500?

No. The kit is designed for 4WD Ram 1500 trucks only, so two-wheel-drive models are outside its intended use. Confirm the drive type on your truck before ordering.

How should a bracket and knuckle kit be checked after installation?

Look at brake line routing, steering stops and tie rod clearance, then check for rubbing at full steering lock. Recheck the bolts after the first few drives, since new brackets can settle as the parts seat.
