Overview
The Pro Comp K5062B is a 4-inch Stage 1 leaf spring lift kit with ES3000 front and rear shocks. Both the front and rear suspension use leaf springs, with bump stop extensions included for the front.
The spec table gives a lift height range of 3 to 4.99 inches. The kit is listed with a maximum tire size of 33×12.50 and a wheel size range of 15 to 20 inches. Shock boots are not included.
Key features
- 4-inch lift height, Stage 1
- Front leaf springs
- Rear leaf springs
- Bump stop extensions
- ES3000 front and rear shocks
- Maximum tire size 33×12.50 and wheel size range 15 to 20 inches
Leaf spring considerations
Leaf springs carry both the vehicle’s weight and the axle’s location, so a change in spring rate or arch affects how the axle sits under load. Replacing front and rear leaves together keeps the ride balanced, and it lets the shocks and bump stops work with the new spring height. Leaves can also shift in their hangers over time, so the spring pack should be checked during each service.
Worn leaf packs often show sagging, broken leaves or squeaks from the spring eyes and shackles. Replacing bushings at the eyes and shackles during the install helps prevent looseness. Check the brake lines and the axle vent after the lift, and recheck the U-bolts after the first few drives, since they can settle under the new load.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5062B |
| UPC | 614901207309 |
| Lift height | 4 inch (lift height range 3 to 4.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | Leaf springs |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
| Maximum tire size | 33×12.50 |
| Wheel size range | 15 to 20 inches |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Compare the leaf spring layout and axle position against your truck before starting the install.
Do not assume coverage from the leaf spring design or the tire ranges alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Leaf spring lifts change the spring rate and ride height, so check the axle position and the brake lines after installation.
What’s included

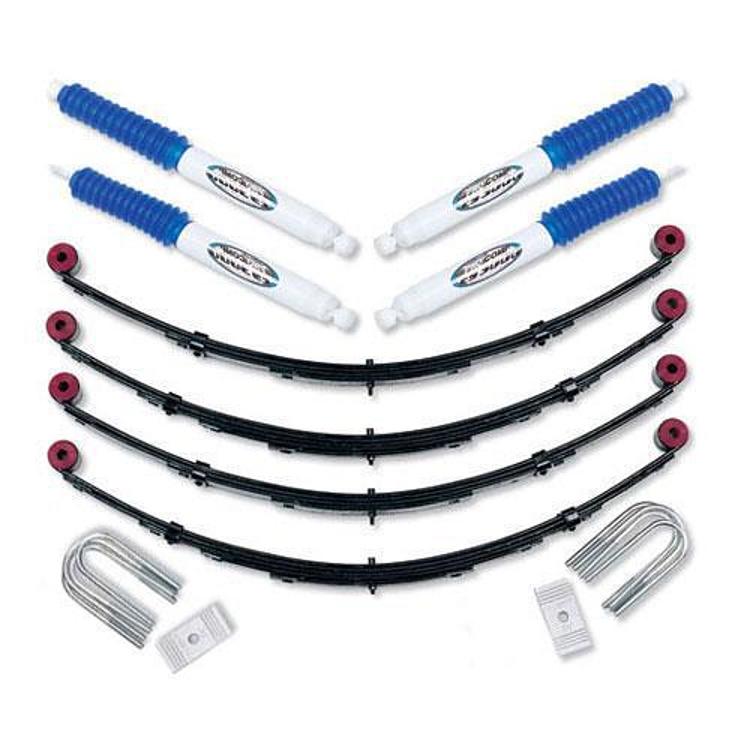

The kit includes front leaf springs, rear leaf springs, bump stop extensions, and ES3000 front and rear shocks.
Not included: shock boots.
