Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K1159B

Pro Comp Suspension

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch lift built for aluminum OE knuckles
  • Rear block, U-bolt and add-a-leaf kit with ES9000 rear shocks
  • Brake line extension brackets; maximum tire size 33×12.50 (listed)
  • Fits 2014-2016 Chevrolet Silverado 1500 and GMC Sierra 1500 with aluminum knuckles

Description

Overview

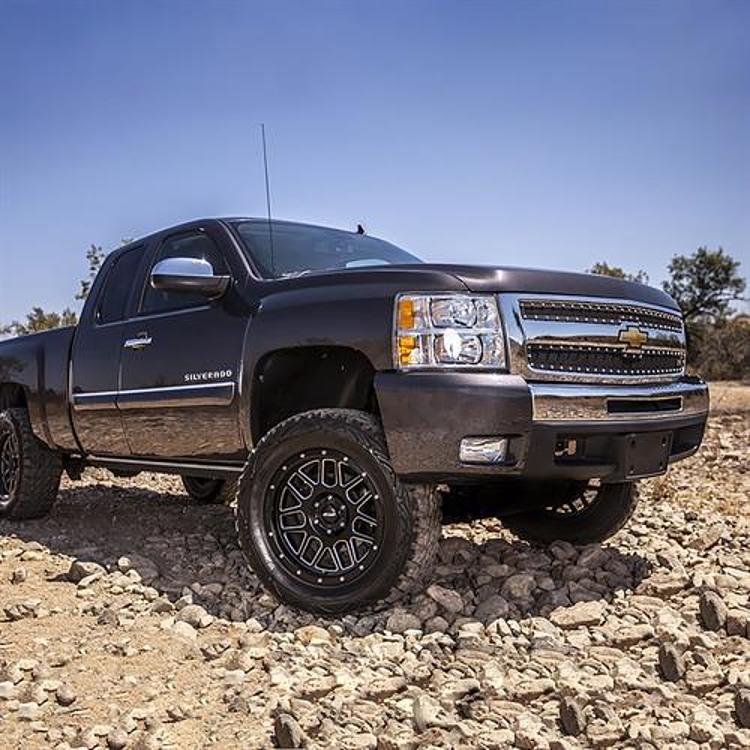

The Pro Comp 4 Inch Lift Kit with ES9000 Shocks, part number K1159B, is a 4-inch lift for the 2014-2016 Chevrolet Silverado 1500 and GMC Sierra 1500. This version is made for trucks with aluminum OE knuckles, which is the main difference from the K1158B kit that uses steel knuckles.

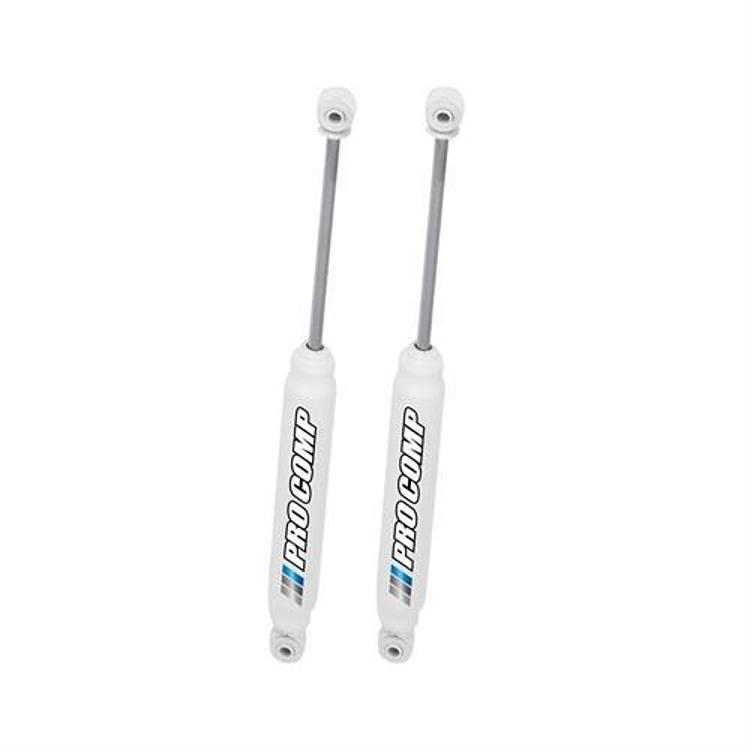

The rear uses a block and U-bolt kit with add-a-leaf components, and ES9000 shocks are fitted at the rear. The front shocks are reused from the truck. Brake line extension brackets are included, and shock boots are not included. The lift height range is 3 to 4.99 inches, and the maximum tire size is 33×12.50.

Key features

  • 4-inch stage 1 lift
  • Designed for aluminum OE knuckles
  • Rear block and U-bolt kit with add-a-leafs
  • Rear ES9000 shocks
  • Front shocks reused from the truck
  • Brake line extension brackets

Knuckle type and lift matching

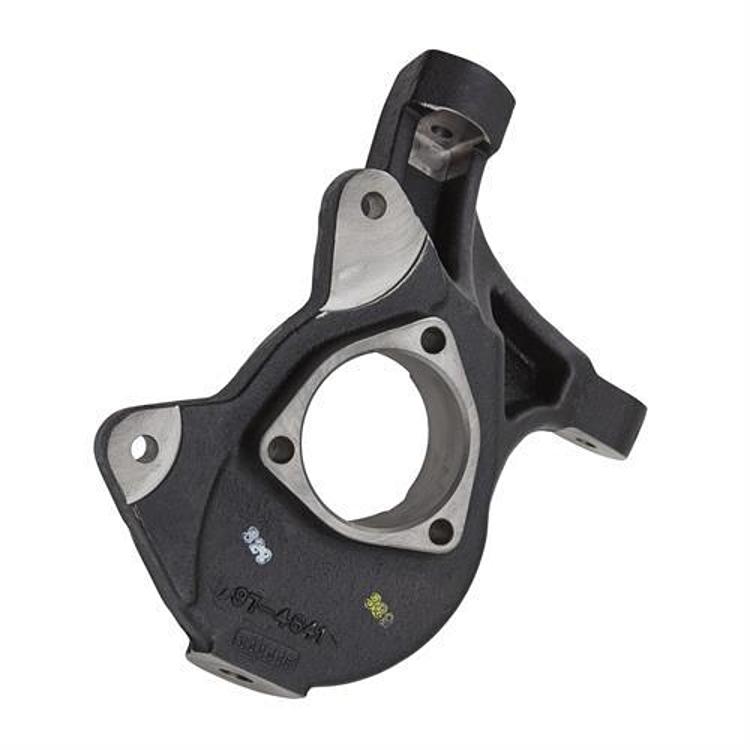

Factory knuckles carry the steering and brake loads at each front wheel, and their material affects how the hub and spindle are built. Aluminum knuckles are lighter and use different geometry than steel ones, so a kit built for one type will not always work with the other. Confirm the knuckle material on your truck before ordering, since this is the main check that decides which lift kit fits.

Once the correct kit is confirmed, plan the install around the knuckles, ball joints and brake hoses. Check the steering stop, tie rod ends and sway bar links after the lift, and keep an eye on any clearance changes near the hub. Matching the kit to the truck from the start avoids rework later.

  • Confirm knuckle material before ordering
  • Check brake hoses and steering stops
  • Keep kit parts matched to each other

Specifications

Brand Pro Comp Suspension
Part number K1159B
UPC 70000699339
Lift height 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Knuckle
Knuckles Factory aluminum
Rear lift Block and U-bolt kit with add-a-leafs
Rear shocks ES9000
Front shocks Reuse OEM
Maximum tire size 33×12.50
Fitment Direct fit

Vehicle fitment

It fits the 2014-2016 Chevrolet Silverado 1500 in the Custom, High Country, LS, LT, LTZ, SSV and WT trims, and the 2014-2016 GMC Sierra 1500 in the Base, Denali, SLE and SLT trims. Trucks with steel OE knuckles need a different kit.

Trucks from 2013 and earlier and from 2017 on are not on this list, and trucks with steel OE knuckles should use a different kit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This kit is matched to aluminum factory knuckles, so check the knuckle material on your truck before installing. The rear lift and the 3 to 4.99 inch range change driveline angles, so check them after installation.

What’s included

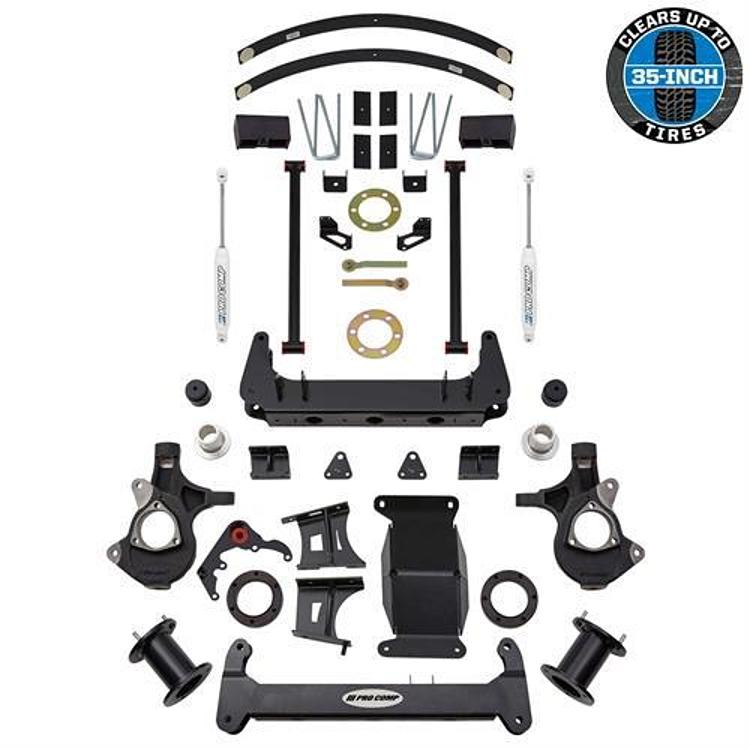

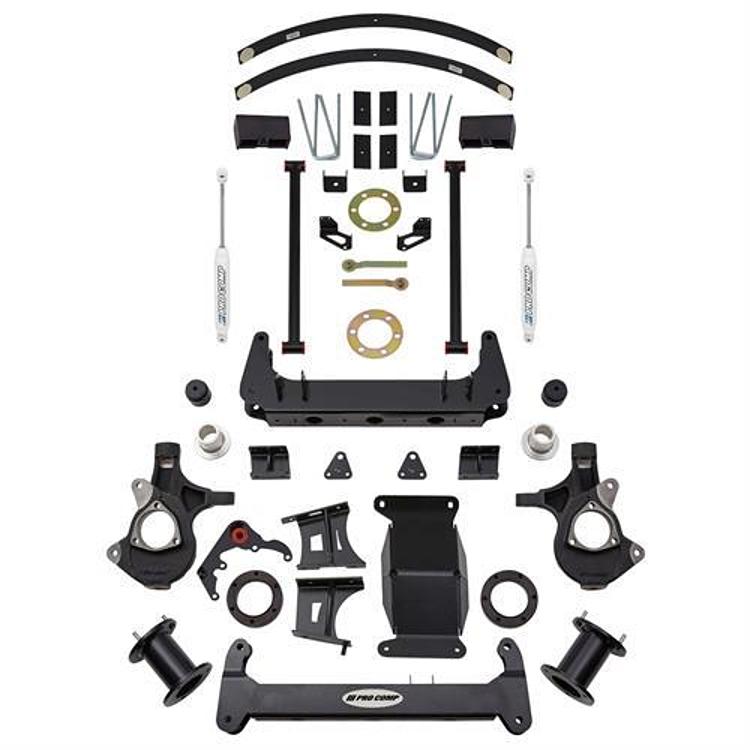

The kit includes a block and U-bolt rear kit with add-a-leafs, brake line extension brackets, and ES9000 rear shocks. Shock boots are not included.

SKU: EXPK1159B Category:

Specification

Shipping weight 273.65 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2016Custom, High Country, LS, LT, LTZ, SSV, WT
GMC Sierra 15002014–2016Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How is the K1159B different from the K1158B?

The K1159B is made for factory aluminum knuckles, while the K1158B is made for factory steel knuckles. Both use a rear block and U-bolt kit with ES9000 rear shocks.

Will the K1159B fit a 2016 Chevrolet Silverado 1500?

Yes. The 2014-2016 Silverado 1500 is covered, and 2016 falls within that range. Custom, High Country, LS, LT, LTZ, SSV and WT trims are covered.

What tire size does the K1159B allow?

The maximum tire size is 33x12.50 for this kit. Tires larger than that need clearance checks at full suspension travel before buying.

Can a steel knuckle truck use this kit?

No. This kit is made for aluminum factory knuckles, so trucks with steel OE knuckles need the separate steel-knuckle version. Confirm the knuckle material on your truck before ordering.

What should be checked after installing this lift?

Check driveline angle, brake line length, and steering travel. Look for tire rub at full turns and bump, and have the alignment set once the lift is complete.
