Pro Comp 4 Inch Lift Kit with ES3000 Shocks – K5056B

Pro Comp Suspension

Shop Toyota Pickup Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 4-inch Stage 1 kit for the 1986–1995 Toyota 4Runner and Pickup
  • Steering knuckle spacers with front and rear crossmembers
  • Front sway bar links, bump stop extensions and upper control arm mount brackets
  • Rear block and U-bolt kit with ES3000 front and rear shocks

Description

Overview

The Pro Comp K5056B is a 4-inch Stage 1 lift kit with ES3000 front and rear shocks for the 1986–1995 Toyota 4Runner and Toyota Pickup. It lifts the front with steering knuckle spacers and front and rear crossmembers, and it lifts the rear with a block and U-bolt kit.

Upper control arm mount brackets are part of this Stage 1 package, along with bump stop extensions and front sway bar links. The front shock is ES3000.

Key features

  • 4-inch lift height, Stage 1
  • Steering knuckle spacers
  • Front and rear crossmembers
  • Front sway bar links
  • Bump stop extensions
  • Upper control arm mount brackets

Before you buy

A Stage 1 lift is often chosen for a modest change in height with a focus on everyday driving. The front spacers and crossmembers do most of the lifting, and the rear block and U-bolt kit raises the back to match. Because the front geometry changes, the tire size, bumper weight and steering components all deserve a look before the install starts.

Older trucks often show worn bushings, brake lines and bump stops once they are lifted. Inspect those parts while the wheels are off, and replace anything that feels soft or cracked. A clean, documented install makes later service easier, and it helps the next owner understand what was changed.

  • Check brake line length after the lift
  • Inspect bushings and bump stops during install
  • Recheck alignment after the first drives

Specifications

Brand Pro Comp Suspension
Part number K5056B
UPC 614901207224
Lift height 4 inch (lift height range 3 to 4.99 inches)
Lift kit stage Stage 1
Suspension type Spacer
Front lift Steering knuckle spacers
Rear lift Lift blocks and U-bolts
Front shocks ES3000
Rear shocks ES3000

Vehicle fitment

It fits the 1986–1995 Toyota 4Runner in the DLX and SR5 versions, and the 1986–1995 Toyota Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions.

Only the 1986 through 1995 model years are included, so the 1985 and earlier 4Runner and Pickup, and the later generations, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The knuckle spacers and A-arm mount brackets alter the front suspension geometry, so schedule the alignment and check the driveline angles once the lift is installed.

What’s included

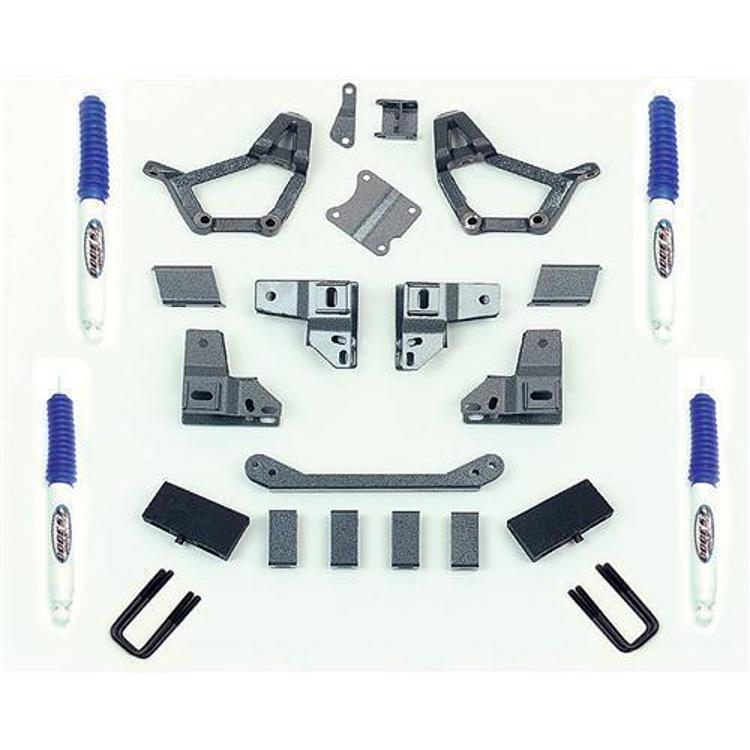

The kit includes steering knuckle spacers, front and rear crossmembers, front sway bar links, bump stop extensions, upper control arm mount brackets, the rear block and U-bolt kit, and ES3000 front and rear shocks.

SKU: EXPK5056B Category:

Specification

Shipping weight 101.60 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1986–1995DLX, SR5
Toyota Pickup1986–1995Base, Base Turbo, DLX, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K5056B fit a 1986 Pickup?

Yes. The 1986 through 1995 Toyota Pickup is in the list for this kit, in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions. Confirm the body style and trim before ordering.

Is the K5056B a Stage 1 kit?

Yes. The product name and specifications table both list it as a 4-inch Stage 1 kit, which differs from the Stage 2 version in this family in its front bump stop and bracket package.

What shocks are in the kit?

The kit includes ES3000 front and rear shocks alongside the spacers and crossmembers. The ES3000 units are the only shock package named for this version.

Can a Stage 1 kit be upgraded to more lift later?

Often yes, but it depends on the parts already fitted. Some Stage 1 pieces, such as spacers and crossmembers, may be reused, while others may need replacing. Plan the upgrade with the full front and rear geometry in mind and recheck the alignment after any change.
