Overview
The Pro Comp K4036B is an 8-inch stage 1 coil spring lift with radius arms and ES9000 front and rear shocks. Its fit covers 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks, Harley-Davidson Edition and related trims included.
The front uses coil springs with radius arms, along with front sway bar links, bump stop extensions and brake line extension brackets. A pitman arm corrects the steering, and the rear uses springs and U-bolts. The lift height range is 7 inches and up.
Key features
- 8-inch lift, stage 1
- Front coil springs with radius arms
- Front sway bar links and bump stop extensions
- Pitman arm steering correction
- Brake line extension brackets
- Rear springs and U-bolts
Choosing a lift height
Choosing a lift height is mostly about how the truck will be used. A taller setup gives more tire room and a higher approach over obstacles, but it also changes braking distance, steering effort and the way the body leans in turns. Radius arms and coil springs keep the axle controlled, and a steady, deliberate driving style helps offset the taller stance on pavement.
Lift kits seldom stand alone. Brake lines, driveshaft angles and the steering linkage all shift with height, so mechanical checks belong after the installation as well as during it. Shock length, bump stop position and tire pressure should be rechecked after the first week of driving, and any clunks or uneven tire wear warrant a closer look at the joints.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4036B |
| UPC | 614901124729 |
| Lift | 8 inches, stage 1 |
| Lift height range | 7 inches and up |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Springs and U-bolts |
| Steering correction | Pitman arm |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
Vehicle fitment
Compatible trucks are 2005–2007 Ford F-250 Super Duty and F-350 Super Duty models, Harley-Davidson Edition and related trims included. Years outside 2005–2007 are not covered by this fit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An 8-inch lift with radius arms changes the front geometry substantially, so the alignment, caster and steering centering should be checked after installation. Check the rear driveline angles once the springs and U-bolts are in place.
What’s included

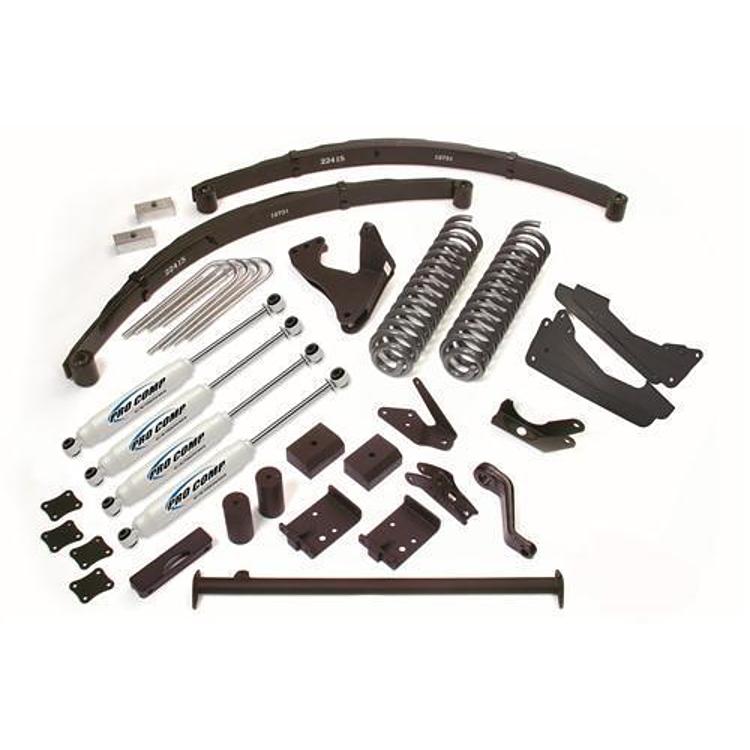

The kit includes front coil springs, radius arms, front sway bar links, bump stop extensions, brake line extension brackets, a pitman arm, rear springs and U-bolts, and ES9000 front and rear shocks.
