Overview
The Pro Comp 2.5 Inch Stage I Lift Kit with ES3000 Shocks, part number K1124, is a 2.5-inch leaf spring lift with a block and U-bolt kit at the rear. ES3000 shocks are fitted at the front and rear, and the kit is sold as a direct fit.
No steering correction is needed, and the kit includes brake line extension brackets. The maximum tire size is 33, and shock boots are not included.
Key features
- 2.5-inch stage 1 lift
- Front leaf springs and U-bolts
- Steering correction not needed
- Brake line extension brackets
- Rear block and U-bolt kit
- ES3000 front and rear shocks
Leaf spring lift ride height
A 2.5-inch leaf spring lift raises the front end through the springs and U-bolts, which changes both ride height and front suspension angles. Once the springs are in, the front end should be checked for alignment and for even clearance between the tires and fenders. Leaf springs can sag over time, so ride height should be rechecked periodically.
The rear block and U-bolt kit lifts the axle, which can change driveline angles and shift the rear springs slightly. Brake line brackets protect the hoses from new geometry, and they should be inspected at the same time. ES3000 shocks at the front and rear should be checked for leaks, mount wear and rebound control after any lift.
- Recheck tire clearance after the first drives
- Inspect brake line brackets for rubbing
- Check driveline angles after the rear block install
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1124 |
| UPC | 614901122565 |
| Lift height | 2.5 inches, stage 1 |
| Front suspension | Leaf springs and U-bolts |
| Steering correction | Not needed |
| Rear lift | Block and U-bolt kit |
| Shocks | ES3000, front and rear (shock boots not included) |
| Maximum tire size | 33 |
| Fitment | Direct fit |
Vehicle fitment
Verify your truck’s year, model and trim against the kit before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A leaf spring front lift changes ride height, so check the front alignment and the brake line brackets after installation.
What’s included

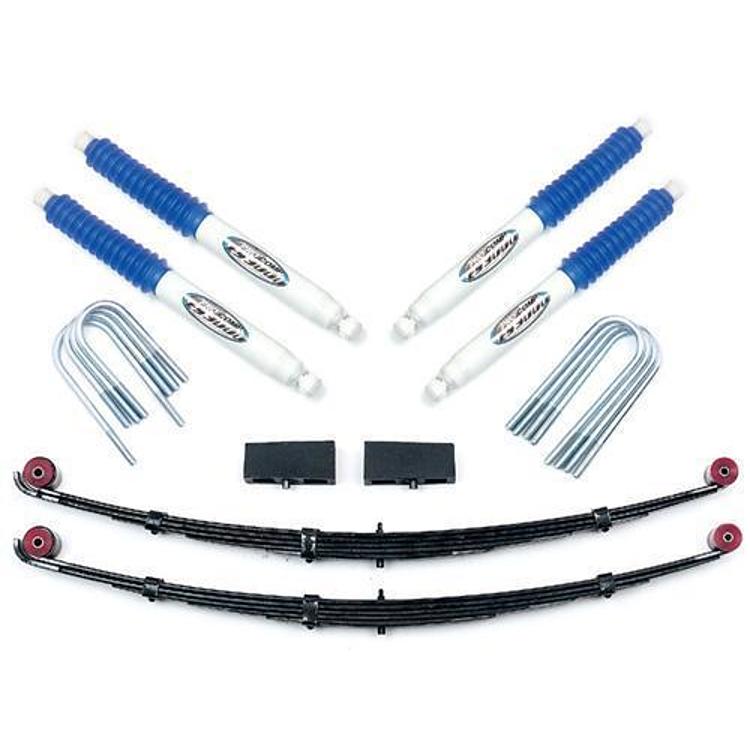

The kit includes front leaf springs and U-bolts, brake line extension brackets, a rear block and U-bolt kit, and ES3000 shocks. Shock boots are not included.
