Overview
The Pro Comp K4104B is a 6-inch stage 1 coil spring lift with ES3000 front and rear shocks. It is designed for 1990–1996 Ford F-150 trucks, and the lift height range is 5 to 6.99 inches.
The front uses coil springs with radius arm brackets and I beam brackets. The rear is raised with a block and U-bolt kit. A pitman arm corrects the steering, and extended length SS brake lines are included. The shock boots are not included.
Key features
- 6-inch lift, stage 1
- Front coil springs with radius arm brackets
- I beam brackets
- Pitman arm steering correction
- Extended length SS brake lines
- Rear block and U-bolt lift
Front bracket and steering notes
I beam brackets and radius arm brackets together set the front geometry, so any change to one changes caster and the way the axle tracks. Before driving, confirm the bracket bolts are tightened correctly and that the springs sit square on their seats. Front end noise such as creaking often starts at these mounts, so listen for it during early service.
Stainless steel brake lines resist corrosion better than standard steel, which helps on trucks that see road salt or wet trails. Extended length lines still need routing checks at the new height, and the pitman arm should be inspected for play whenever the steering is adjusted. Keep the tie rods and drag link in good condition, since they carry the load the new geometry puts on the steering.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4104B |
| UPC | 614901125313 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arm and I beam brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Brake lines | Extended length SS |
| Shock boots | Not included |
Vehicle fitment
It fits 1990–1996 Ford F-150 trucks only. Verify year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arm and I beam brackets change the front geometry, so the alignment should be set after installation. The rear block and U-bolt lift changes the driveline angles, so check those as well.

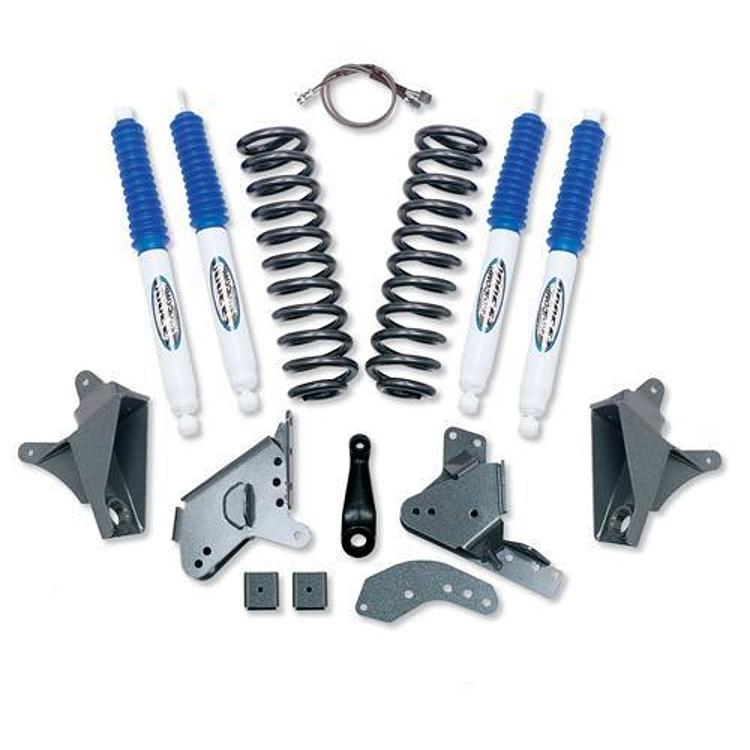

What’s included
The kit includes front coil springs, radius arm brackets, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
