Pro Comp 5.5 Inch Lift Kit with ES3000 Shocks – K5078B

Pro Comp Suspension

Shop Toyota FJ Cruiser Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • The 5.5-inch Stage 1 kit is made for the 2010–2014 Toyota FJ Cruiser Base
  • Crossmembers, compression struts and a rear track bar relocation bracket
  • Weld-on steering stop extensions and front brake line extensions
  • Rear ES9000 series shock absorbers with rear coil springs and upper control arms

Description

Overview

The Pro Comp K5078B is a 5.5-inch Stage 1 lift kit for the 2010–2014 Toyota FJ Cruiser Base, in 2WD and 4WD. It is a complete front and rear package with crossmembers, compression struts and mounts, rear upper control arms and rear coil springs, plus rear ES9000 series shock absorbers.

The kit uses weld-on knuckle and front control arm steering stop extensions, so installation requires welding. Tire sizes up to 35 x 12.50R18-20 are suited to 18 to 20 inch wheels.

Key features

  • 5.5-inch lift height from a Stage 1 kit
  • Crossmembers and differential spacers and mounts
  • Compression struts and mounts
  • Weld-on knuckle and control arm steering stop extensions
  • Rear upper control arms, rear coil springs and rear track bar relocation bracket
  • Rear ES9000 series shock absorbers

Before you weld the steering stops

Weld-on steering stop extensions are a permanent change, so plan the install in a shop or a space with proper welding gear. Clean the mating surfaces to bare metal, and check the fit of the knuckle and control arm extensions before the final weld. A test fit with the wheels off makes it easier to see clearance. Heat can warp nearby parts, so protect wiring and rubber components during the work.

Once the lift is in, the front and rear geometry changes, so the driveline and brake lines need a close look. Brake line extensions should clear the components at full travel, and the sway bar drops should not bind. Expect the steering to feel different until the alignment is set.

  • Mark the stop positions before welding
  • Confirm brake line clearance through full suspension travel
  • Recheck weld joints after the first off-road trip

Specifications

Brand Pro Comp Suspension
Part number K5078B
UPC 70000524373
Lift height 5.5 inch
Lift kit stage Stage 1
Suspension type Knuckle
Rear lift Coil springs
Rear shocks ES9000 series
Front shocks Re-use OEM
Maximum tire size 35×12.50R18-20, 305/70R18, 325/65R18, 295/60R20
Wheel size 18 to 20 inch by 9 inch wide, 4.5 to 5 inch backspacing

Vehicle fitment

The kit is made for the 2010–2014 Toyota FJ Cruiser Base, in 2WD and 4WD versions.

The list covers the 2010 through 2014 model years, so the 2009 and earlier FJ Cruisers and the trucks from 2015 onward are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The steering stop extensions are weld-on parts, so the install requires welding, and the OEM wheels will not fit with this lift. Have the alignment checked after installation and confirm the brake line extensions clear the components at full travel.

What’s included

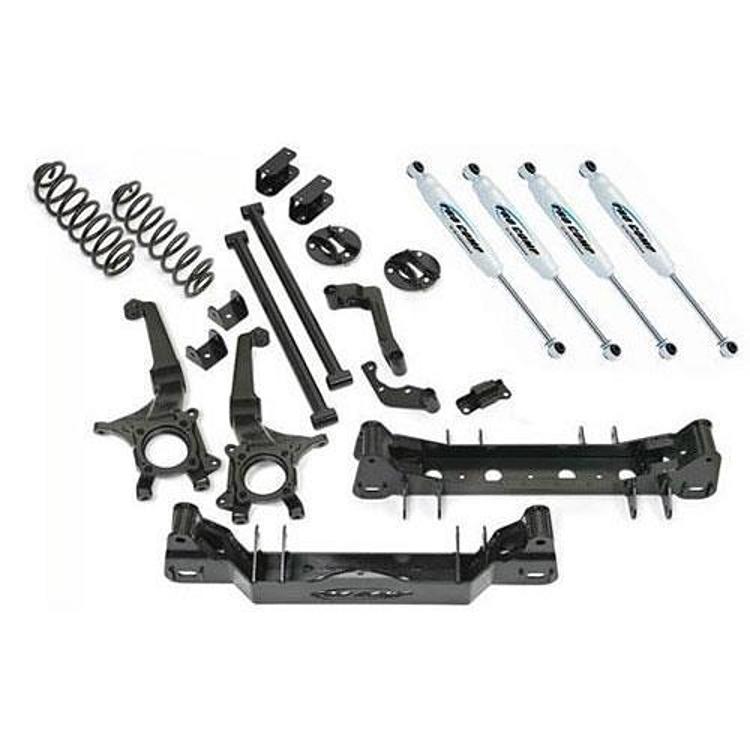

The kit includes crossmembers, front bump stops, differential spacers and mounts, weld-on knuckle and control arm steering stop extensions, front brake line extensions, compression struts and mounts, sway bar drop brackets, a rear driveshaft spacer, rear bump stops, rear sway bar end links, a rear track bar relocation bracket, rear upper control arms, rear coil springs, and rear ES9000 series shock absorbers.

SKU: EXPK5078B Category:

Specification

Shipping weight 217.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Toyota FJ Cruiser2010–2014Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5078B fit a 2014 FJ Cruiser?

Yes. It is made for the 2010 through 2014 Toyota FJ Cruiser Base in 2WD and 4WD versions, so a 2014 model falls within those years.

Will my factory wheels fit after this lift?

Factory wheels will not fit after this lift. Plan on a wheel and tire package in the 18 to 20 inch by 9 inch wide sizes.

Does the kit need welding?

Yes. The knuckle and front control arm steering stop extensions are weld-on parts, so welding is part of the install.

Do weld-on steering stops need inspection after off-road use?

Yes. Check the welds on the knuckle and control arm extensions for cracks after rough trails. Look for stress lines, loose mounts and rubbing near the brake lines, and address any problem before the next drive.
