Pro Comp 6.0″ Radius Arm Lift Kit with PRO-X Shocks – K2186T

Pro Comp Suspension

Shop Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2013–2018 Ram 3500.
  • 6.0-inch radius arm lift with a 6–7 inch lift height range
  • PRO-X front shocks and Performance rear shocks
  • Brake line extensions and longer bump stops included
  • Part number EXPK2186T (K2186T)

Description

Overview

The Pro Comp EXPK2186T, also written K2186T, is a 6.0-inch radius arm lift kit for the 2013–2018 Ram 3500. It has PRO-X front shocks and Performance rear shocks, and it is a direct fit for that truck.

The rear lift is a block and spacer with a U-bolt. Radius arms hold the axle in position at the raised height, so the kit is built as a full arm system instead of a spring-only lift. The specifications list the front on PRO-X shocks and the rear on Performance shocks, which is the main spec difference from the K2185T and K2187T, both of which use PRO-X at the rear.

Key features

  • 6.0-inch radius arm lift with a 6–7 inch lift height range
  • Cast and CNC-machined knuckles, per Pro Comp’s description
  • Laser-cut, CNC-formed and robotically welded cross members
  • Brake line extensions, longer bump stops and sway bar drop brackets

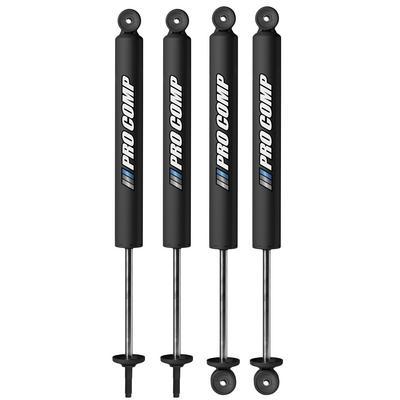

  • PRO-X front shocks and Performance rear shocks

Shock length and geometry

Mixed shock brands on the front and rear are common in lift setups, so it helps to compare the extended and compressed lengths against the new ride height before installing. A shock that is too short can bottom out on the bump stops, while one that is too long can limit the suspension’s droop.

After the install, check shock action in both directions and look for leaks at the seals. Alignment and driveline angles should also be rechecked, since the radius arms and the block at the rear change the axle’s relationship to the frame. Recheck tire clearance at full steering lock.

Keep a spare set of fasteners and a torque wrench handy when the lift is new, since the first few drives often reveal bolts that need a second tightening.

Specifications

Brand Pro Comp Suspension
Part number EXPK2186T (K2186T)
Kit type Radius arm lift kit
Kit stage Stage 2
Lift height 6 inches, with a lift height range of 6–7 inches
Front shocks PRO-X
Rear shocks Performance shocks
Rear lift method Block and spacer
Rear lift component Block and U-bolt
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 2013–2018 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman trims.

Only the 2013–2018 Ram 3500 is listed. The Ram 2500 and the 2019 and newer Ram trucks are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

With the front on PRO-X shocks and the rear on Performance shocks, check shock length against the new ride height after the install. Alignment and driveline angles should be rechecked as well.

What’s included

PRO-X front shocks, Performance rear shocks, the radius arm components, and the brake line extensions and bump stops are included. Check the package contents against your installation before starting.

SKU: EXPK2186T Categories: ,

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK2186T fit a 2014 Ram 3500?

Yes. The 2013–2018 Ram 3500 is covered, which includes 2014 trucks. The 2500 series is not covered, so match the 3500 range.

What shocks come with this kit?

PRO-X shocks go at the front and Performance shocks at the rear. The rear lift uses a block and U-bolt, so confirm the shock lengths match your ride height before ordering.

Does the kit come with brake line extensions?

Pro Comp describes brake line extensions as part of the kit, along with longer bump stops and sway bar drop brackets.

What happens if the shocks are not matched to the new height?

A shock that is too short can bottom out, and one that is too long can limit droop and make the ride feel harsh. Measure the extended and compressed lengths against the new ride height and replace any that do not allow full travel.
