Pro Comp 4 Inch Lift Kit with ES9000 Shocks – K2089B

Pro Comp Suspension

Shop Ram 3500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch radius arm lift for Ram 3500 trucks
  • Coil springs with radius arm drop brackets at the front
  • Pitman arm steering correction and ES9000 shocks
  • Fits 2013-2018 Ram 3500 trucks

Description

Overview

The Pro Comp 4 Inch Lift Kit with ES9000 Shocks, part number K2089B, is a 4-inch stage 1 radius arm lift for 2013-2018 Ram 3500 trucks. The front uses coil springs with radius arm drop brackets, and the rear uses lift blocks and U-bolts. The lift height range is 3 to 4.99 inches.

The kit includes a pitman arm for steering correction, front sway bar links, bump stop extensions and brake line extension brackets. ES9000 shocks are included with the kit. Confirm the front shock setup before installing.

Key features

  • 4-inch stage 1 lift
  • Radius arm suspension type
  • Coil springs with radius arm drop brackets
  • Pitman arm steering correction
  • Front sway bar links and bump stop extensions
  • Brake line extension brackets
  • Rear lift blocks and U-bolts

Radius arm basics

A radius arm suspension locates the front axle with long arms that carry braking and acceleration loads, so the arm bushings and mounts see more stress than in a standard coil spring setup. Bushing condition is an important check on a lifted truck. Pairing the arms with coil springs keeps the front ride controlled, while the drop brackets set the height and angle.

Pitman arms and tie rod ends work the steering, and wear in those joints shows up as play at the wheel or a wandering truck on the highway. Sway bar links and bump stop extensions are often replaced alongside the arms because they affect how the front end moves at full travel. After installation, have the alignment and steering checked before the truck sees heavy use.

  • Inspect arm bushings every few oil changes
  • Check tie rod ends for play
  • Look for uneven front tire wear

Specifications

Brand Pro Comp Suspension
Part number K2089B
UPC 700006823701
Lift height 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Radius arm or radius arm brackets
Front lift Coil springs and radius arm drop brackets
Steering correction Pitman arm
Rear lift Lift blocks and U-bolts
Shocks ES9000, included
Fitment Direct fit

Vehicle fitment

Fitment covers the 2013-2018 Ram 3500 in the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST and Tradesman versions.

Ram 2500 and 1500 trucks, and 2012 and earlier or 2019 and later Ram 3500 models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A radius arm front end changes alignment and steering geometry, so have the alignment and steering checked after installation.

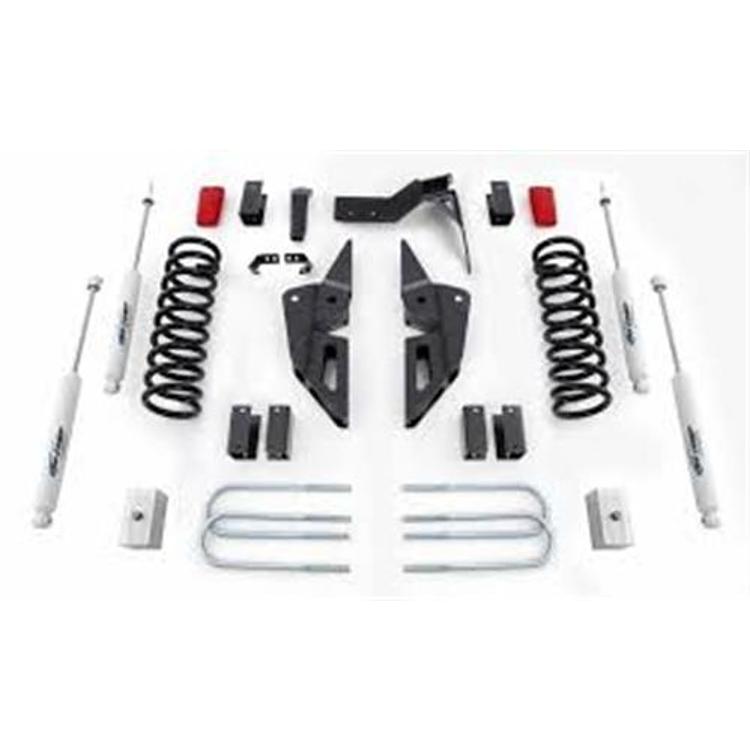

What’s included

Front coil springs and radius arm drop brackets come with the kit, along with front sway bar links, bump stop extensions, a pitman arm steering correction, brake line extension brackets and rear lift blocks with U-bolts. ES9000 shocks are included.

SKU: EXPK2089B Category:

Specification

Shipping weight 221.70 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Fitment

VehicleYearsTrims
Ram 35002013–2018Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K2089B fit a 2015 Ram 3500?

Yes. The kit fits 2015 Ram 3500 trucks, which falls within the 2013-2018 range. The covered trims are shown in the fitment section.

Does the K2089B need a steering correction?

Yes. A pitman arm is the steering correction for this kit. The brake line extension brackets are part of the kit as well.

What lift height does the K2089B give?

It is a 4-inch stage 1 lift, with a lift height range of 3 to 4.99 inches. The kit is a radius arm design for the Ram 3500.

How do I tell if the radius arm bushings are worn?

Look for cracked or torn rubber, play when the arm is pushed or pulled by hand, and clunking over bumps. Uneven tire wear and a loose steering feel can also point to worn bushings. Replace worn bushings before alignment is set.
