Overview
The Pro Comp K3062B is a 4-inch stage 1 leaf spring lift for the 1987–1995 Jeep Wrangler (YJ). It is made for Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. It is intended for vehicles with power steering only.
The front uses leaf springs with sway bar links, bump stop extensions and brake line extension brackets, and the rear uses springs and U-bolts. ES3000 shocks are fitted at both ends, and the maximum tire size is 33×12.50 on 15 to 20-inch wheels. The lift height range is 3 to 4.99 inches.
Key features
- 4-inch lift, stage 1
- Front leaf springs with sway bar links
- Bump stop extensions
- Brake line extension brackets
- Rear springs with U-bolts
- ES3000 front and rear shocks
Steering and driveline on a YJ
A YJ with power steering relies on the steering box, drag link and tie rods to keep the front tracking straight. A leaf spring lift raises the front and changes the steering angles, so these parts should be checked for play after installation. Worn tie rod ends make any lift feel less stable at speed.
The driveline also needs attention. A raised rear changes the pinion angle, which can cause vibration if it is not set correctly. Brake lines and the fuel line should be reviewed at the same time, since the new height changes how they run along the frame.
- Check steering box and drag link for play
- Inspect tie rod ends at each service
- Look for driveline vibration after the lift is set
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3062B |
| UPC | 614901123104 |
| Lift | 4 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | Springs and U-bolts |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Steering | Vehicles with power steering only |
| Max tire size | 33×12.50 |
| Wheel size range | 15 to 20 inches |
Vehicle fitment
It fits 1987–1995 Jeep Wrangler (YJ) models in the trims named above. The TJ, which began in 1997, and later Wrangler generations are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 4-inch leaf spring lift changes the rear pinion angle, so check the driveline angles and the front alignment after installation. Because the kit is for power steering vehicles only, confirm the steering system on your truck before fitting the parts.

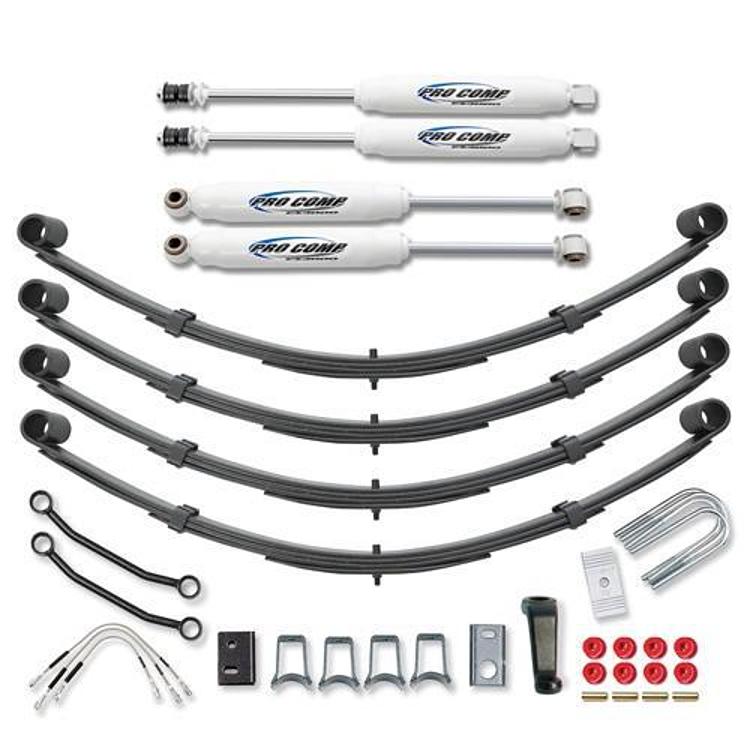

What’s included
The kit includes front leaf springs, front sway bar links, bump stop extensions, brake line extension brackets, rear springs with U-bolts, and ES3000 front and rear shocks.
