Overview
The Pro Comp K3056B is a 4-inch stage 1 suspension lift with coil springs at both the front and the rear. It is built around tubular lower control arms and ES3000 shocks at each end, with a lift height range of 3 to 4.99 inches. Confirm fit for your vehicle’s year, model and trim before ordering.
The coil spring and short arm layout is the core of the kit. Front sway bar links and bump stop extensions are included to limit suspension travel and keep the front linkage in place once the truck is raised. The listed wheel size range is 15 to 20 inches, with a maximum tire size of 33×12.50.
Key features

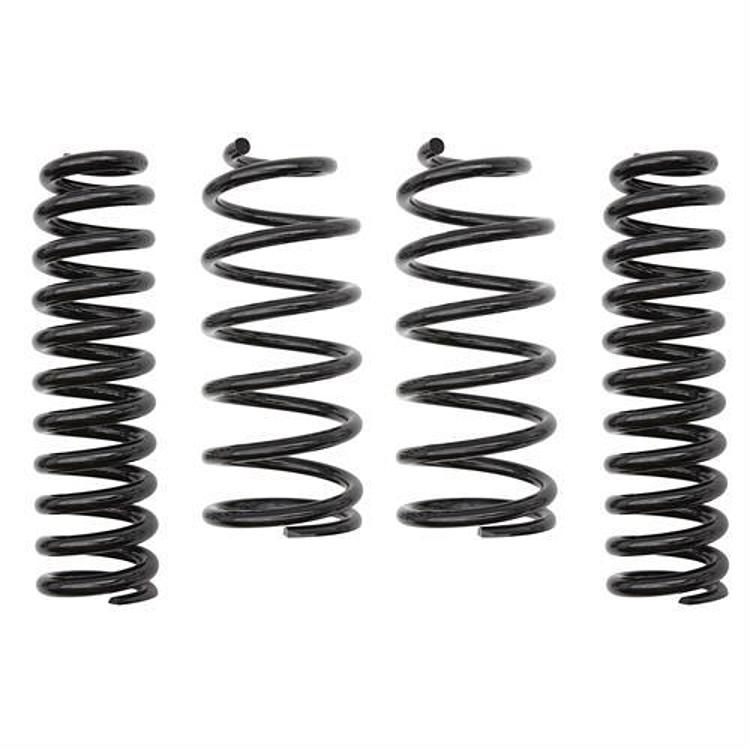

- Coil springs at the front and rear

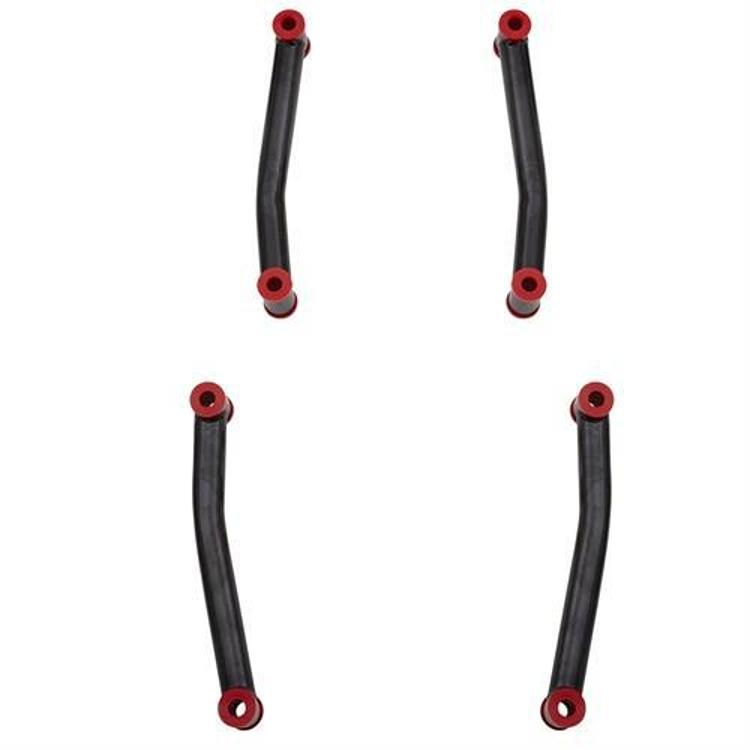

- Tubular lower control arms

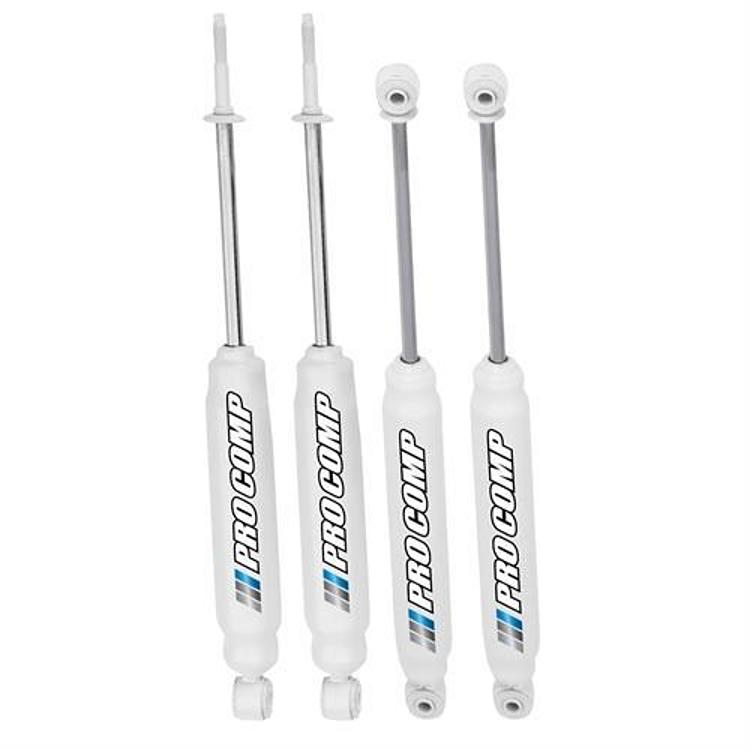

- Front and rear ES3000 shocks
- Front sway bar links and bump stop extensions
- Maximum tire size 33×12.50, wheel size range 15 to 20 inches
Setting up the arms
Tubular lower control arms replace the stock arms and set the front geometry at the new height. Once installed, the caster, pinion angle and steering stops all need attention, and an alignment shop can confirm the settings. Bushings and mounting points should be checked for free movement before the truck sees a trail.
Sway bar links and bump stop extensions work together to control travel at the front. Look for binding at full articulation and make sure the links clear the arms and brake lines. A coil spring kit of this height also puts more load on the ball joints, so inspect them periodically.
- Inspect control arm bushings at each oil change
- Check sway bar link clearance at full steering lock
- Look for cracked or torn bump stops after rough trail use
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3056B |
| UPC | 614901123005 |
| Lift | 4 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring and short arm |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Max tire size | 33×12.50 |
| Wheel size range | 15 to 20 inches |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Compare the 33×12.50 maximum tire size and the 15 to 20-inch wheel range with your truck before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 4-inch coil spring kit with replacement lower control arms changes the front alignment and the driveline angles, so plan an alignment after installation. Check the arm fit and the sway bar link clearance while the parts are being installed.
What’s included

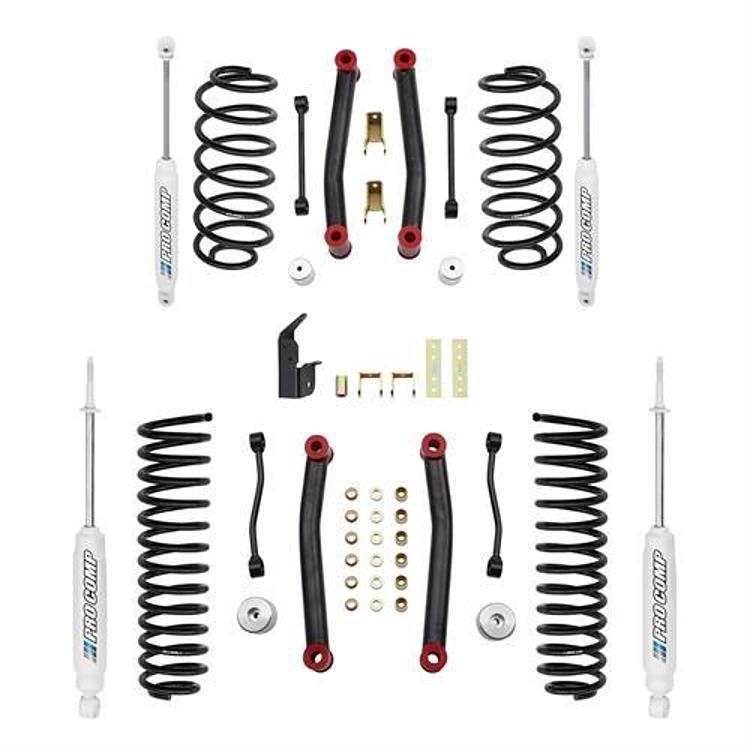

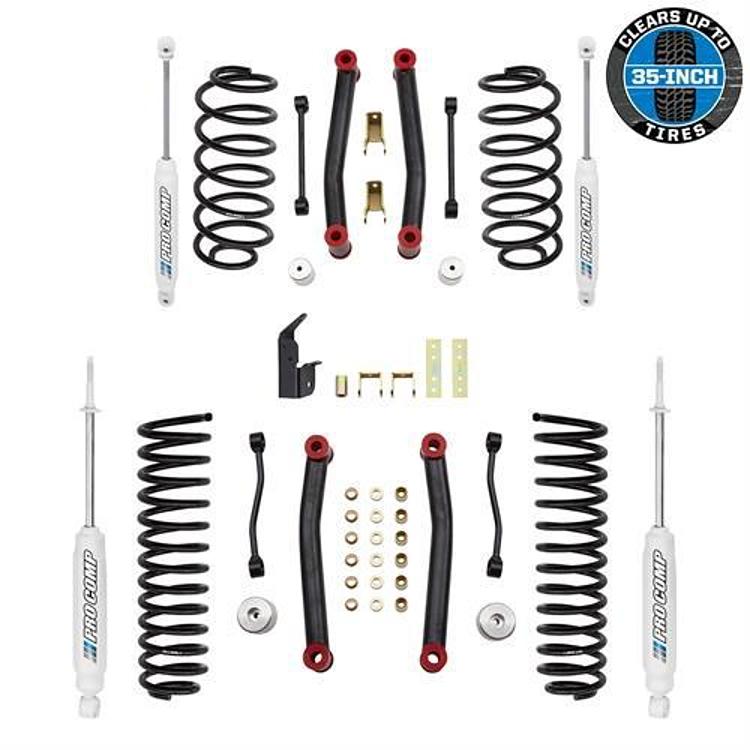

The kit includes front coil springs, rear coil springs, tubular lower control arms, front sway bar links, bump stop extensions, and front and rear ES3000 shocks.
