Pro Comp 4″ Lift Kit with PRO-X Shocks – K5054T

Pro Comp Suspension

Shop Toyota Pickup Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1986 to 1995 Toyota 4Runner and Pickup models
  • 4-inch stage 1 lift with PRO-X front and rear shocks
  • Block and U-bolt rear lift
  • Lift height range of 4 to 5.5 inches

Description

Overview

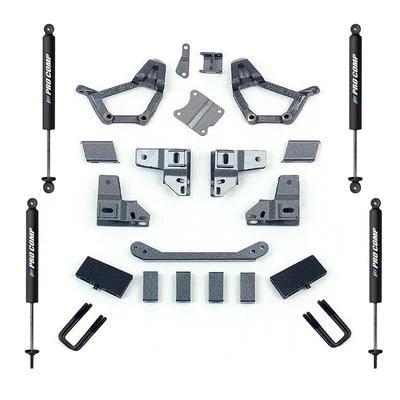

The Pro Comp 4-inch Lift Kit with PRO-X Shocks, part number EXPK5054T (kit K5054T), is a stage 1 suspension lift for 1986 to 1995 Toyota 4Runner and Toyota Pickup models. It fits the 4Runner in the DLX and SR5 versions and the Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions.

The kit is listed at 4 inches of stage 1 lift, with a lift height range of 4 to 5.5 inches. At the rear, a block or spacer setup with a block and U-bolt component does the lifting. PRO-X shocks are listed at the front and the rear, and they are included.

Key features

  • 4-inch stage 1 suspension lift

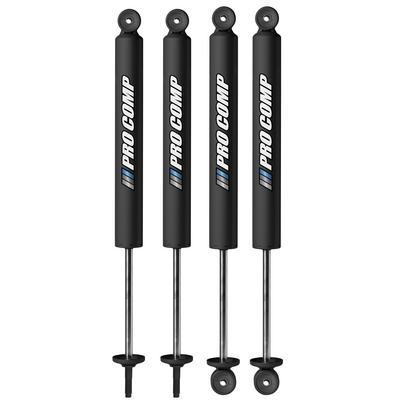

  • PRO-X shocks at the front and rear, included
  • Block and U-bolt rear lift
  • Lift height range of 4 to 5.5 inches

Choosing a lift height

A lift kit raises the body above the axles, which gives tires more room and changes how the truck sits at both ends. A taller stance also moves the center of gravity higher, so body roll in corners and wind sensitivity on the highway may increase. Off the road, the extra height helps with ground clearance on uneven trails, but the gain is only useful when the tires, gearing and driveline match the new height.

When choosing a setup, think about the height you actually need, the tire diameter you plan to run, and whether the rest of the suspension will keep up. Rear blocks change pinion angle, so the driveshaft is a common concern after installation. Brake lines, sway bar links and steering components are often checked or replaced during the same job.

  • Recheck brake line length after the lift
  • Inspect U-bolts and block bolts after the first drives
  • Look for driveshaft vibration at highway speed

Specifications

Brand Pro Comp Suspension
Part number EXPK5054T
Kit code K5054T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Shocks included Yes
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

It fits the 1986 to 1995 Toyota 4Runner in the DLX and SR5 versions, and the 1986 to 1995 Toyota Pickup in the Base, Base Turbo, DLX, SR5 and SR5 Turbo versions.

The list does not include 1985 and earlier models or 1996 and newer 4Runner and Pickup models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear block and U-bolt setup changes the rear ride height, so measure both ends after installation and have the alignment checked.

What’s included

A 4-inch stage 1 lift kit, including PRO-X shocks at the front and rear.

SKU: EXPK5054T Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner1986–1995DLX, SR5
Toyota Pickup1986–1995Base, Base Turbo, DLX, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K5054T fit a 1990 Toyota Pickup?

Yes. It fits 1986 to 1995 Toyota Pickup models, and 1990 falls within that range. Confirm the trim before ordering.

Does the Pro Comp K5054T fit a 1994 Toyota 4Runner?

Yes. The list includes the 1986 to 1995 Toyota 4Runner in the DLX and SR5 versions. Confirm the trim before ordering.

What shocks are included?

PRO-X shocks are listed at the front and the rear, and they are included with the kit. At the rear, a block or spacer setup with a block and U-bolt component does the lifting.

Do I need a driveshaft check after a rear block lift?

Yes, it is a good idea. Rear blocks change driveshaft angles, and a binding or vibrating driveshaft can damage the transfer case or the U-joints. Have the angles measured after installation and replace the shaft or add an extension if needed.
