Overview
The Pro Comp K3063 is a 2.5-inch stage 1 leaf spring lift for the Jeep CJ5, CJ7 and Scrambler. It fits 1982–1983 CJ5 models, 1982–1986 CJ7 models and 1981–1985 Scrambler models in the Base, Laredo, Limited and Renegade trims, plus the Scrambler SL and SR trims.
The front uses leaf springs and the rear uses springs with U-bolts. ES3000 front and rear shocks are included. The specifications mark the kit as a rear position part.
Key features
- 2.5-inch lift, stage 1
- Front leaf springs
- Rear springs and U-bolts
- ES3000 front and rear shocks
- Wheel size range 15 to 20 inches, width 8 to 12 inches
- Min-max backspace 3.25 to 4.5 inches
Wheel fit on older Jeeps
On a CJ, wheel width and backspace decide how a tire sits relative to the spring, brake parts and frame. Changing the spring position moves the tire, so the fit should be checked before the truck is driven on the road. Tire stack and rubbing at full steering lock are common problems after a lift.
Older Jeeps often carry worn steering and axle parts that become more noticeable at a new height. Inspect the steering linkage, U-bolts and spring hangers while the wheels are off, and set aside time for a test drive at low speed to listen for rubbing.
- Measure clearance at full lock and full compression
- Check spring U-bolts after the first drive
- Inspect steering linkage for play
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3063 |
| UPC | 614901123128 |
| Lift | 2.5 inches, stage 1 |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | Springs and U-bolts |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Position | Rear |
| Max tire size | 33×12.50 |
| Wheel size range | 15 to 20 inches |
| Wheel width range | 8 to 12 inches |
| Min-max backspace | 3.25 to 4.5 inches |
Vehicle fitment
It fits 1982–1983 Jeep CJ5, 1982–1986 Jeep CJ7 and 1981–1985 Jeep Scrambler models. Other CJ years and the later Wrangler generations are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Wheel width and backspace are part of the fit. The backspace range is 3.25 to 4.5 inches, so check the wheel offset before the tires are mounted, and confirm the axle clears the new spring position.

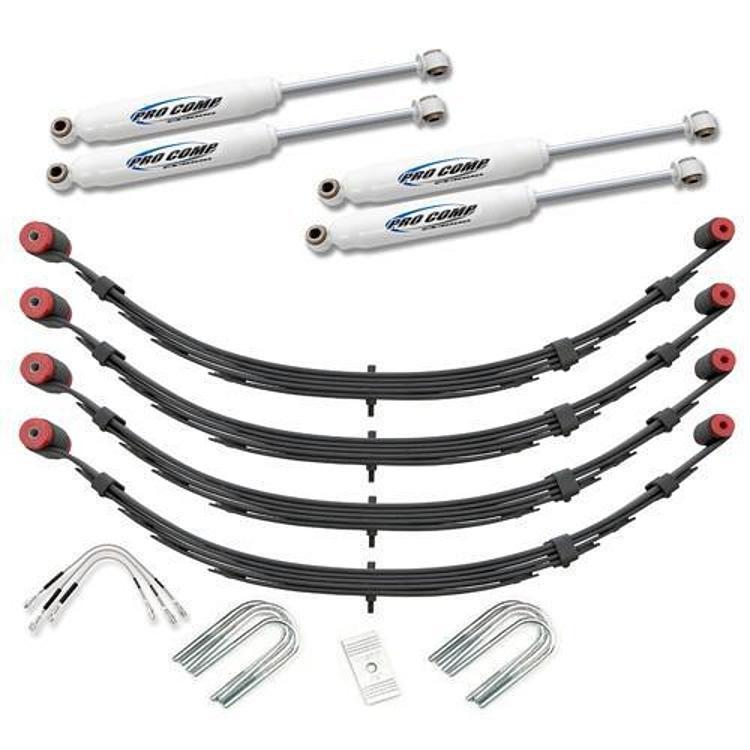

What’s included
The kit includes front leaf springs, rear springs and U-bolts, and ES3000 front and rear shocks.
