Pro Comp Stage III 4-Link 8″ Suspension Kit with ES9000 Shocks – K4214B

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stage III 4-link 8-inch kit with ES9000 shocks for Ford Super Duty
  • Fits 2017–2021 F-250 and 2017–2018, 2020–2021 F-350
  • Lift height range 8 inches and up
  • Lower arms engineered to clear 40-inch tires at full steer
  • ES9000 front and rear shocks

Description

Overview

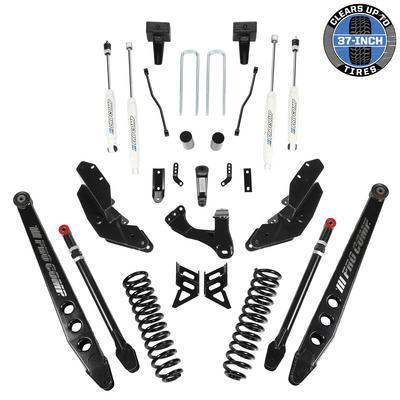

The Pro Comp K4214B is a Stage III 8-inch 4-link suspension kit with ES9000 shocks for Ford Super Duty trucks. It provides up to 8 inches of lift with a lift height range of 8 inches and up. It fits the 2017–2021 Ford F-250 Super Duty and the 2017–2018 and 2020–2021 Ford F-350 Super Duty.

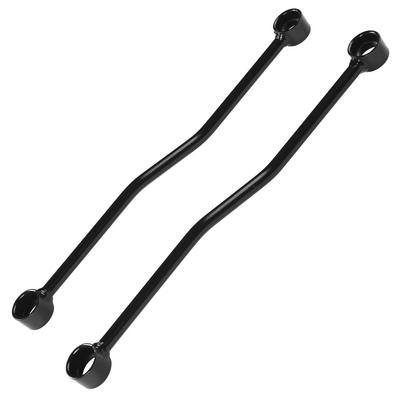

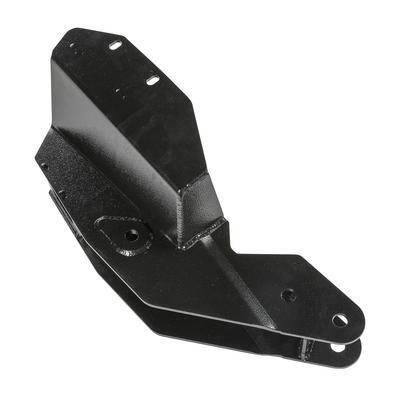

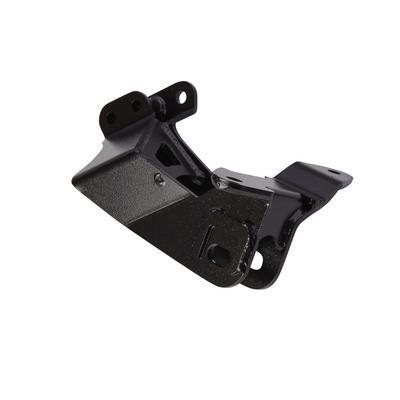

The 4-link layout uses extended-length control arms in brackets that Pro Comp says are positioned for the correct geometry. The stated aim is to hold the roll center, increase wheel travel and keep caster and pinion angle change small. The upper control arms are tubular and adjustable on the vehicle for caster.

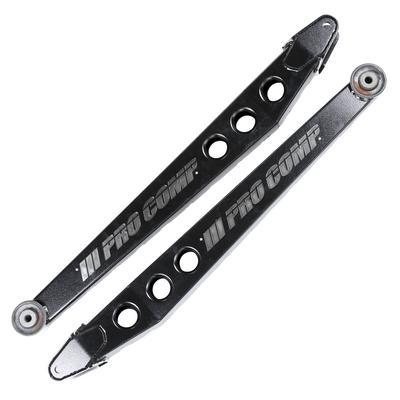

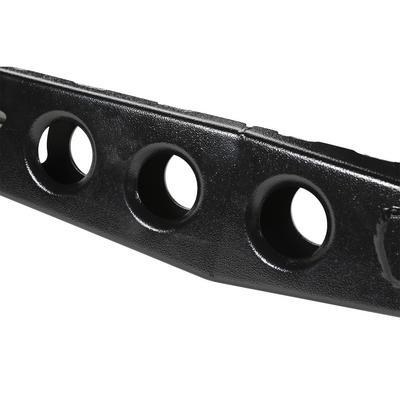

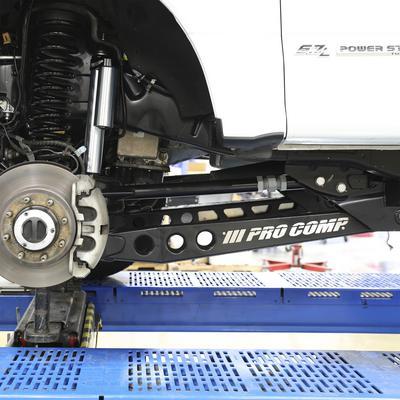

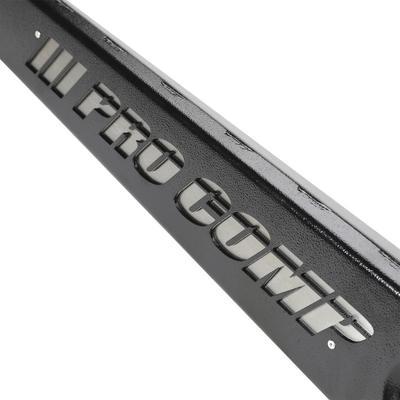

ES9000 shocks are fitted at the front and rear, and the rear lift uses a block and U-bolt component. The custom-stamped steel lower arms are engineered to clear 40-inch tires at full steer.

Key features

  • Extended-length control arms in 4-link geometry
  • Tubular upper control arms adjustable for caster
  • Transfer case crossmember between the brackets
  • Custom-stamped steel lower arms
  • ES9000 front and rear shocks

Geometry changes at 8 inches

An 8-inch 4-link lift changes the angles of the control arms, driveshaft and steering more than a modest lift does. The links are only part of the picture, since the transfer case crossmember and the brackets have to clear the chassis at full travel. Expect the truck to feel different on the road until the alignment and driveline angles have been set.

Owners of taller trucks often plan for larger tires, stronger steering components and a longer brake line. Inspect the ball joints and tie rod ends regularly, because they take the extra load. Pay attention to any vibration at highway speed, which can signal a driveline or balance issue. Keep a log of the alignment settings once the shop finishes so future service is easier.

Specifications

Brand Pro Comp Suspension
Part number K4214B
Suspension type 4-link suspension kit
Kit Stage III, 8 inches
Shock series ES9000
Front shocks ES9000
Rear shocks ES9000
Rear lift component Block and U-bolt
Lift height range 8 in and up

Vehicle fitment

It fits the 2017–2021 Ford F-250 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT trims, and the 2017–2018 and 2020–2021 Ford F-350 Super Duty in the same trims.

The 2019 F-350 Super Duty and models from 2022 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8-inch 4-link lift is a major geometry change, so it needs a professional alignment and a driveline angle check. Set the caster on the upper control arms during the alignment, and confirm the transfer case crossmember clears the brackets.

What’s included

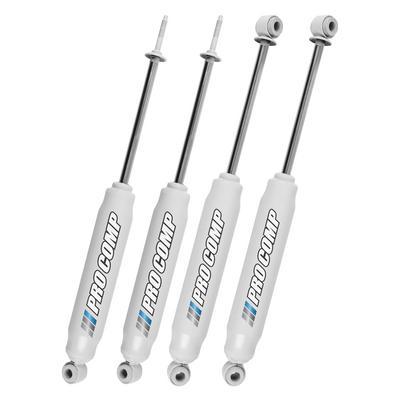

ES9000 front and rear shocks, included with the kit.

Not included: tires and wheels.

SKU: EXPK4214B Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017–2021King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2017–2018, 2020–2021King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4214B fit a 2018 Ford F-350 Super Duty?

Yes. It fits the 2017–2018 F-350 Super Duty in several trims, so a 2018 model year is covered. Match your truck's trim to the covered options before buying.

What shocks come with the K4214B?

The kit uses ES9000 shocks at the front and rear. The shocks are part of the kit, so no separate shock choice is needed for the 8-inch lift.

What lift does the K4214B give?

It provides up to 8 inches of lift, with a lift range of 8 inches and up. Compare the lift with your suspension and wheel clearance before ordering.

Does a kit this tall need a different driveshaft?

It may. A lift this height changes driveline angles, so have a shop check the driveshaft and U-joints after installation. Some trucks need a longer driveshaft or a carrier adjustment, depending on how the axle moves.
