Overview

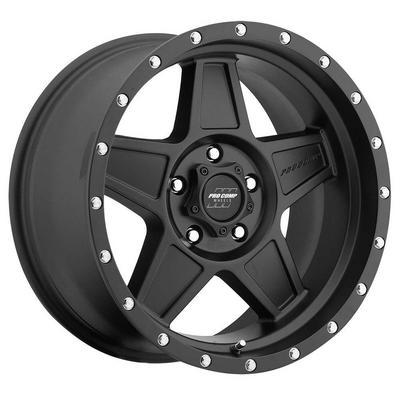

The Pro Comp 35 Series Predator 17×8.5 wheel, part number PXA5035-78573, is a 17-inch aluminum spoke wheel with an 8.5-inch width. Its bolt pattern is 5 on 5 and its finish is satin black, which the series listing names 35 Series Predator satin black.
The Predator line is one of Pro Comp’s low-pressure cast alloys for trucks and sport utility vehicles. This wheel has a large 131 center bore, a 0 offset and a backspacing of 4.75. Pro Comp classes it as universal fit, so the 131 center bore is the main measurement to confirm against your hub.
Key features
- Low-pressure cast aluminum
- 17-inch diameter, 8.5-inch width
- 5 on 5 bolt pattern
- Center bore 131
- Offset 0, backspacing 4.75
- Satin black spoke finish
Hub match and clearance
Center bore is the first measurement to settle on a wheel like this. A hub-centric wheel rests on the hub itself, so the bore should suit the hub diameter, and the lug studs mainly clamp the wheel in place. When the bore is larger than the hub, a hub-centric ring is one common fix, and the right size depends on the hub measurement rather than on the wheel alone.
Offset and backspacing decide how far the rim sits inside or outside the fender and how close it comes to the brake caliper. Tire width and sidewall height also change the overall diameter, so a new tire size should be checked against suspension parts at full steering lock before the first drive. Keep the wheel and tire combination together when comparing options.
- Measure the hub bore before buying rings or spacers
- Check caliper clearance at full steering lock
- Tighten lug nuts again after the first trail runs
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5035-78573 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 35 Series Predator |
Vehicle fitment
It is a universal fit wheel, so no specific vehicle is tied to it. Match the 5 on 5 bolt pattern and 131 center bore to your hub before ordering.
Confirm your vehicle’s year, model and trim before ordering.
The 131 center bore is larger than most hubs in this size, so a hub-centric fit depends on the vehicle’s hub diameter. Measure the hub and confirm the 0 offset and 4.75 backspacing clear the brake caliper before you mount the wheel.
What’s included
The package holds one 17×8.5 satin black wheel. Compare the package contents with your installation plan before starting work.
