Overview

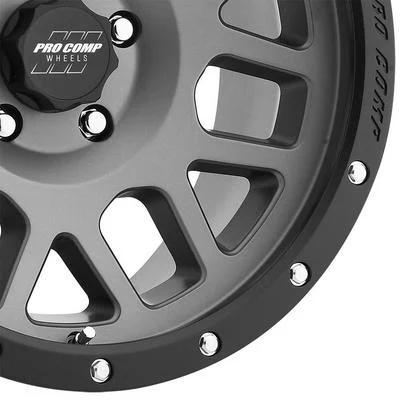

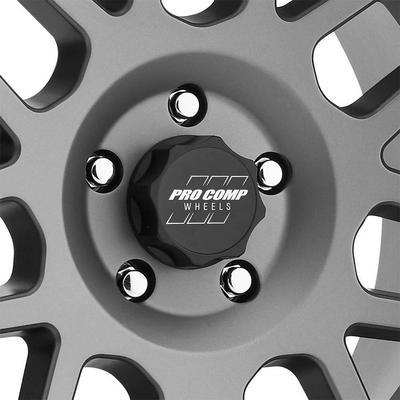

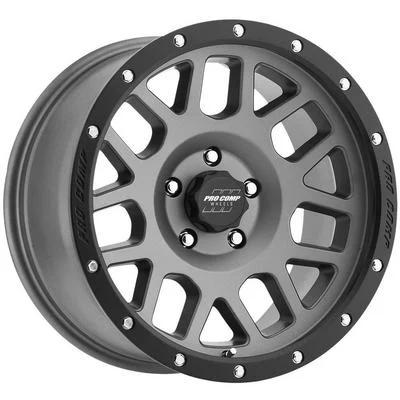

The Pro Comp 40 Series Vertigo 17×9 wheel, part number PXA2640-7973, is a 17-inch aluminum split spoke wheel with a 9-inch width. It uses a 5 on 5 bolt pattern and a 72 center bore, and the finish is gray, named in the series as 40 Series Vertigo matte graphite.
The Vertigo is built with low-pressure casting. Its -6 offset and 4.75 backspacing place the mounting face farther outward than on a zero-offset design, and the wheel is universal fit, so the hub and clearance should be checked before buying.
Key features
- Low-pressure cast aluminum
- 17-inch diameter, 9-inch width
- 5 on 5 bolt pattern
- Center bore 72
- Offset -6, backspacing 4.75
- Matte graphite split spoke finish
Caring for a gray matte finish
Matte finishes show scratches and water spots differently than gloss, so the wheel should be cleaned with gentle products. Road salt and brake dust sit on the surface, and a mild soap with a soft brush removes them without polishing the finish. Avoid waxes and sealants that add gloss, since they can make the surface look uneven.
Gray spokes with a split design hide light wear well, but chips near the rim lip are easy to miss. Inspect the lip and spoke ends after rough trail use, and touch up small chips before corrosion starts. Keep a spare tire and jack available when the wheel goes off-road, so a flat does not turn into bent spokes.
- Inspect the rim lip after rough trail runs
- Use a soft brush with a mild soap
- Touch up small chips early
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA2640-7973 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Split spoke |
| Finish | Gray, matte graphite |
| Construction | Aluminum |
| Series | 40 Series Vertigo |
Vehicle fitment
This wheel is not assigned to any make, model or year. The universal fit entry means the 5 on 5 pattern and 72 center bore should be matched to the hub, and the -6 offset checked against the fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Negative offset moves the wheel outward, so confirm fender and suspension clearance before driving. The 72 center bore must suit the hub for the wheel to seat correctly.
What’s included
The package is one 17×9 gray matte graphite wheel. Verify the package contents against your planned installation before starting.
