Overview

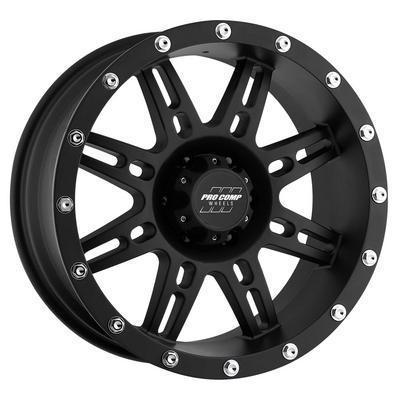

The Pro Comp PXA7031-7983 is a 17×9 split-spoke aluminum wheel in the 31 Series Stryker line, in matte black. It has a 6 on 5.5 bolt pattern, a center bore of 108, an offset of -6 and a backspacing of 4.75.
This 17-inch Stryker uses a 6 on 5.5 pattern, and its cast aluminum body is made with low-pressure casting. The -6 offset sets the face further outward than a zero-offset wheel of the same width.
The 6 on 5.5 pattern and 108 center bore must match the hub, with the -6 offset and 4.75 backspacing following. Because the offset moves the face outward, check fender clearance and brake caliper space before mounting this 9-inch wide wheel.

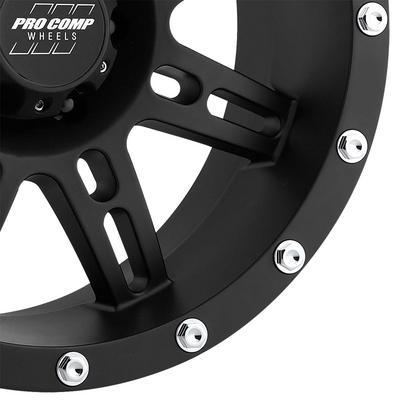

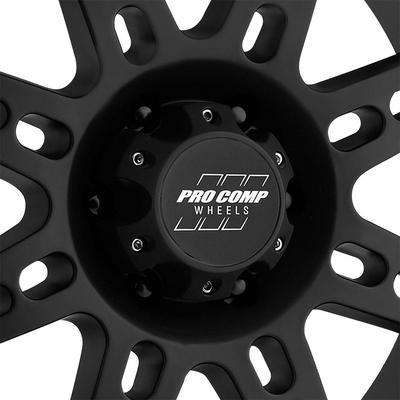

The split-spoke face is matte black and the wheel is built from cast aluminum.
Confirm the tire size and load rating before mounting, and check the fender and caliper clearance on the truck.
Key features
- Split-spoke face
- Matte black finish
- 6 on 5.5 bolt pattern
- Center bore 108
- Offset -6
Tire pressure and sensors
Many modern trucks use tire pressure monitoring sensors mounted inside the wheel. When a new wheel is fitted, the valve stem must suit the sensor and the sensor must be reset to the vehicle after the swap. Some systems need a relearn procedure, which should be followed as the vehicle requires before the truck is driven.
Tire pressure should be set to the placard value on the vehicle after mounting, not to the maximum printed on the tire sidewall. Cold checks each month help catch slow leaks around the bead, and a pressure gauge is a simple tool for that job.
- Check the valve stem type for sensors
- Set pressure to the vehicle placard
- Inspect valve stems for cracks at mounting
- Follow the vehicle’s relearn steps after the swap
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-7983 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Series | 31 Series Stryker |
Vehicle fitment
Pro Comp gives this wheel a universal fit label. Match the 6 on 5.5 bolt pattern, the 108 center bore and the -6 offset to the hub before mounting the wheel.
Pick tires for a 17-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. The package holds no center cap.
