Pro Comp 43 Series Sledge, 20x9 Wheel with 8x180 Bolt Pattern – Satin Black – 5143-2989

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 43 Series Sledge 20×9 alloy wheel, 8×180 bolt pattern, satin black finish
  • Low-pressure cast alloy construction
  • Manufacturer load rating of 2500 to 3650 lb per wheel
  • Confirm fit for your vehicle before ordering

Description

Overview

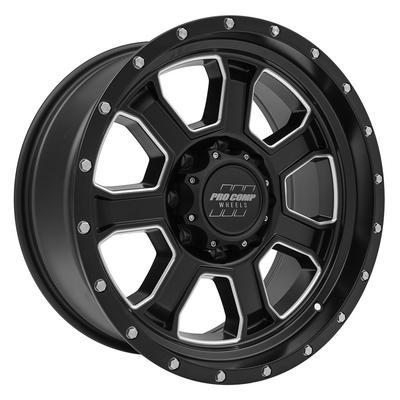

The Pro Comp 43 Series Sledge is a 20×9 alloy wheel in satin black with an 8×180 bolt pattern, from Pro Comp Alloy Wheels. The wheel is listed under part number PXA5143-2989 and is cast with low-pressure casting.

Alloys in this line carry load ratings of 2500 to 3650 lb per wheel. The wheel is not tied to a vehicle, so confirm the 8×180 bolt pattern, offset and hub bore against your vehicle before buying.

Key features

  • Low-pressure cast alloy construction
  • 20 inch diameter, 9 inch width
  • 8×180 bolt pattern
  • Satin black finish
  • The wheel carries the Pro Comp Promise warranty, which is transferable.

Matching lug seats and hub fit

Alloy wheels need a lug nut seat that matches the wheel’s hole design. Before mounting, check that the nut type fits the wheel and that the seat is clean and undamaged. A mismatched seat can loosen under load, so this check matters as much as the bolt pattern itself. Use a torque wrench set to your vehicle’s value after the first few drives, since new nuts can settle.

Hub-centric rings are often used when the hub bore is larger than the wheel’s center bore. They fill the gap so the wheel centers on the hub instead of the studs. Choose rings that match both bore sizes, avoid stacking rings, and clean the hub face and wheel mounting surface before installing.

  • Match lug nut seat type to the wheel
  • Use hub-centric rings where the bore calls for them
  • Clean mating surfaces before mounting
  • Retorque after the first few drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5143-2989
Model 43 Series Sledge
Diameter 20 in
Width 9 in
Bolt pattern 8×180
Finish Satin black
Construction Low-pressure cast alloy
Load rating 2500 to 3650 lb per wheel, per the manufacturer

Vehicle fitment

Confirm the 8×180 bolt pattern, offset and hub bore against your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One 20×9 wheel. Check the package contents against your installation before starting.

SKU: PXA5143-2989 Categories: ,

Questions & Answers

What bolt pattern is the Pro Comp 43 Series Sledge wheel?

8x180, from the product name. Confirm the pattern against your hub before ordering, and check the offset for your application.

What load rating does the Pro Comp Sledge carry?

Pro Comp rates its alloy wheels at 2500 to 3650 lb per wheel. Confirm the rating suits your vehicle's weight before buying.

What size is the Pro Comp 43 Series Sledge wheel?

20 inches in diameter and 9 inches wide, in a satin black finish. Confirm the offset and back spacing for your vehicle before ordering.

Do alloy wheels need hub-centric rings?

Only when the hub bore is larger than the wheel center bore. Rings fill the gap so the wheel centers on the hub. Confirm the bore sizes for your vehicle before buying rings.

How can I tell if the lug seats are worn?

Look for flattened, pitted or cracked seats where the nut contacts the wheel. Worn seats can let nuts loosen. Replace the nuts or the wheel if seats show damage, and do not drive until it is repaired.
