Overview
The Pro Comp 6-inch Lift Kit with PRO-M Shocks, part number EXPK1164M (kit K1164M), is a stage 1 suspension lift for 2014 to 2016 Chevrolet Silverado 1500 and GMC Sierra 1500 pickups. It fits the Silverado in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and the Sierra in the Base, Denali, SLE and SLT versions.
The specifications list a 6-inch stage 1 lift with a lift height range of 6 to 7 inches. The rear uses a block or spacer with a block and U-bolt component and add-a-leafs. PRO-M shocks are listed at the front and the rear and are included.
Key features
- 6-inch stage 1 suspension lift
- PRO-M shocks at the front and rear, included
- Block and spacer rear with U-bolts and add-a-leafs
- Lift height range of 6 to 7 inches
Rear geometry after a block lift
A block and add-a-leaf rear raises the axle, which changes the pinion angle and the driveshaft angles. Steep angles can cause vibration, and a worn u-joint can fail sooner under them. A driveshaft inspection after the first few drives is a common step, and a carrier bearing check is worth doing on older trucks.
Steering and brake lines also move when the truck is raised. Brake hoses need enough slack at full droop, and the steering stabilizer and drag link should be checked for clearance. Note any new noises, since they often point to a bushing or mount that has loosened as the new height settles.
- Inspect driveshaft u-joints
- Check brake hose slack at full droop
- Recheck U-bolt torque after initial drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | EXPK1164M |
| Kit code | K1164M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches stage 1; range 6 to 7 inches |
| Rear lift method | Block or spacer |
| Rear lift component | Block and U-bolt with add-a-leafs |
| Shocks included | Yes |

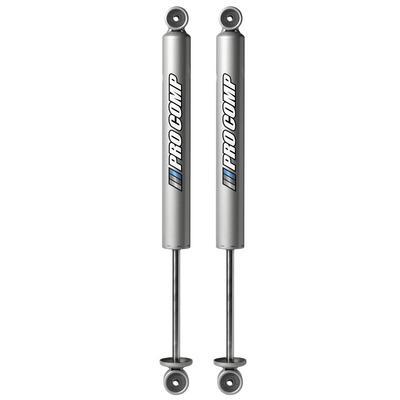

| Front shocks | PRO-M |
| Rear shocks | PRO-M |
| Fit type | Direct fit |
Vehicle fitment
It is a direct fit for the 2014 to 2016 Chevrolet Silverado 1500 in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and for the 2014 to 2016 GMC Sierra 1500 in the Base, Denali, SLE and SLT versions.
The list does not include the 2013 and earlier or 2017 and newer 1500 pickups. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6-inch lift with add-a-leafs changes the rear geometry, so the alignment and driveline angles should be checked after the install.

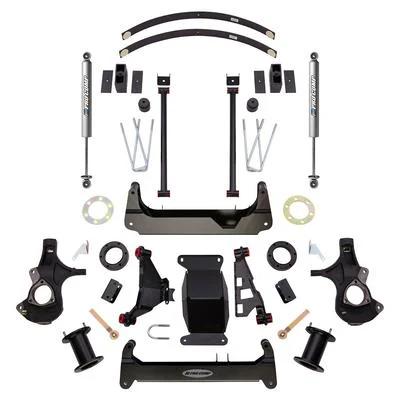

What’s included
The 6-inch stage 1 lift kit with PRO-M front and rear shocks and the block and U-bolt add-a-leaf components.
