Overview
The Pro Comp K4043B is a stage 1 lift with an 8-inch front and a 5.5-inch rear, using ES9000 front and rear shocks. It fits 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks, and the lift height range is 7 inches and up.
The front kit includes front springs and a pitman arm for steering correction. The rear uses a block and U-bolt kit with add-a-leafs. The maximum tire size is 37×12.5 inch, so choose wheel width and offset to match it.
Key features
- 8-inch front lift and 5.5-inch rear lift, stage 1
- Front kit and front springs
- Pitman arm steering correction
- Rear block and U-bolt kit with add-a-leafs
- ES9000 front and rear shocks
- Maximum tire size 37×12.5 inch
Tire fit and clearance
Tire size drives much of the planning on a stage 1 lift with different front and rear heights. A larger tire sits closer to the fender and frame at full compression, so the wheel offset and backspacing need to be chosen with the tire in mind. Rubbing often appears first on the rear of the front tire during hard turns.
Because the front and rear are raised by different amounts, the truck may sit slightly off level. Measuring ride height at all four corners after the install shows whether the rear add-a-leafs or the front springs need adjustment before the final alignment is set.
- Measure ride height at all four corners
- Check tire clearance at full lock and full compression
- Re-torque wheel fasteners after the first drive
- Recheck headlight aim after the height change
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4043B |
| UPC | 614901124903 |
| Lift | 8 inches front, 5.5 inches rear, stage 1 |
| Lift height range | 7 inches and up |
| Suspension type | Radius arm |
| Rear lift | Block, U-bolts and add-a-leaf |
| Steering correction | Pitman arm |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Max tire size | 37×12.5 inch |
Vehicle fitment
It fits 2005–2007 Ford F-250 Super Duty and F-350 Super Duty trucks.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the front and rear lifts differ, measure the ride height at all four corners after installation. The pitman arm changes the steering linkage, so check the centering as well.

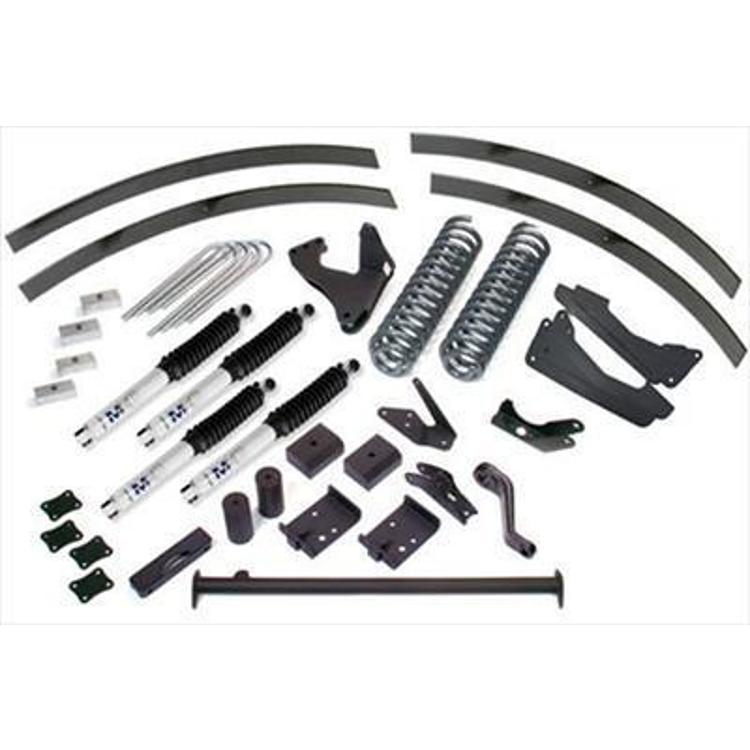

What’s included
The box includes the front kit with front springs, the pitman arm, the rear block and U-bolt kit with add-a-leafs, and ES9000 front and rear shocks.
