Pro Comp 01 Series Raven, 17x9 Wheel with 8 on 6.5 Bolt Pattern – Satin Black – 5001-7982

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 aluminum split-spoke wheel in satin black
  • 8 on 6.5 bolt pattern, center bore 131
  • Offset -6; backspacing 4.75
  • 01 Series Raven design

Description

Overview

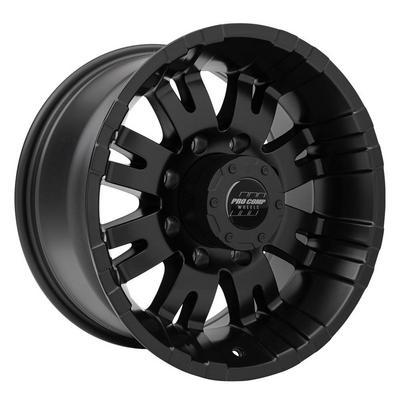

The Pro Comp PXA5001-7982 is a 17×9 satin black wheel in the 01 Series Raven line. It is an 8 on 6.5 bolt pattern wheel with a center bore of 131, an offset of -6 and a backspacing of 4.75.

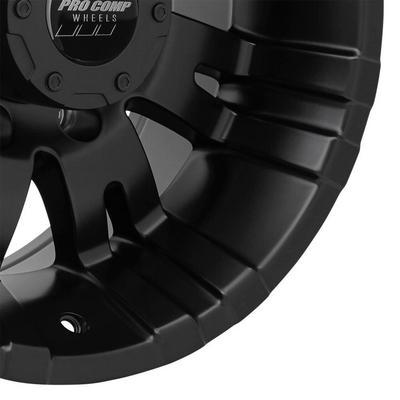

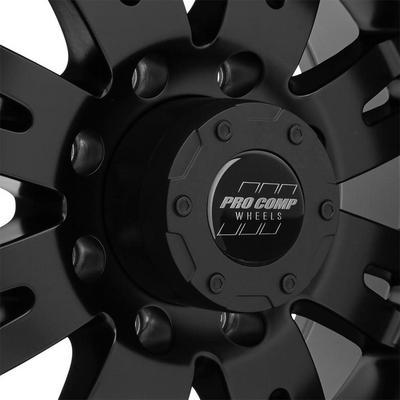

The wheel is cast aluminum with a split-spoke face and a satin black finish. Pro Comp describes its alloy wheels as built for trucks and sport utility vehicles, and this one is sized for the 8 on 6.5 pattern rather than the common 5 and 6 bolt layouts.

The 8 on 6.5 pattern is the first measurement to match, followed by the 131 center bore. The -6 offset and 4.75 backspacing set the wheel’s position relative to the hub, so check the inner and outer clearances before mounting a 17-inch tire on this 9-inch wide wheel.

The 01 Series Raven design is the one listed on this product, with a split-spoke face.

Key features

  • Split-spoke aluminum design
  • Satin black finish
  • 8 on 6.5 bolt pattern
  • Center bore 131
  • Offset -6

Eight-lug hubs and fit

An 8-lug hub spreads the clamping load across more studs than a 5- or 6-lug layout, and it is found on heavier trucks and some sport utility vehicles. The bolt pattern, center bore and offset of an 8 on 6.5 wheel must match the hub exactly, and most eight-lug wheels rely on the center bore for accurate centering. A wheel with the wrong pattern cannot be forced on safely.

Lug nut type and seat shape matter as much as the wheel. Use nuts that match the seat design of the wheel, and check that the threads engage fully without bottoming out. When a wheel is swapped, clean the hub face and remove any rust or paint before mounting, then torque in a star pattern and recheck after the first drive.

  • Confirm the lug seat type
  • Clean the hub face before mounting
  • Check torque after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5001-7982
Diameter 17 inches
Width 9 inches
Bolt pattern 8 on 6.5
Center bore 131
Offset -6
Backspacing 4.75
Style Split spoke
Finish Satin black
Construction Aluminum
Series 01 Series

Vehicle fitment

A wheel is not built for one vehicle. The 8 on 6.5 pattern is specific to certain hubs, so confirm your truck uses it along with the 131 center bore before buying.

Tire size and load rating must suit the 17×9 wheel. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Look for a center cap on the packing list when it arrives.

SKU: PXA5001-7982 Categories: ,

Questions & Answers

Will the PXA5001-7982 fit an 8 on 6.5 hub?

It is listed with an 8 on 6.5 bolt pattern, so it fits only hubs with that pattern. Confirm the bolt pattern and the 131 center bore on your truck first.

What is the center bore on this wheel?

The center bore is 131. The offset is -6 and the backspacing is 4.75, which matches the other 17x9 wheels in this 8 on 6.5 line.

Is a center cap included?

Confirm the 8 on 6.5 pattern and 131 center bore on the vehicle first, then check the packing list for any caps. The wheel is sold as one unit.

Can 8-lug wheels be swapped onto a truck with fewer lugs?

No. A different bolt pattern cannot be adapted safely by changing the nuts alone. Match the bolt pattern, center bore and seat type to the hub before any wheel is mounted, and confirm the specifics against your truck.

How often should the wheel studs be inspected?

Inspect them whenever a wheel is removed. Look for bent, stretched or damaged threads, and replace any stud that shows wear. Check the lug nuts for damage at the same time, since a worn seat can loosen even when the torque looks right.
