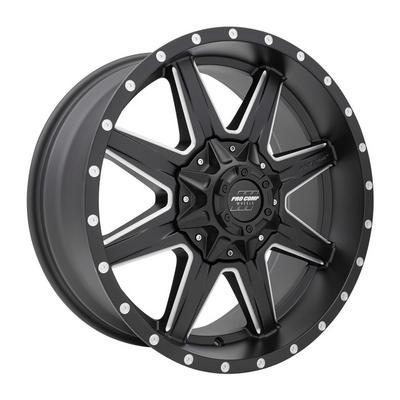

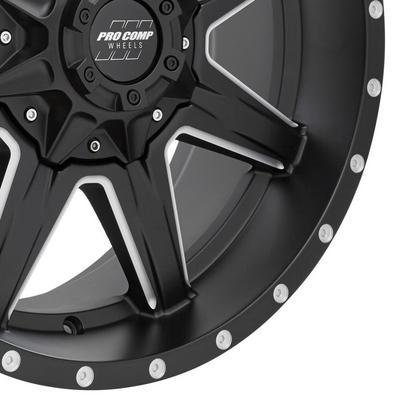

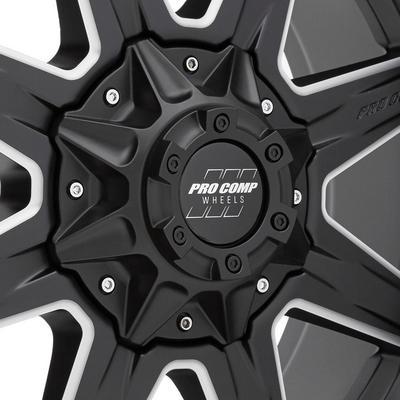

Pro Comp 48 Series Quick 8, 20x9 Wheel with 8x180 Bolt Pattern – Satin Black Milled – 5148-298950

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 48 Series Quick 8 20×9, part number PXA5148-298950
  • 8 on 180 bolt pattern, center bore 125
  • Satin black milled spoke wheel
  • Offset 0, backspacing 5

Description

Overview

The Pro Comp 48 Series Quick 8 20×9 wheel, part number PXA5148-298950, is a 20-inch aluminum spoke wheel that is 9 inches wide. Its bolt pattern is 8 on 180, the only eight-lug layout of this size in the series, and its finish is satin black milled.

The wheel carries a 125 center bore, a 0 offset and a backspacing of 5. The Quick 8 is built with low-pressure casting and rated for 2500 to 3650 lbs per wheel. It is a universal fit wheel with no vehicle named.

Key features

  • Low-pressure cast aluminum
  • 20-inch diameter and 9-inch width
  • 8 on 180 bolt pattern
  • Center bore 125
  • Offset 0 and backspacing 5
  • Satin black milled spoke finish

Eight-lug hubs and stud fit

Eight-lug wheels spread load across more studs, which suits many heavier vehicles. Stud spacing is set by the pattern, so an eight-lug wheel only seats on a matching eight-lug hub. Because eight-lug patterns differ in stud spacing, compare the exact pattern and center bore with the hub instead of relying on the lug count alone.

Stud length and seat type matter as much as the wheel. Use lug nuts that seat properly in the wheel’s holes, and check that the studs protrude enough to engage the nuts fully. Clean rust and old thread compound from the hub face before mounting, because a dirty face can allow the wheel to loosen.

  • Compare stud count and spacing with the hub
  • Clean the hub face and rotor contact surface
  • Use the correct lug seat type
  • Recheck torque after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5148-298950
Wheel diameter 20 inches
Wheel width 9 inches
Bolt pattern 8 on 180
Center bore 125
Offset 0
Backspacing 5
Load rating 2500 to 3650 lbs per wheel
Style Spoke
Finish Satin black milled
Construction Aluminum
Series 48 Series Quick 8

Vehicle fitment

No vehicle is named for this 8 on 180 wheel, and the fitment is universal. Confirm the eight-lug 180 hub and the 125 center bore before ordering, then check caliper clearance for the 20-inch size.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8 on 180 layout is different from the 8 on 170 and 8 on 6.5 versions of this wheel, so compare the hub measurement exactly before mounting.

The 8 on 180 layout is an eight-lug pattern, and the 125 center bore must seat on the hub. The 0 offset and 5 backspacing place the face at the center, so confirm caliper clearance on this 20-inch wheel.

Satin black milled is the finish, and the 9-inch width sets the tire options to check.

What’s included

One 20×9 wheel in satin black milled. Verify that lug nuts and center caps match this eight-lug hub before fitting.

SKU: PXA5148-298950 Categories: ,

Questions & Answers

Is the PXA5148-298950 an 8 on 180 wheel?

Yes. The bolt pattern is 8 on 180 with a 125 center bore. Confirm that your hub is an eight-lug 180 layout before ordering this 20x9 wheel.

What load rating does this Quick 8 carry?

The rating is 2500 to 3650 lbs per wheel. Compare it with the load your vehicle places on each corner before choosing this model.

Does this wheel have a centered mounting face?

The offset is 0 and the backspacing is 5, so the face sits at the center of the width. Compare these figures with caliper and fender clearance before mounting.

Does a centered mounting face affect brake clearance?

It can. A centered face splits the wheel's position evenly between inner and outer clearance, but caliper and fender room also depend on the hub and tire. Check clearance with the wheel mounted and the suspension at full travel before driving.
