Poison Spyder Rear Crusher Flares – Extra Wide (Bare Steel) – 17-05-020

Poison Spyder Customs

Shop Jeep Wrangler JK Tube Fenders on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Extra wide steel rear crusher flares for Jeep JK Wrangler, 2-door and 4-door models
  • 2 inches wider than standard width rear flares, for extra tire coverage
  • 1.5 inch OD, .120 wall DOM outer rub rail on a 3/16-inch steel mounting plate
  • Internal bracing kit; ships bare steel, cutting or drilling required

Description

Overview

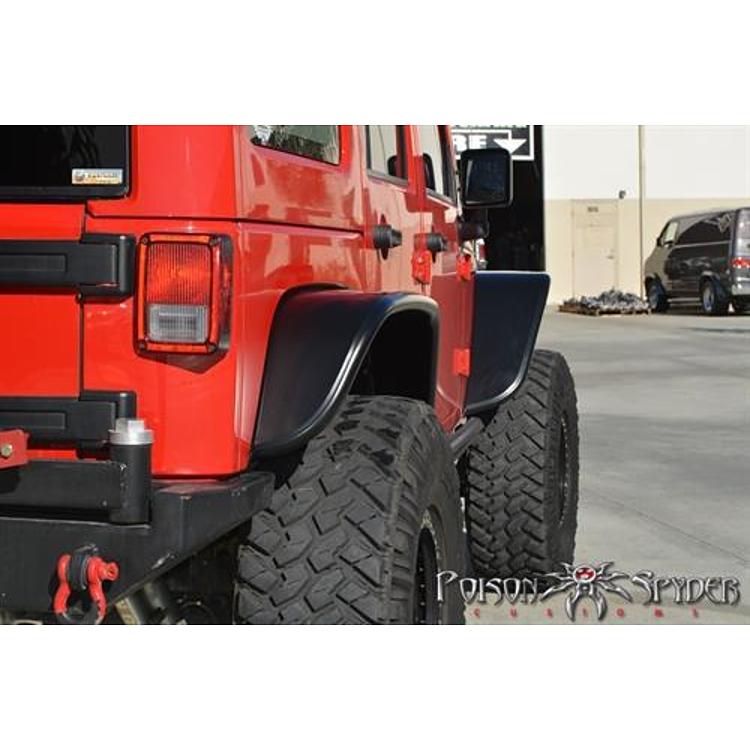

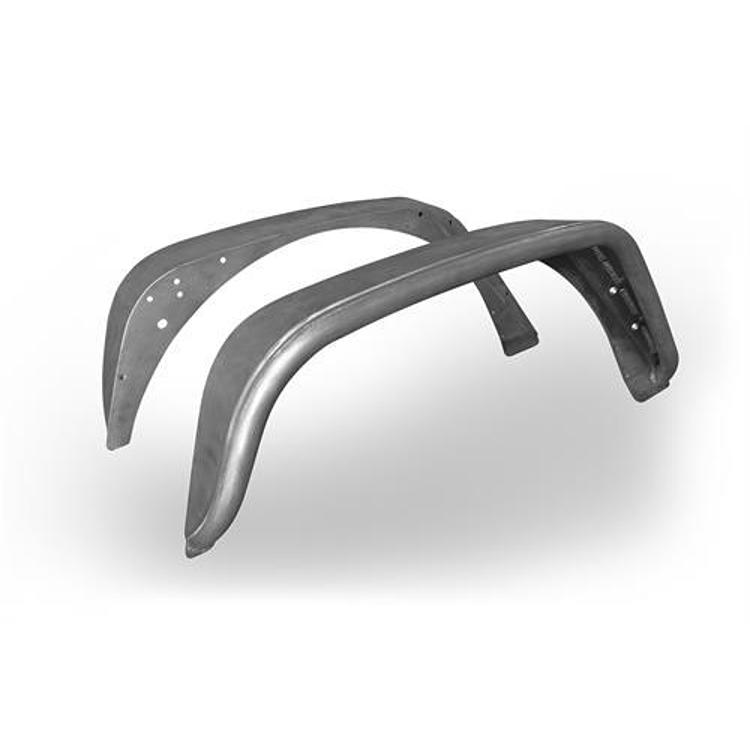

The Poison Spyder 17-05-020 is an extra wide steel rear crusher flare for the Jeep Wrangler JK in two-door and four-door models. It is 2 inches wider than Poison Spyder’s standard width rear crusher flare, which the company says mimics the approximate width of the stock fender flares.

The extra width adds 2 inches of tire coverage, which can help meet local tire coverage rules and keep more dirt and mud off the side of the Jeep when wider wheels and tires are fitted. The steel flare is built to replace the thinner stock plastic JK flares.

The flare is built on a CNC laser cut 3/16-inch steel mounting plate with a 1/8-inch top plate. The outer rub rail is 1.5 inch OD, .120 wall DOM tubing, CNC bent to shape. An internal bracing kit transfers impact loads from the flare to the Jeep’s heavy gauge inner tub structure, so the thinner outer sheet metal does not take the force of a rock or a tree strike alone.

The crusher flare and its inner brace system are built to take hard scrapes against granite canyon walls. Like the front flares in the line, this rear flare ships as bare steel. It must be painted or powder coated before final installation, and installation requires cutting or drilling, so plan the work before mounting the flare.

Key features

  • Extra wide rear flare, 2 inches wider than standard width
  • Designed to add tire coverage and keep mud off the side of the Jeep
  • 1.5 inch OD, .120 wall DOM outer rub rail, CNC bent
  • 3/16-inch steel mounting plate and 1/8-inch top plate
  • Internal bracing kit that carries impacts into the inner tub
  • Bare steel, ready for paint or powder coat

Planning the install

Because this flare requires cutting or drilling, plan the sequence before the first cut. Test-fit the flare with the inner brace kit in place, mark the tire clearance at full steering lock, and confirm the body opening lines up with the rear quarter before committing to holes.

Wider flares move the body coverage outward, which changes how the Jeep sheds mud and how close the tire sits to the side. Expect a small change in how the Jeep looks from behind, and recheck rub after any change in tire size, wheel offset or suspension height.

Bare steel is easier to seal when it is finished before mounting. Keep the paint or powder coat clear of the liner contact points so the finish stays intact once the flare is bolted down.

Specifications

Brand Poison Spyder Customs
Part number 17-05-020
UPC 614901750515
Location Rear
Type Tube fender
Width Extra wide, 2 inches wider than standard width
Outer rub rail 1.5 inch OD, .120 wall DOM steel
Mounting plate 3/16-inch steel
Top plate 1/8-inch steel
Finish Bare steel
Installation type Cutting or drilling required
Fitment type Direct fit

Vehicle fitment

These extra wide rear flares are made for the Jeep Wrangler JK, which covers the 2007–2018 model years in two-door and four-door bodies.

It fits the Jeep Wrangler JK in two-door and four-door bodies, 2007–2018 model years. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires cutting or drilling. Paint or powder coat the bare steel before the flare goes on the Jeep, and fit the flare with the internal bracing kit in place so the braces carry the load into the inner tub.

What’s included

The kit includes the extra wide steel rear crusher flare, its mounting plate and top plate, and the internal bracing kit that transfers impact loads into the Jeep’s inner tub.

Not included: paint or powder coating for the bare steel.

SKU: PSC17-05-020 Category:

Specification

Shipping weight 48.00 lbs
Package dimensions 46.00 × 19.00 × 15.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do these extra wide rear crusher flares fit a Jeep JK?

Yes. It is a crusher flare built for the Jeep Wrangler JK in two-door and four-door models. It is 2 inches wider than the standard width rear flare and ships as bare steel.

How much extra tire coverage do the rear flares give?

It gives 2 inches of extra tire coverage compared with the standard width rear flare. That can help meet local tire coverage rules and keeps more mud off the side of the Jeep.

Do the rear flares ship painted?

No. The flares ship as bare steel and must be painted or powder coated before final installation. Installation also requires cutting or drilling, so plan the fit before finishing.

Does the kit include an inner brace?

Yes. The internal bracing kit transfers impact loads to the Jeep's heavy gauge inner tub structure, so the thinner outer sheet metal does not take the force of an impact alone.

Will wider rear flares change the Jeep's tire rub?

They can. Wider flares move the body coverage outward, so check for rub at full steering lock and under suspension compression. Re-test after changing tire size, wheel offset or suspension height.

What should be checked on the inner braces before driving?

Check that the braces seat firmly against the inner tub and that every fastener is tight. Look for paint cracks or gaps where the flare meets the body, and address moisture traps with sealant or liners.
