Poison Spyder Rear Aluminum Crusher Flares (Aluminum) – 17-05-010-ALUM

Poison Spyder Customs

Shop Jeep Wrangler JK Tube Fenders on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Aluminum rear crusher flares for the Jeep JK, sold as a pair
  • Weighs 9.6 lbs per fender; tire coverage up to a 40 inch tire
  • 1.5 inch x .199 wall annealed aluminum rails and 3/16-inch mounting plate
  • Includes a 4-piece inner brace kit; drilling and nut-serts required

Description

Overview

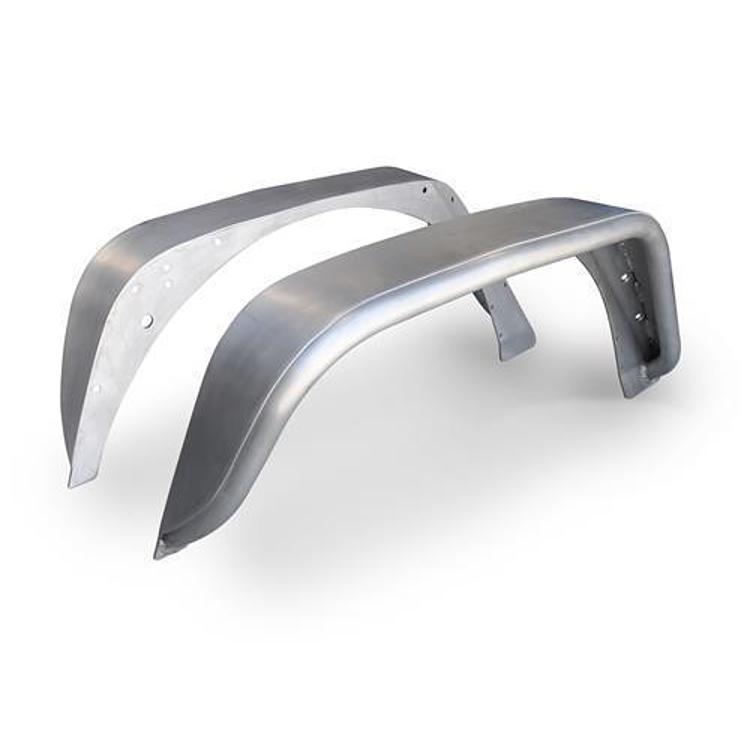

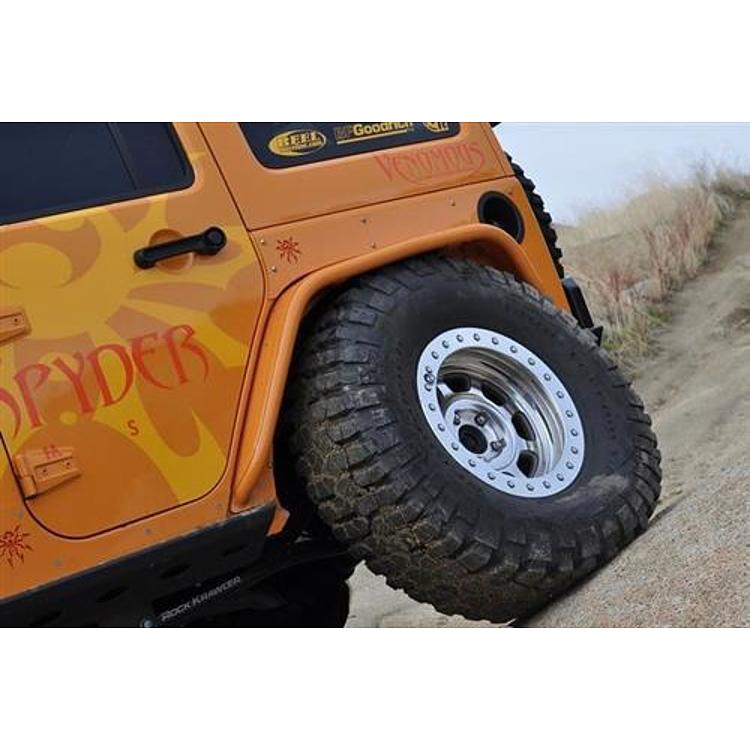

The Poison Spyder 17-05-010-ALUM is a pair of aluminum rear crusher flares for the Jeep Wrangler JK. They replace the flimsy plastic factory rear flares, which Poison Spyder says can tear off and are easily damaged on the trail. The flares provide tire coverage for up to a 40 inch tire, though minor trimming of the inner sheet metal may be needed for clearance.

Each flare weighs 9.6 lbs. The mounting plate is CNC laser cut from 3/16-inch thick aluminum plate and brake-formed to fit the flare mounting surface of the JK. The flare rails are CNC-bent 1.5 inch x .199 wall annealed aluminum structural tubing, with a fender surface of 1/8-inch laser cut aluminum plate. The flares mount with stainless steel countersunk flat head cap screws. Installation requires drilling and the nut-sert fasteners that come with the kit. Poison Spyder supplies a nut-sert installation tool.

The flares are sold bare and uncoated and come with a four-piece inner brace kit. The braces are laser cut and brake-formed to fit between the outer sheet metal and the heavier gauge steel of the inner tub, so impacts pass to the stronger structure rather than deforming the body. The .188 wall tubing and inner braces add strength to each flare.

Aluminum is lighter than steel, so these flares suit owners who want to save weight. Aluminum does not absorb direct impacts as well as steel, so the driver should take more care on the trail. A steel JK rear crusher flare weighs 24.2 lbs without hardware, compared with 9.6 lbs for this aluminum one.

Key features

  • Lightweight aluminum flares, 9.6 lbs per fender
  • Tire coverage for up to a 40 inch tire
  • 1.5 inch x .199 wall annealed aluminum rail tubing
  • 3/16-inch CNC laser cut aluminum mounting plate
  • Four-piece inner brace kit to transfer impacts to the inner tub
  • Stainless steel countersunk flat head cap screws

Trail wear on crusher flares

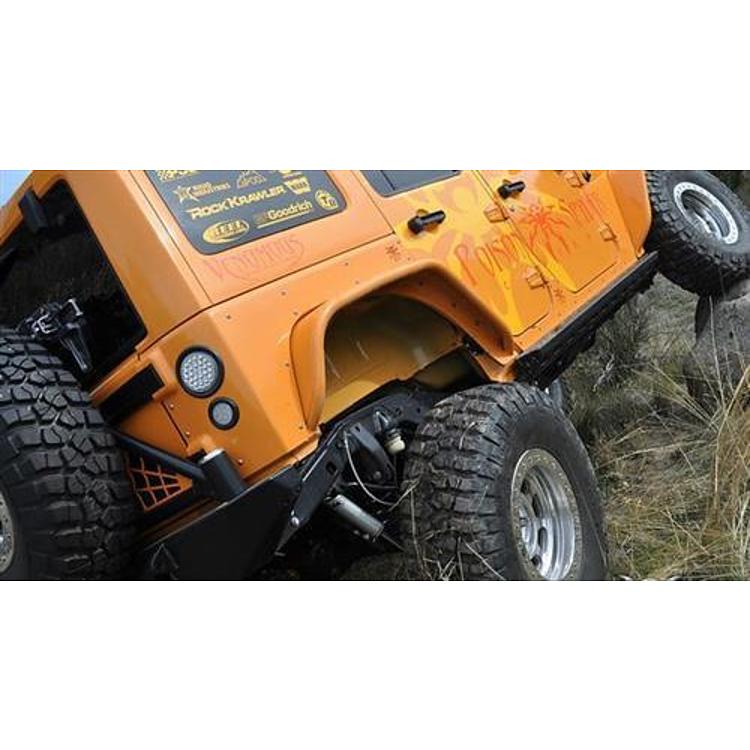

Crusher flares sit at the rear corners of the body, where rocks, stumps and tree trunks tend to make contact when the Jeep works through tight spots. Their job is to take that contact so the thinner body panels behind them stay intact. Because the flare is the first point of contact, damage usually shows there first, as dents along the rail, cracked welds or fasteners that have loosened near the mounting plate.

Aluminum behaves differently from steel under load. It bends more readily and can crack rather than crease, so after a hard hit it is worth checking the rail and fender surface for hairline cracks. Steel dents more easily but can rust at cut edges, so bare metal should be sealed. Check the mounting hardware after the first few trail runs and retighten as needed.

Specifications

Brand Poison Spyder Customs
Part number 17-05-010-ALUM
UPC 614901726718
Location Rear
Type Tube flare
Weight 9.6 lbs per fender
Tire capacity Up to a 40 inch tire, minor trimming may be needed
Mounting plate 3/16-inch aluminum
Rails 1.5 inch x .199 wall annealed aluminum
Finish Bare aluminum
Installation type Drilling and nut-serts required

Vehicle fitment

These aluminum rear crusher flares are made for the Jeep Wrangler JK, which covers the 2007–2018 model years. Poison Spyder says they fit the flare mounting surface of the JK body.

It fits the Jeep Wrangler JK. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires drilling and the nut-sert fasteners included with the kit. Poison Spyder supplies a nut-sert tool to set them. The four-piece inner brace kit should be installed as well, because it carries the impact load into the inner tub.

What’s included

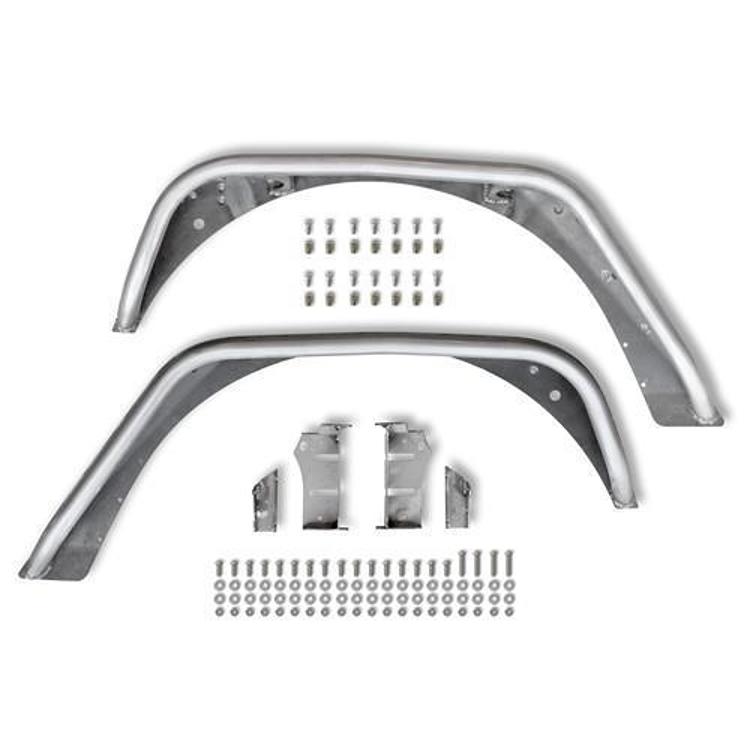

The kit includes the pair of aluminum rear crusher flares, the four-piece inner brace kit, the stainless steel countersunk flat head cap screws and nut-serts, and a nut-sert installation tool.

SKU: PSC17-05-010-ALUM Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 46.00 × 19.00 × 13.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do these aluminum crusher flares fit a Jeep JK?

Yes. It is made for the Jeep Wrangler JK and fits the flare mounting surface of the JK body, which covers the 2007–2018 model years.

How much do the aluminum rear flares weigh?

Each aluminum rear flare weighs 9.6 lbs. A steel JK rear crusher flare weighs 24.2 lbs without hardware, so the aluminum version is much lighter per fender.

Do the flares need drilling?

Yes. The flares mount with stainless steel countersunk flat head cap screws and nut-serts. Installation requires drilling, and Poison Spyder supplies a nut-sert installation tool.

Will these flares clear a 40 inch tire?

Yes, the flares cover tires up to 40 inches. Minor trimming of the inner sheet metal may be needed for tire clearance.

Do the flares need routine checks after installation?

Yes. Check the nut-serts, cap screws and inner braces after the first few trail runs and retighten as needed. Look along the rails for cracks or creases, especially after rock strikes.

Do aluminum flares wear differently from steel ones?

Yes. Aluminum bends more easily and can crack rather than dent, so inspect rails for hairline cracks after hard impacts. Steel dents more readily but can rust at cut edges, so the two need different checks over time.
