Poison Spyder BFH Front Bumper with Shackle Tabs and Brawler Bar (Bare)- 11-16-020-DB

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bare steel stubby front bumper, 3/16 in plate steel
  • Integrated winch mount and 7.4 in Brawler Bar
  • 1 in thick shackle tabs for 3/4 in shackles
  • Light mounts not included

Description

Overview

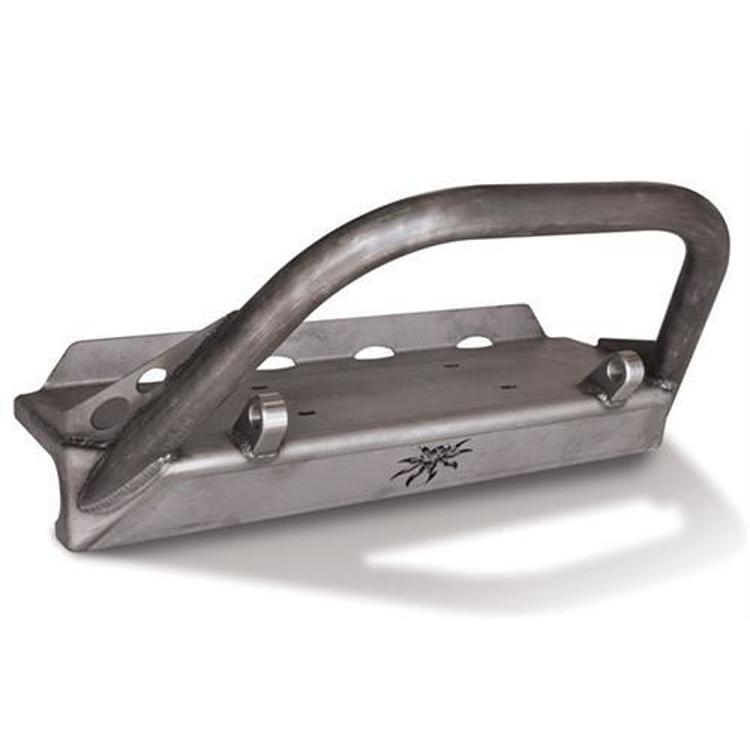

The Poison Spyder BFH front bumper 11-16-020-DB is a bare steel stubby front bumper with shackle tabs and a Brawler Bar, built from 3/16 in plate steel with an integrated winch mount. Poison Spyder Customs designed it for hardcore four-wheelers who value strength, simplicity and function.

BFH stands for Built For the Hammers. The bumper is CNC laser-cut from a single piece of high strength plate, then brake-formed, and is no wider than the Jeep’s frame rails with angled facets to help it slide over rocks. The Brawler Bar extends 7.4 in forward and is 9.8 in high from the top surface of the bumper.

Key features

  • Bare steel finish
  • CNC laser-cut from a single piece of 3/16 in high strength plate steel, precision brake-formed
  • Integrated winch mount
  • Brawler Bar, a lower-profile Stinger, extends 7.4 in forward
  • Brawler Bar stands 9.8 in high from the top of the bumper

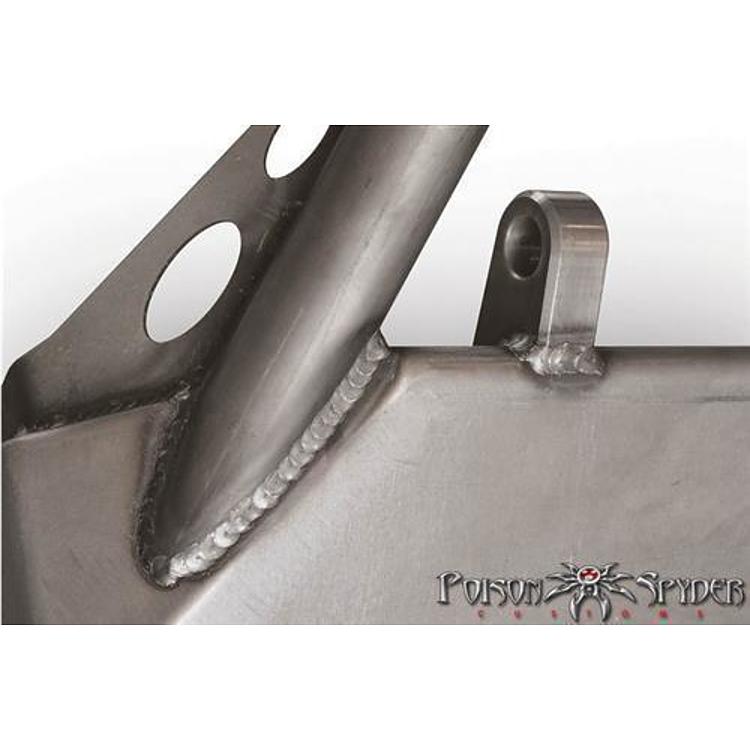

  • Recovery shackle tabs machined from 1 in thick plate steel for 3/4 in shackles
  • Tabs matched to the bumper angles for zero loss in approach angle
  • D-ring mount included
  • Stubby width, no wider than the frame rails

Recovery and winch planning

A front bumper with shackle tabs and a winch mount is built to take recovery loads, so plan the rest of the recovery setup as a system. Choose shackles and recovery straps that match the tab size and the rated load of your winch. Use a fairlead and keep the winch cable and line in good condition, since frayed cable is a common cause of failure.

A stinger-style bar protects the front of the vehicle but changes the approach and winch angle, so check the line of pull before setting up a recovery. Inspect the welds and tabs after hard use, and check that the D-ring or shackle hardware is free of bends.

  • Match shackles to tab size
  • Inspect welds after hard use
  • Check winch wiring and fusing

Specifications

Brand Poison Spyder Customs
UPC 614901723557
Product type Front bumper with winch mount
Finish Bare steel
Material 3/16 in plate steel
Width Stubby
Winch mount Included (integrated)
D-ring mount Included
Light mounts Not included
Brawler Bar projection 7.4 in forward
Brawler Bar height 9.8 in from the top surface
Shackle tab thickness 1 in plate steel
Shackle size 3/4 in
Fit type Direct fit
Part number (title) 11-16-020-DB

Vehicle fitment

This bumper is a direct fit type and is no wider than the frame rails. Confirm your Jeep’s model, year and chassis before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A bumper is a heavy structural part, so use a helper or a lift to position it. Bare steel will rust unless coated, so paint or powder coat it. If you add a winch, wire it with correct fusing and follow its instructions. Offer the bumper up to the frame to confirm that the bolt holes and shackle tabs line up before final tightening, and then check the headlights and any bumper-mounted accessories for clearance.

What’s included

  • Front bumper with integrated winch mount
  • Brawler Bar
  • Recovery shackle tabs
  • D-ring mounts

Not included: Light mounts, a winch and shackles (the finish is bare steel).

SKU: PSC11-16-020-DB Category:

Specification

Shipping weight 40.00 lbs
Package dimensions 30.00 × 18.00 × 13.00 in
brands

Questions & Answers

What is the Poison Spyder BFH bumper made of?

The BFH bumper is made of 3/16 in high strength plate steel, CNC laser-cut from a single piece and then brake-formed. It is supplied as bare steel, so it needs a finish.

Does the BFH bumper have a winch mount?

Yes. The BFH bumper has an integrated winch mount and a D-ring mount. A winch itself is sold separately, so choose one that matches the mount pattern before installing.

What shackles fit the BFH shackle tabs?

The recovery shackle tabs are machined from 1 in thick plate steel to provide a secure attachment point for 3/4 in recovery shackles.

Does the BFH bumper include light mounts?

No. Light mounts are not included with the BFH bumper. A D-ring mount is included, and the stubby width keeps the bumper no wider than the frame rails. Plan your light mounting before installing.

Does a bare steel bumper need paint before installation?

It is best to coat it before installing, since bolt holes and seams can trap moisture. Clean the steel, prime and paint or powder coat it, then allow the coating to fully cure before bolting the bumper on. Protecting bare steel early reduces rust around welds and tabs.
