Poison Spyder Trail Stinger (Bare)- 13-11-010

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Poison Spyder Trail Stinger, part 13-11-010, in bare steel
  • 3/16-inch plate base and 1-3/4-inch by .120 wall DOM hoop
  • 27 inch hoop at a 47 degree angle
  • Works with any winch mount plate

Description

Overview

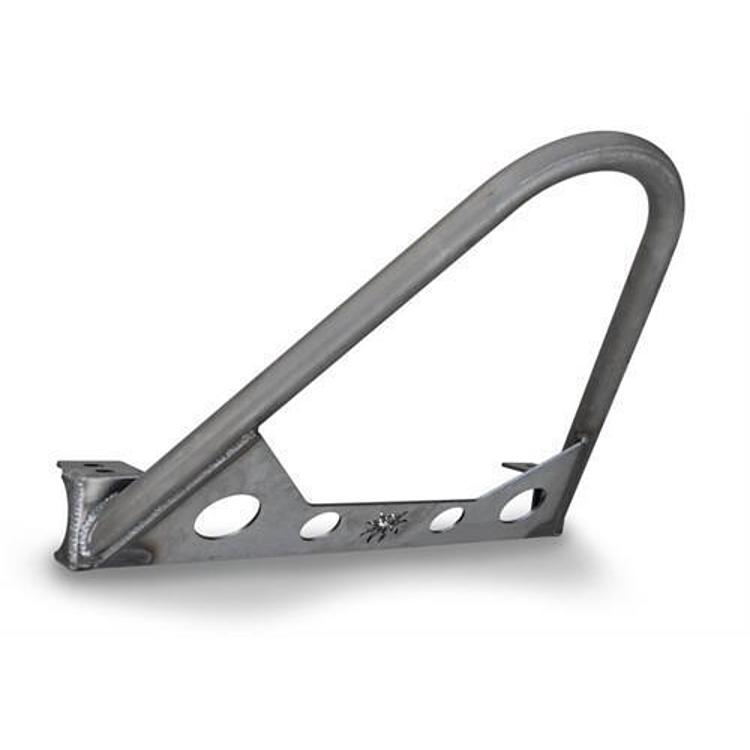

The Poison Spyder Trail Stinger, part number 13-11-010, is a bare steel front stinger made from 3/16-inch plate and 1-3/4-inch by .120 wall DOM tubing. Poison Spyder Customs builds its front stingers for extreme trails as a functional alternative to the rectangular Jeep bumper.

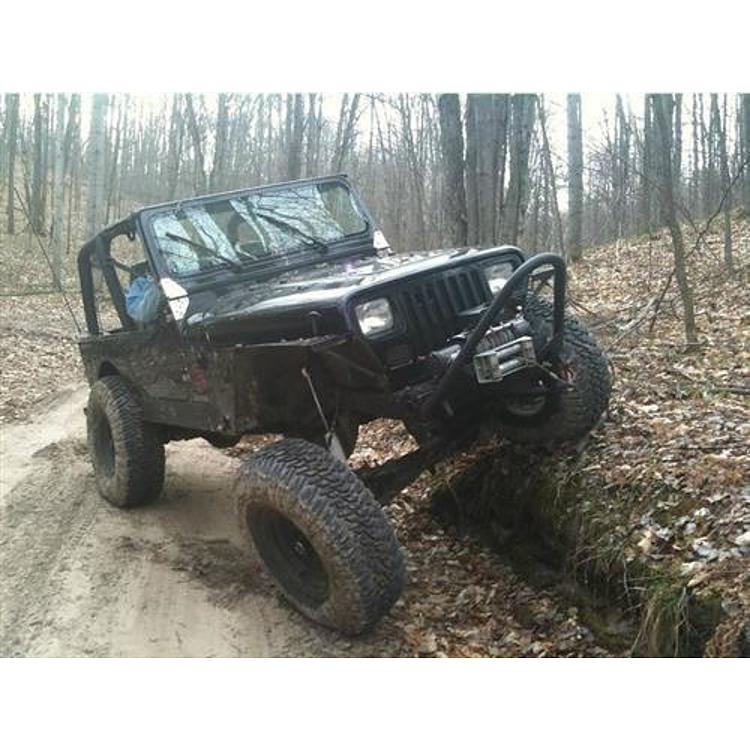

A stinger helps protect the hood line, radiator and engine in a rollover and helps keep a vehicle from tipping end over end on steep downhill sections. It protects the grille and winch without the approach angle lost to a bulky square bumper. The main hoop is 27 inches tall from the base at a 47 degree angle.

The stinger has no winch mounting provisions, but it works with any winch mount plate and ships in bare steel. D-Ring Shackle Tabs are an option for a stronger recovery point.

Key features

  • Base plate laser cut from 3/16-inch plate steel
  • CNC-bent 1-3/4-inch by .120 wall DOM structural tubing hoop
  • 27 inch main hoop at a 47 degree angle
  • Protects hood line, radiator and engine in a rollover
  • Protects the grille and winch
  • Works with any winch mount plate
  • Bare steel finish

Choosing a stinger for trail use

A stinger suits drivers who want front end protection and approach clearance on rocky trails. The hoop protects the grille and winch area and keeps the engine bay clear of direct strikes from obstacles. Its height and angle matter for how the vehicle clears ledges and washouts, so picture the lines you usually drive before choosing. Compare the hoop height with your tire size and fender clearance.

Because a stinger ships bare, factor finishing time into the install. Bare steel welds and cut edges rust quickly if left alone. Plan the winch mount plate and any light relocation together, since accessory placement affects load and clearance. After each trip, check the base plate and the hoop joints for cracks or loose hardware.

  • Compare hoop height with tire size
  • Finish bare steel before first use
  • Check base plate joints after trail trips

Specifications

Brand Poison Spyder Customs
Part number 13-11-010
UPC 614901724363
Product Front Trail Stinger
Base plate Steel plate, 3/16 in
Hoop tubing 1-3/4 in by .120 wall DOM
Hoop height 27 in from base
Hoop angle 47 degrees
Finish Bare steel
Winch mount Not included
Light mounts Not included
D-ring mount Not included

Vehicle fitment

It is positioned as a Jeep part. Check that your vehicle matches the Jeep application before ordering this stinger.

Poison Spyder sells a near-identical stinger under 14-11-010; check which number your application calls for. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Relocation of bumper-mounted auxiliary lights is required, and Poison Spyder offers a Fairlead Light Mount for that. Original equipment tow hooks can stay in place. Finish the bare steel before use.

What’s included

  • Trail Stinger

Not included: a winch plate, D-ring shackle tabs or lights.

SKU: PSC13-11-010 Category:

Specification

Shipping weight 32.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

What is the Poison Spyder 13-11-010?

13-11-010 is a Trail Stinger in bare steel, with a 3/16-inch laser cut base plate and a 1-3/4-inch DOM tube hoop 27 inches tall at a 47 degree angle.

Will the 13-11-010 stinger work with my winch plate?

Yes. It has no winch mounting of its own, but it works with any winch mount plate, so pick the plate you prefer.

Will factory tow hooks still work with the 13-11-010?

Yes. OE tow hooks work in conjunction with the Trail Stinger. Poison Spyder suggests its D-Ring Shackle Tabs if you want a stronger recovery point.

What does the Poison Spyder Trail Stinger protect?

It helps protect the hood line, radiator and engine in a rollover, prevents end-overs on steep terrain and protects the grille and winch.

How do I keep a bare steel stinger from rusting?

Clean and degrease the stinger, then prime and paint or powder coat it, paying extra attention to welds and cut edges. Touch up chips when they appear, because rust starts quickly where bare metal is exposed on the trail.
