Overview

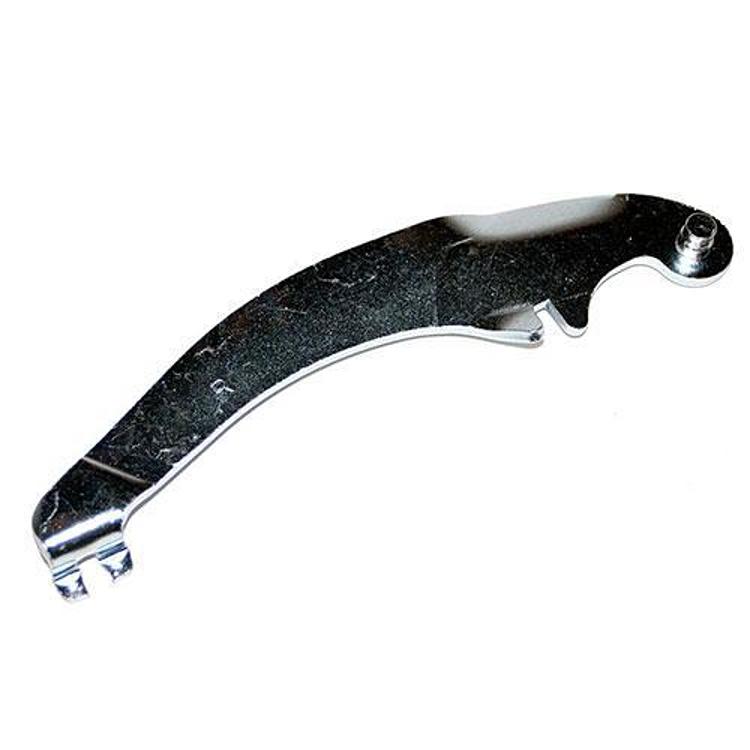

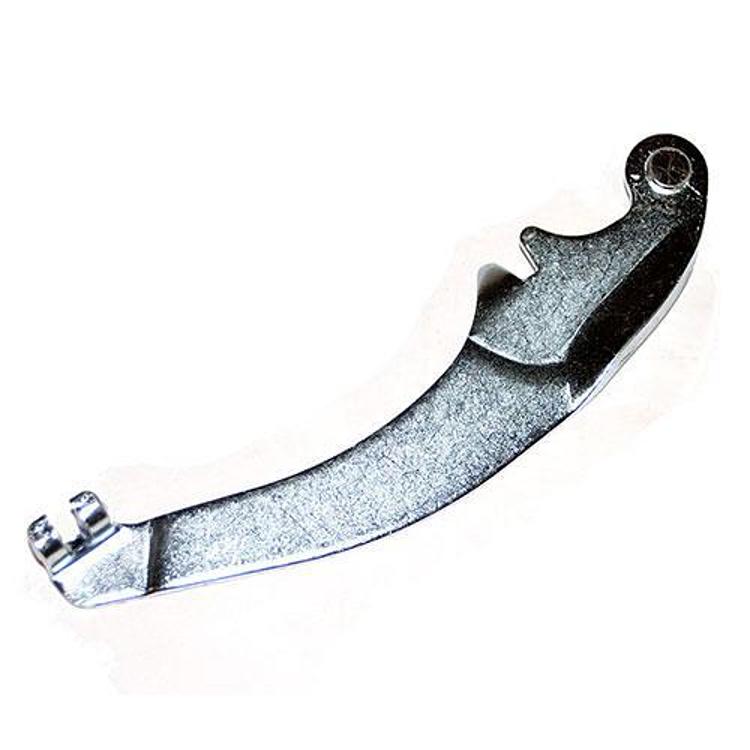

The Omix-Ada 16751.04 is a passenger-side emergency brake lever for Jeep vehicles with 11-inch brakes. It is built to original specifications as a direct replacement part and carries a limited five-year warranty.
Key features
- Passenger-side emergency brake lever
- Built for 11-inch brakes
- Direct OE replacement design built to original specifications
- Limited five-year warranty
Parking brake lever care
The emergency brake lever is a ratchet mechanism that holds tension on the parking brake cables when the lever is pulled up. Each click sets the cable tighter, and the release button or handle lets the pawl disengage so the cables relax.
Lever wear usually shows up as a loose feel, a ratchet that slips, or a release that sticks. Check the pawl and its spring for rust and wear, and make sure the lever pivot moves freely. Corrosion inside the housing can lock the ratchet in place, so clean and lubricate the moving parts when the lever is off the vehicle.
A new lever should be matched with the cable adjustment. Set the rear cables so the parking brake holds the vehicle on a slope while the rear wheels release fully when the lever is down. Recheck the setting after the first few uses, because new cables often stretch slightly.
- Test the ratchet click for consistent engagement
- Inspect the release mechanism
- Check the pivot bolt and bushing
- Adjust cables after installing a new lever
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16751.04 |
| UPC | 804314018016 |
| Position | Passenger side |
| Brake size | 11-inch brakes |
| Warranty | Five-year limited warranty |
Vehicle fitment
It is a direct replacement for the original passenger-side lever on Jeep vehicles with 11-inch brakes.
Confirm your vehicle’s year, model and trim before ordering, and check the brake size against your setup.
What’s included
Check the package contents against your installation before fitting the lever.
