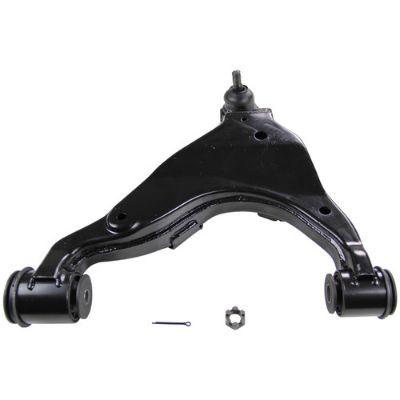

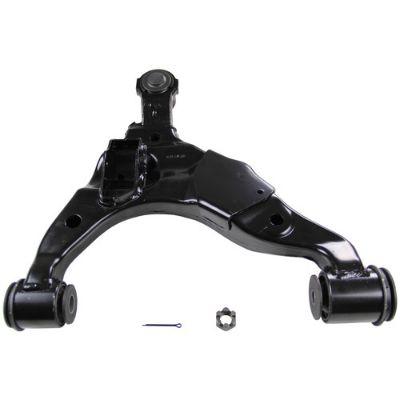

Moog Front Right Lower Control Arm And Ball Joint Assembly – RK621293

Moog

$128.22In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 8:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Moog RK621293 front right lower control arm and ball joint assembly
  • Fits 2005–2015 Toyota Tacoma (Base, Pre Runner, TRD Pro, X-Runner)
  • Ball joint pre-installed with a sealed socket
  • Direct fit, box-type control arm

Description

Overview

The Moog RK621293 is a front right lower control arm and ball joint assembly for the 2005–2015 Toyota Tacoma. Moog supplies the lower ball joint already installed in the control arm, so the assembly arrives as one unit for the right front lower position.

The assembly is built to close tolerances for straightforward installation and steering alignment. Its bushings are designed to resist wear, salt, road grime and oils, and the ball stud shape supports fatigue life and allows extra swing when needed.

Key features

  • Pre-installed ball joint with a sealed socket
  • Optimized bushings for quiet operation
  • Ball stud shape for fatigue life and compensation for sag
  • Heat treated to match or exceed OE requirements.
  • Coated studs and e-coated cast iron and steel control arm

Replacing a worn lower arm

A lower control arm carries the wheel’s load and connects the hub to the frame, while the ball joint at its outer end lets the steering knuckle pivot. When that joint or the bushings wear, the front end can feel loose, wander on the highway, or knock over bumps. Replacing the arm as one assembly removes the old joint with it, so a worn joint is not pressed into a sound arm.

Because the lower arm sets part of the suspension geometry, it is worth checking the tie rod ends, the upper ball joints and the wheel bearings at the same time. Look for torn boots, grease leaks and play when the wheel is rocked at the top and bottom. Keeping both front sides in similar condition helps the truck track evenly.

  • Inspect the outer boot for cracks before the old arm comes off
  • Check the opposite side for matching wear
  • Re-check the fasteners after the first few drives

Specifications

Brand Moog
Part number RK621293
Position Front right, lower
Assembly Control arm and ball joint
Control arm type Box
Control arm material E-coated cast iron and steel
Ball joint Pre-installed, sealed socket
Fitment type Direct fit

Vehicle fitment

It fits the 2005–2015 Toyota Tacoma in Base, Pre Runner, TRD Pro and X-Runner trims.

The list does not include the 2016 and later Tacoma, the 4Runner or the Jeep and Dodge models covered by the upper assemblies in this line. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A new lower control arm and ball joint change the wheel alignment, so have the caster and camber checked after installation.

What’s included

The kit is one front right lower control arm and ball joint assembly.

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2015Base, Pre Runner, TRD Pro, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Moog RK621293 fit a 2012 Toyota Tacoma?

Yes. It fits the 2005–2015 Toyota Tacoma, which covers 2012 models in Base, Pre Runner, TRD Pro and X-Runner trims. Confirm the trim for your vehicle before ordering.

Is the RK621293 a lower or upper assembly?

It is a front lower assembly for the right side. The upper right assembly is a separate part, the RK621607, which fits Durango and Grand Cherokee models.

Does the RK621293 include the ball joint?

Yes. The ball joint comes pre-installed in the control arm with a sealed socket, so the assembly arrives as one unit. The sealed socket is designed to need no routine maintenance.

Should the left lower control arm be replaced at the same time?

Not always. If the left side shows similar wear, such as play at the ball joint or a torn boot, replacing both sides together keeps the front end balanced. Check both joints before ordering to decide.
