Overview
The K&N 71-1561 Blackhawk Air Intake Kit is a cold-air intake system for Dodge Ram 1500 trucks from 2009 to 2010 and for Ram 1500 and 2500 trucks from 2011 to 2018, plus Ram 3500 trucks from 2013 to 2018. It replaces the factory air filter and air intake housing with a free-flowing, mandrel-bent aluminum tube and an oversized cone-shaped filter.
The low-restriction design lets the engine draw in a larger volume of air than the stock intake, and more air supports more power and quicker acceleration. The black powder-coated tube and engraved K&N plate give the engine bay a clean look, and the intake uses the existing factory mounting points.
Key features
- Free-flowing, mandrel-bent aluminum tube with a textured black powder-coated finish
- Engraved K&N plate welded to the tube
- Oversized cone-shaped dry filter made from oil-free synthetic filter media
- Filter is washable and reusable, which K&N describes as a lifetime filter
- Tube accommodates the factory air temperature sensor and crankcase vent hose
- Black heat shield included
- Covered by the K&N Million Mile Limited Warranty
Keeping the intake clean
An open cone filter sits in the engine bay where it can collect road grime, pollen and splashed water. Inspect it whenever the hood is open, and clean it when it looks dirty or restricted. Synthetic media is cleaned and dried rather than oiled, so keep the filter dry before reinstalling it.
The mandrel-bent aluminum tube is more rigid than rubber hose, so check the mounting points and clamps for vibration wear over time. Make sure the crankcase vent hose and temperature sensor remain connected after cleaning or servicing. A short inspection after rough roads helps catch loose parts early.
- Check the filter whenever the hood is open
- Dry synthetic media fully before reinstalling
- Inspect mounting points for vibration wear
Specifications
| Brand | K&N Filter |
|---|---|
| Part number | 71-1561 |
| UPC | 24844335852 |
| Intake type | Cold air |
| Filter housing type | Partial enclosure |
| Filter type | Dry, washable, oil-free synthetic media |
| Inlet tube | Included |
| Tube material and finish | Mandrel-bent aluminum, textured black powder-coated |
| Filter service interval | Up to 100,000 miles before cleaning, depending on driving conditions |
| Fitment | Direct fit |
Vehicle fitment
It fits 2009–2010 Dodge Ram 1500 (Laramie, SLT, ST, Sport, TRX, TRX4); 2011–2018 Ram 1500 (Big Horn, Express, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, R/T, Rebel, SLT, ST, Special Service, Sport, Tradesman, Tradesman HD); 2011–2018 Ram 2500 (Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, Power Wagon, SLT, ST, Tradesman); and 2013–2018 Ram 3500 (Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, ST, Tradesman).
Not covered: Dodge Ram 2500 and 3500 model years 2009–2010, and Ram 3500 model years 2011–2012, are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
K&N describes installation as using the existing factory mounting points and commonly available tools, usually in 90 minutes or less. The tube is designed to accommodate the factory air temperature sensor and the crankcase vent hose, so both stay in use. Disconnect the battery before working near engine wiring.
What’s included

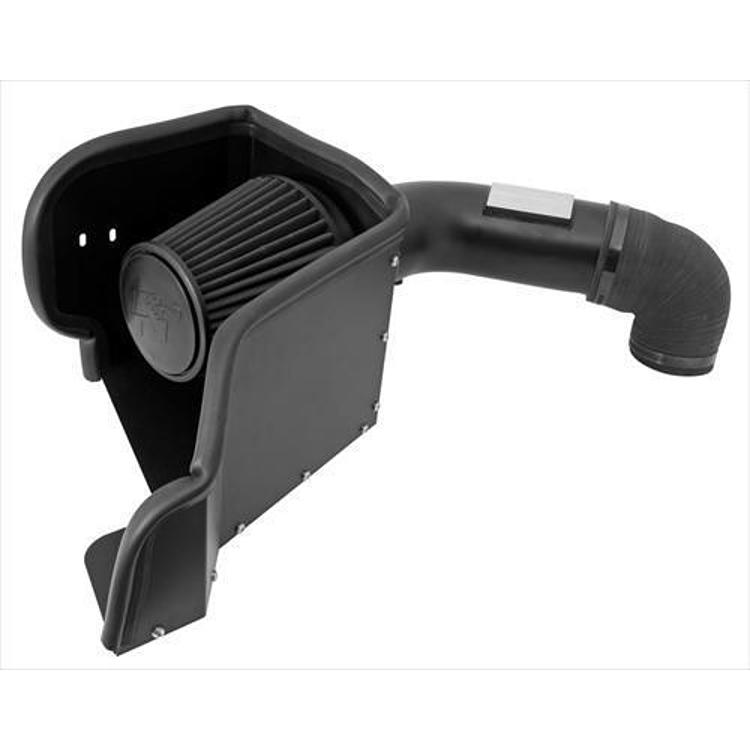

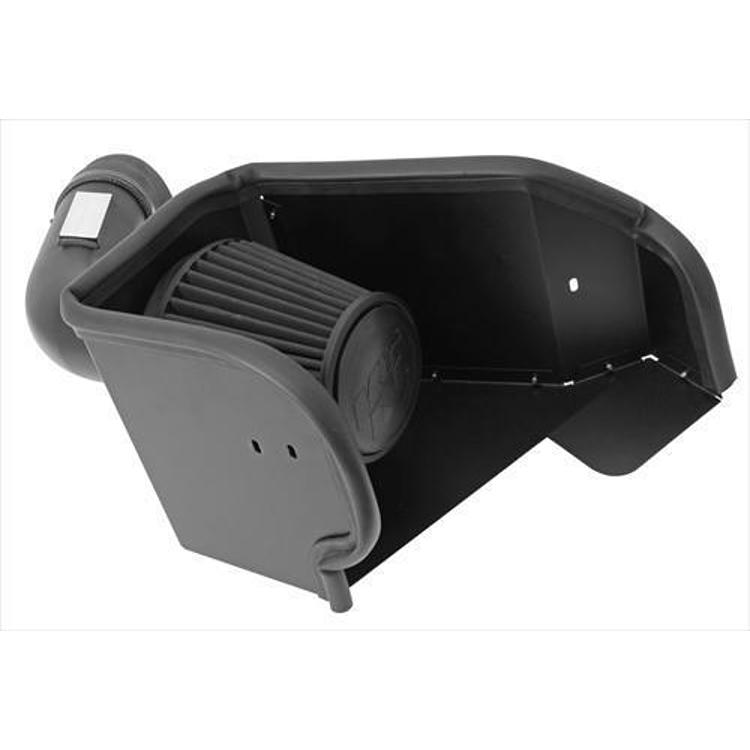

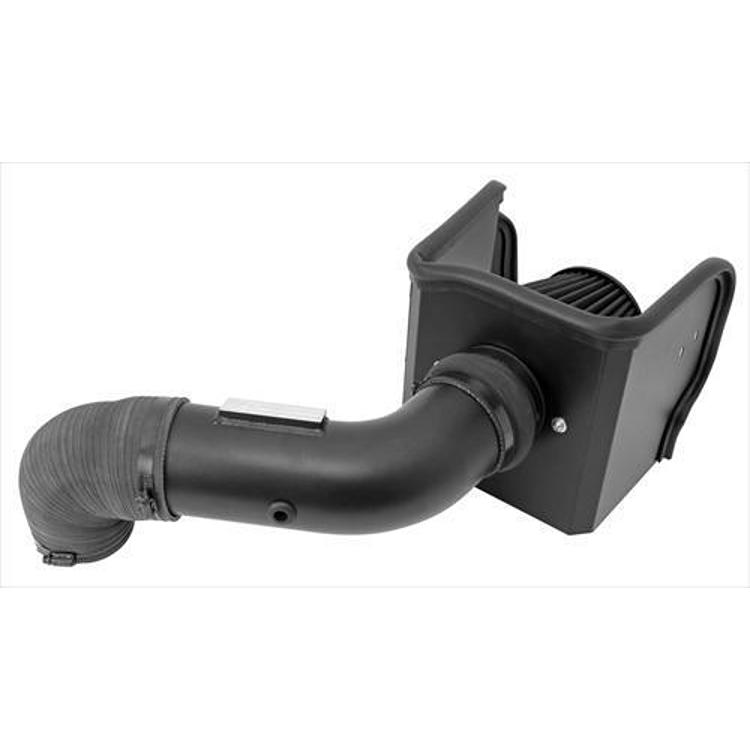

The kit includes the black aluminum intake tube with engraved K&N plate, the oversized K&N high-flow cone air filter and the black heat shield.
