Overview

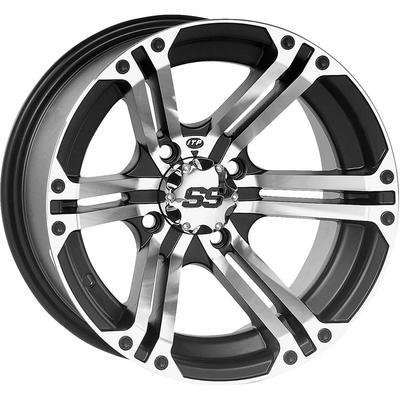

The ITP SS212 12×7 is a machined ATV wheel with a 4 on 110 bolt pattern and part number ITP12SS300, from the SS Alloy line. It is Universal Fit, so the bolt pattern and backspace are the measurements to match against your machine.
The SS212 is a newer alloy style, and this version is the 12-inch wheel with a 5+2 backspace. The 12-inch ATV wheel is rated at 700 pounds, and 14-inch side-by-side UTV applications carry an 800 pound rating. SS Alloy wheels come with a lifetime structural warranty, so a wheel that bends or breaks is replaced.
Key features
- Machined finish on the SS212 alloy style
- 12×7 size with a 5+2 backspace
- 4 on 110 bolt pattern
- Not a beadlock wheel
- ATV wheel type, rated at 700 pounds for 12-inch ATV use per ITP
- Lifetime structural warranty stated by ITP
Backspace and hub fit
Backspace describes how far the wheel sits from the hub mounting face. A change in backspace moves the tire in or out relative to the frame, rack and suspension arms, so it affects both clearance and steering geometry. Matching the backspace to the existing wheel avoids surprises.
Bolt pattern is the other fixed measurement. A 4 on 110 pattern must line up exactly with the hub studs or nuts, and the wheel should seat flat without forcing. Do not use adapters unless the machine’s maker has approved them for the load involved.
Alloy wheels can be damaged by rocks and hard landings. After rough trail rides, inspect the rim for cracks, bends or flat spots, and check lug torque after the first few runs.
- Compare backspace with the wheel being replaced
- Confirm the bolt pattern before fitting
- Check lug torque after the first runs
- Inspect the rim after rocky rides
Specifications
| Brand | ITP |
|---|---|
| Part number | ITP12SS300 |
| Style | SS212 |
| Wheel size | 12×7 |
| Finish | Machined |
| Backspace | 5+2 |
| Bolt pattern | 4 on 110 |
| Beadlock | No |
| Wheel type | ATV |
| Load rating | 700 pounds (12-inch ATV, per ITP) |
Vehicle fitment
It is a wheel for ATV use with Universal Fit, so choose it by bolt pattern, size and backspace rather than by vehicle year.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the bolt pattern and backspace on your current wheel before choosing this one. A backspace that does not suit your hub can move the tire into the frame or a rack, so compare the 5+2 figure with the wheel it replaces.
What’s included
This is one wheel. Check the package contents against your installation before starting, since tires, valve stems and lug hardware need to be sourced separately.
