Overview

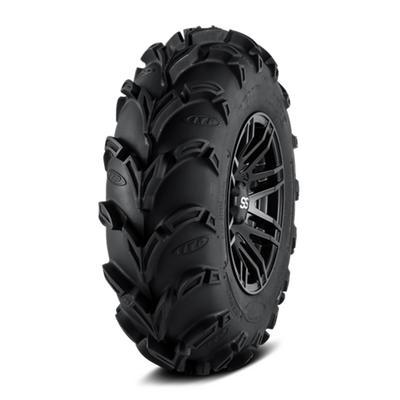

The ITP Mud Lite XL 28x10R12 (part number ITP56A349) is a 6-ply UTV tire for 12-inch wheels, with a black sidewall and a width of 10 inches.
The ITP Mud Lite XL is an all-conditions UTV tire designed for the trail that can also sling mud. It has an extended-wear rubber compound for longer life and a center tread contact area for a smooth, radial-like ride. It belongs to the Mud Lite family.
The size code 28x10R12 means a tire 28 inches tall and 10 inches wide for a 12-inch rim. It is a 6 ply UTV tire.
Match the size and rim to your own wheels, and check the load rating against your machine before buying.
Key features
- All-conditions design for the trail that can still sling mud
- Extended-wear rubber compound for longer life
- Unique center tread contact area for a smooth, radial-like ride
- 6 ply rating
- Black sidewall
- 28x10R12 size on a 12-inch rim
Choosing UTV tire size
Tire size on a UTV affects ground clearance, steering effort, gearing and the load on wheel bearings and axles. A taller tire raises the machine and changes effective gearing, so the choice is about more than fit on the rim. Confirm the wheel diameter, the rim width and the allowed tire size range for your machine before picking a size.
Tire pressure has a large effect on handling and bead seating, so set pressure for the load and terrain you use most. Check pressure before each ride, look for cuts or sidewall bulges after rough trail use, and rotate or inspect tires when wear appears uneven. Balance the tires on the wheels before mounting to limit vibration at speed.
- Confirm rim diameter and width
- Check clearance at full steering lock
- Match pressure to load and terrain
Specifications
| Brand | ITP |
|---|---|
| Part number | ITP56A349 |
| Model | Mud Lite XL |
| Tire size | 28x10R12 |
| Tire type | UTV |
| Ply rating | 6 Ply |
| Sidewall | Black |
| Tire width | 10 inches |
| Rim diameter | 12 inches |
Vehicle fitment
The Mud Lite XL ITP56A349 is not tied to one UTV. ITP gives no years, models or chassis codes, so selection comes down to size: 28x10R12 on 12-inch wheels with clearance for a 28-inch-tall tire.
Other Mud Lite XL sizes carry their own part numbers and are not covered by this one. Wheel diameter is the first thing to check, because a 12-inch tire will not seat on any other rim size.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Have the tire mounted and balanced on a 12-inch wheel. Check clearance at full steering lock and full suspension travel, since a 28-inch-tall tire is larger than some factory UTV tires.
What’s included
- One ITP Mud Lite XL 28x10R12 UTV tire
Not included: A wheel, valve stem or mounting service.
