Overview

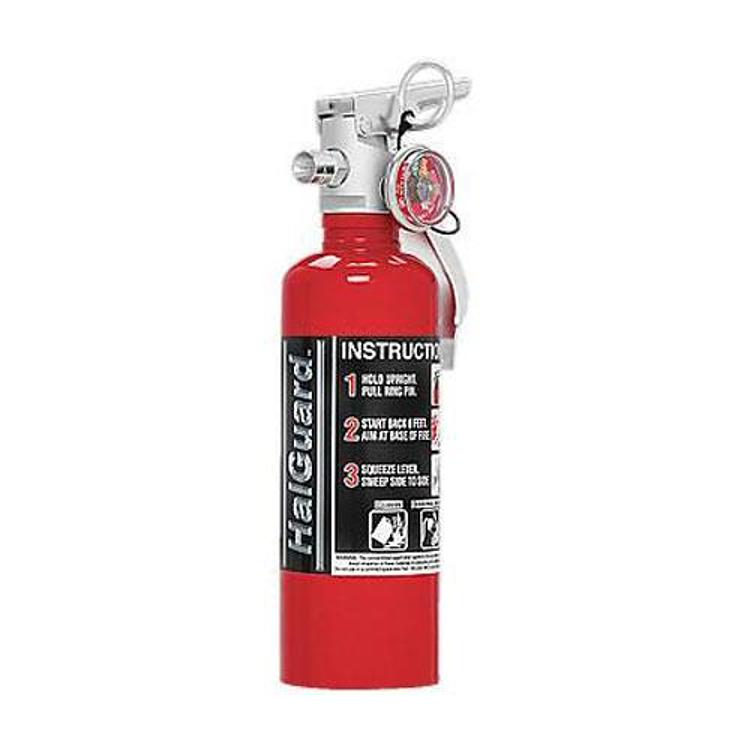

The H3R Performance HalGuard Red Clean Agent Fire Extinguisher, model HG100R, is a 1.4 lb. hand-held unit with an electrically non-conductive clean agent. The agent turns into a gas on discharge, so it leaves no mess or damage on the vehicle or its surfaces.
HalGuard is built for a range of fire situations. The clean agent has passed extensive testing by Underwriters Laboratories and meets FAA requirements, and it is the same type of agent found on commercial aircraft and used by airport fire fighters and on the flight line. The HG100R is the compact option in the HalGuard hand-held line, which also includes 2.5 lb., 5 lb., 11 lb. and 15.5 lb. sizes, along with 65 lb. and 150 lb. wheeled units for large facilities and pit lanes. The larger hand-held sizes are USCG approved and meet DOT requirements for the heavy duty truck market.
Key features
- Electrically non-conductive clean agent that turns into a gas.
- No thermal shock to electronics.
- No mess or damage to the vehicle or surfaces.
- Liquefied gas agent reaches hard-to-reach fires.
- Designed so that it does not impair the operator.
- Compact 1.4 lb. red unit in the HalGuard line.
Mounting and storage tips
A clean agent extinguisher is only useful if you can reach it quickly. Mount it where the driver can grab it without leaving the seat or unbuckling, and keep it away from loose gear that could strike the valve or handle during a hard stop.
Secure the bracket firmly so the unit does not rattle or shift on rough trails. Vehicles that see heavy dust or water crossings benefit from checking the mount each time the vehicle is serviced. Inspect the valve, hose and nozzle for corrosion or damage, and replace the unit if the pressure indicator falls out of its operating range or the discharge handle becomes stiff.
- Keep the unit out of direct sun and engine bay heat.
- Re-check the mounting bolts after the first few trail runs.
- Note the discharge range before any rough trip.
Specifications
| Brand | H3R Performance |
|---|---|
| Model | HG100R |
| UPC | 856991001041 |
| Extinguisher type | HalGuard red clean agent fire extinguisher |
| Agent | Electrically non-conductive clean agent, liquefied gas |
| Size | 1.4 lb. |
| Color | Red |
| Depth | 2.6 in. |
| Width | 3.6 in. |
| Height | 10.0 in. |
Vehicle fitment
This extinguisher is Universal Fit, so it is a general-purpose unit rather than one built for a particular make, model or year. Confirm that the 10.0 in. height and 3.6 in. width suit the space where you plan to mount or store it.
What’s included
One HalGuard Red 1.4 lb. clean agent fire extinguisher, model HG100R.
Not included: Mounting hardware is not included with this model. Check the package contents against your installation before starting.
