Overview

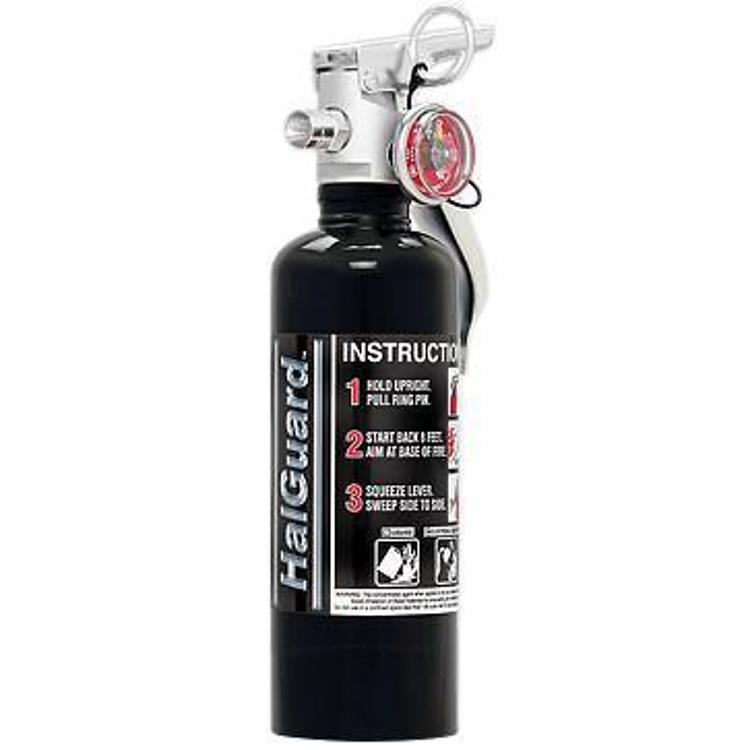

The H3R Performance HG100B is a 1.4 lb HalGuard clean agent fire extinguisher in black. It measures 10.0 inches high, 3.6 inches wide and 2.6 inches deep, and it is universal fit rather than made for a particular vehicle.
HalGuard uses an electrically non-conductive clean agent that turns rapidly into a gas. The agent causes no thermal shock to electronics and leaves no mess or damage on vehicle surfaces.
The agent is designed to meet Underwriters Laboratories testing and FAA requirements. It is the same type of agent used on commercial aircraft and by airport fire fighters.
The larger HalGuard sizes are designed for USCG and DOT requirements in heavy duty truck use. The hand-held range runs from this 1.4 lb unit and a 2.5 lb unit up to 5, 11 and 15.5 lb units, with 65 lb and 150 lb wheeled models above those.
At 1.4 lb this is the smallest hand-held size in the range.
Key features
- Clean agent that is electrically non-conductive
- No thermal shock to electronics
- No mess or damage to vehicle or surfaces
- Liquefied gas reaches hard-to-reach fires
- Black compact body, 10.0 inches high
Choosing an extinguisher size
Extinguisher size should match the job. A compact unit fits a cabin or cargo area where space is tight and where the most likely fire is a small electrical or fuel fire. Larger hand-held units give more discharge time, while wheeled models suit fleets and workshops. Choose a size you can lift and aim quickly, since an extinguisher is only useful when it is in hand.
Mounting position matters as much as size. Keep the unit within reach of the driver, away from direct sun and heat, and secured with a bracket so it cannot fly loose in a crash or hard stop. Check the gauge or indicator periodically, and replace the unit if the pressure drops or the body is damaged.
- Pick a size you can lift and aim quickly
- Mount within the driver’s reach
- Check the gauge regularly
Specifications
| Brand | H3R Performance |
|---|---|
| Part number | HG100B |
| UPC | 856991001393 |
| Capacity | 1.4 lb |
| Agent | HalGuard clean agent, liquefied gas |
| Color | Black |
| Depth | 2.6 inches |
| Width | 3.6 inches |
| Height | 10.0 inches |
| Standards | Underwriters Laboratories testing, FAA requirements (per manufacturer) |
| Fitment | Universal fit |
Vehicle fitment
This extinguisher is not vehicle-specific and suits any vehicle with room for a 10-inch-high cylinder.
Universal fit means no year, make or model applies to this extinguisher.
Installation notes
Mount it where it can be reached quickly from the driver’s seat, and secure it so it does not move around in the vehicle.
What’s included
One 1.4 lb HalGuard clean agent extinguisher in black.
