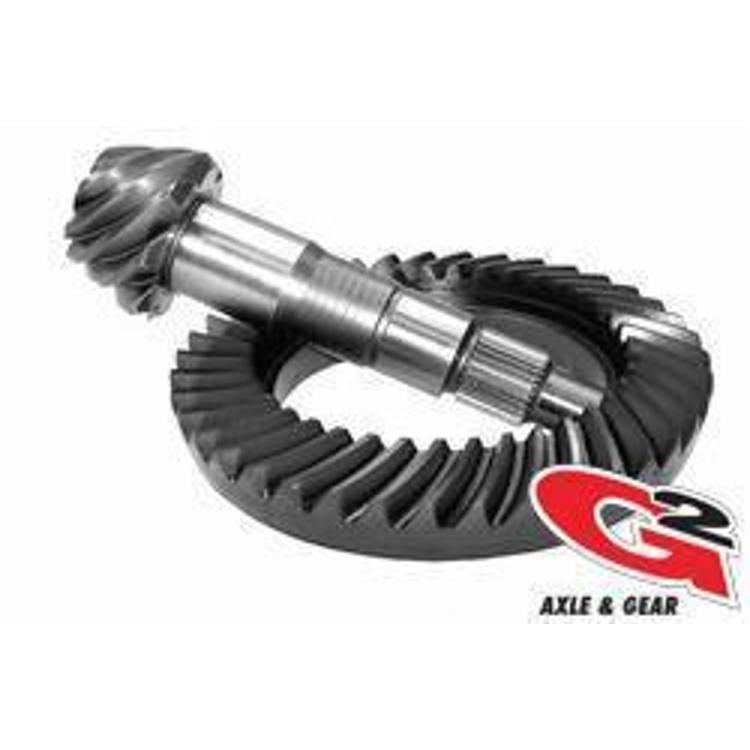

G2 Toyota Land Cruiser 9.5 Inch 4.56 Ratio Ring and Pinion – 2-2044-456

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for the Toyota Land Cruiser 9.5 Inch axle
  • Gear ratio 4.56, part number 2-2044-456
  • Front and rear axle locations listed
  • Confirm Land Cruiser model years before ordering.

Description

Overview

The G2 Axle and Gear 2-2044-456 is a 4.56 ratio ring and pinion for the Toyota 9.5 Inch axle, sized for the Toyota Land Cruiser. The pinion turns 4.56 times for each full turn of the ring gear, a numerically high ratio that multiplies torque at the wheels.

G2’s Performance line is built for oversized tires and high-performance engines, using current materials and manufacturing methods. This 4.56 set is made for Toyota 9.5 Inch axles in both front and rear positions. Measure the axle housing and carrier to confirm the match for your vehicle.

Key features

  • 4.56 gear ratio for the Toyota 9.5 Inch axle
  • Fits front or rear 9.5 Inch axles
  • Ring gear and pinion supplied as one set
  • Designed for oversized tires and high-performance engines.
  • Made with current materials and manufacturing methods.

Carrier and preload basics

A 9.5 inch ring and pinion is only half of the drivetrain upgrade. The carrier holds the ring gear and sets its position against the pinion, so the carrier bearings and preload matter as much as the teeth. Worn carrier bearings can let the ring gear shift, which causes whine, clunks and uneven tooth wear even when the new gears are correct.

When choosing a ratio for a larger tire or a heavier build, think about how the vehicle is mostly driven. A numerically high ratio helps low-speed pulling and crawling, while higher ratios also raise engine speed on the highway. Gear sets are often replaced together with bearings, seals and the pinion crush sleeve or spacer, so check those parts while the axle is open.

After installation, listen for noise during light throttle and coast, and recheck the fluid level after the first few drives. Inspect the fluid for metal flakes at regular service intervals, and keep a record of what was replaced so later work is easier to plan.

Specifications

Brand G2 Axle and Gear
Part number 2-2044-456
UPC 631410094404
Axle type Toyota 9.5 Inches
Axle location Front or rear
Gear ratio 4.56
Axle manufacturer Toyota

Vehicle fitment

This 4.56 set is made for the 9.5 inch Toyota axle, front or rear. Confirm the axle size, the axle position and the carrier on your Land Cruiser before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 9.5 inch gear set needs correct pinion depth, backlash and carrier preload, which a gear shop can set with the right tools. Plan for a break-in period before heavy loads.

What’s included

One 4.56 ring and pinion set for the Toyota 9.5 Inch axle, part number 2-2044-456.

Not included: Carrier bearings, shims and installation hardware.

SKU: G/22-2044-456 Category:

Specification

Shipping weight 35.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Does the G2 2-2044-456 fit a Toyota Land Cruiser?

It is a ring and pinion for the Toyota Land Cruiser 9.5 Inch axle. Confirm the year and axle size for your vehicle before ordering.

Is this set for the front or the rear axle?

Both front and rear positions are for the Toyota 9.5 Inch axle. Check which position your vehicle uses before ordering, since the set fits either one.

What ratio does 4.56 give?

The pinion turns 4.56 times for each ring gear turn. That multiplies torque at the wheels and suits larger tires, with higher engine speed at highway cruise.

Do I need to replace the carrier bearings when I change gears?

Often yes, especially if the old bearings show wear or the carrier has been opened. Inspecting them during the install is common practice, and replacing worn bearings avoids a second teardown. Confirm the bearing size for your carrier before ordering.
