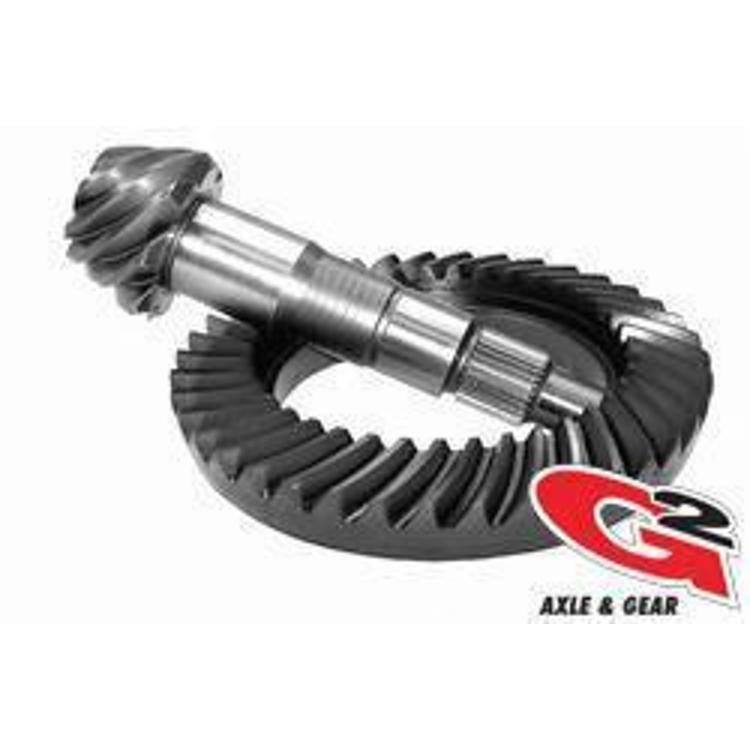

G2 Toyota 8 Inch V6 4.88 Ratio Ring and Pinion – 2-2043-488

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.88 ratio ring and pinion for the Toyota 8 inch V6 rear axle, part 2-2043-488
  • Works with all ratio carriers
  • Computer heat treated 8620 steel, double shot peened, double lapped
  • 10 year warranty from G2

Description

Overview

The G2 2-2043-488 is a 4.88 ratio rear ring and pinion for the Toyota 8 inch V6 rear axle. It works with all ratio carriers and covers the Toyota 7.5 inch and 8 inch axle types.

G2 describes these gears as made for oversized tires and high performance engines. They are built from computer heat treated 8620 steel with double shot peened and double lapped surfaces, to O.E. specifications.

Key features

  • 4.88 ratio rear ring and pinion
  • Toyota 8 inch V6 rear axle
  • Works with all ratio carriers
  • Computer heat treated 8620 steel
  • Double shot peened surfaces
  • Double lapped gear set
  • Manufactured to O.E. specifications
  • 10 year warranty from G2

Choosing a 4.88 ratio

A 4.88 ratio turns the driveshaft more times for each wheel revolution than a taller gear would. That extra leverage helps when a truck carries larger tires or climbs slowly over rocks, where engine speed matters more than top-end cruising. Before committing, measure the tire diameter you plan to run long term, since the final gearing depends on both numbers together.

Gear changes rarely stand alone. Many owners replace the pinion bearings, crush sleeve and carrier shims at the same time so the new set seats correctly. Check the existing carrier bearings for play or rough feel before installation, and keep setup records so future service goes faster.

  • Measure tire diameter before choosing a ratio
  • Inspect carrier bearings and seals during the swap
  • Keep pinion depth and backlash notes for future service

Specifications

Brand G2 Axle and Gear
Part number 2-2043-488
UPC 631410094374
Gear ratio 4.88
Axle location Rear
Axle type Toyota 7.5 inch and Toyota 8 inch
Popular axle manufacturer Toyota
Carrier requirement All ratio carriers
Material Computer heat treated 8620 steel

Vehicle fitment

The set covers the Toyota 7.5 inch and 8 inch axle types at a 4.88 ratio. Confirm the axle size and year before ordering.

Only the Toyota 7.5 inch and Toyota 8 inch is named for this 4.88 set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A driveline shop should set pinion depth, backlash and bearing preload on the Toyota 8 inch gears, followed by a break-in period on the 4.88 ratio.

What’s included

A matched ring and pinion for the Toyota 8 inch V6 rear axle.

SKU: G/22-2043-488 Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Which Toyota axle is 2-2043-488 made for?

It is made for the Toyota 8 inch V6 rear axle, and the Toyota 7.5 inch and 8 inch axle types are also covered by this 4.88 set. Confirm the axle size and year for your vehicle before ordering.

Does this 4.88 Toyota gear need a special carrier?

It works with any ratio carrier, so the carrier does not limit which set you can use. Pinion depth, backlash and bearing preload still need to be set during installation by a driveline shop, followed by a break-in period.

What is the gear material?

The 4.88 gears are computer heat treated 8620 steel with double shot peened surfaces and double lapped teeth. G2 says they are manufactured to O.E. specifications and carry a 10 year warranty.

Do I need new bearings when I install a ring and pinion?

Often yes. Pinion bearings and crush sleeves are commonly replaced with a new gear set, because reused parts can settle unevenly and change the tooth contact. Inspect carrier bearings for roughness or play before reassembly, and replace any that fail the check.
