Overview

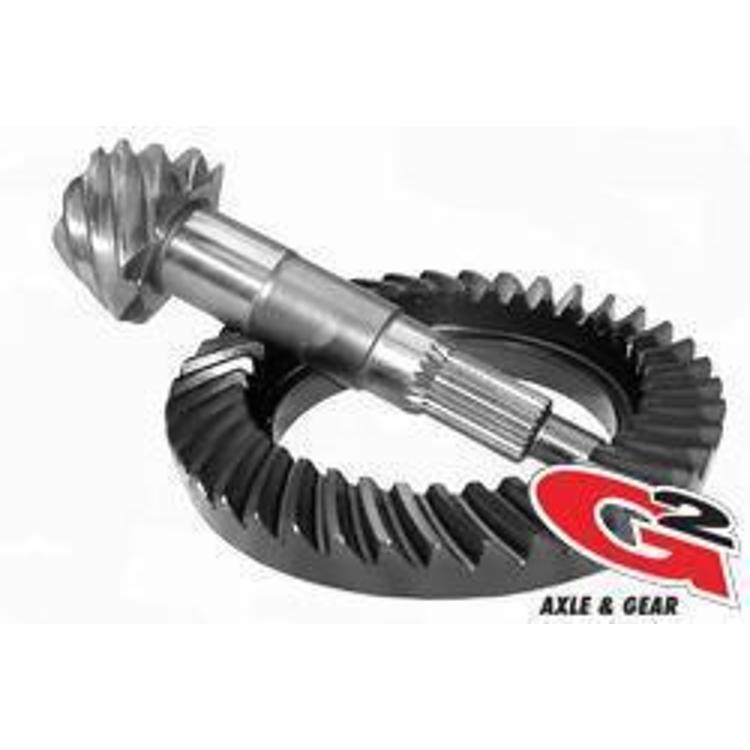

The G2 2-2043-529R is a 5.29 ratio ring and pinion for the front Toyota 8 Inch axle. The pinion turns 5.29 times for each ring gear revolution, a numerically high ratio that favors acceleration and low-speed pulling.
G2’s Performance Ring and Pinion line is built for oversized tires and high-performance engines, using current materials and manufacturing methods. This set is made for front Toyota 7.5 Inch or 8 Inch axles. Measure the front housing and confirm the reverse design before buying.
Key features
- 5.29 gear ratio for the front Toyota axle
- Front axle location
- Front reverse design.
- Built for oversized tires and high-performance engines.
- Made with current technology and materials.
Setting up a front gear swap
Swapping front gears changes how the axle works at every speed. A numerically high ratio like 5.29 turns the driveshaft more times for each wheel turn, which helps the vehicle start moving under load and climb steep grades at low speed. The trade-off is higher engine rpm at highway speed, along with a noticeable change in fuel use and tire noise. Many drivers pick a ratio based on their tire size and how the vehicle is mostly driven, so think about that before settling on a set.
Gear sets rarely work alone. Bearings, pinion seals and carrier components are often replaced at the same time, because the new gears put different loads on them. Check the front differential fluid after the first few drives and look for metal in the fluid, which points to wear in the teeth or bearings. Re-check bolt torque after the first short run, and listen for whine during light throttle and coast as the teeth seat in.
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 2-2043-529R |
| UPC | 631410094398 |
| Axle type | Toyota 7.5 Inches or Toyota 8 Inch |
| Axle location | Front |
| Design | Front reverse (per title) |
| Gear ratio | 5.29 |
| Axle manufacturer | Toyota |
Vehicle fitment
This 5.29 set is made for front Toyota 7.5 Inch or 8 Inch axles. Measure the front housing and ring gear size on your vehicle, and confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front gear sets need measured pinion depth and backlash, so most installers rely on a gear shop. Expect a break-in run before heavy use.
What’s included
One 5.29 front reverse ring and pinion set for the Toyota 8 Inch axle, part number 2-2043-529R.
Not included: Carrier bearings and shims for the front reverse 5.29 set.
