G2 Ring and Pinion Set, Dana 44 / M220 Rear 5.13 Ratio – 2-2152-513

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Dana 44 and M220 rear ring and pinion set, 5.13 ratio, part 2-2152-513
  • Rear axle position
  • Built for high performance builds

Description

Overview

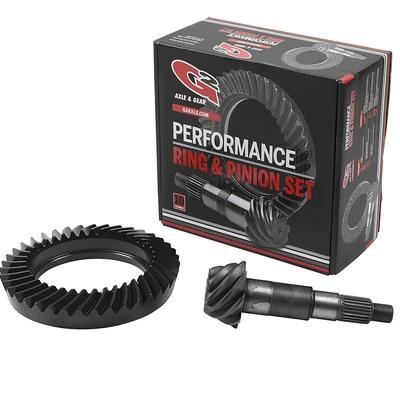

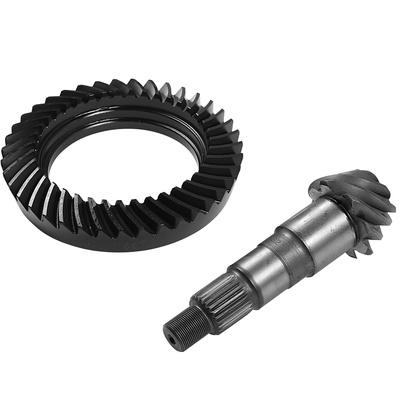

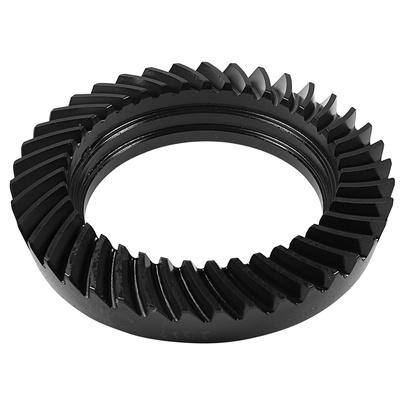

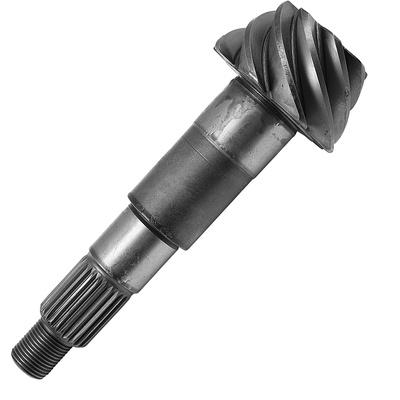

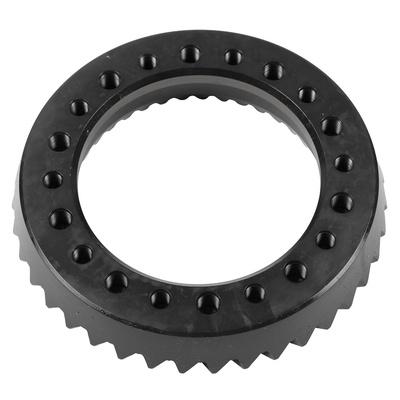

The G2 Ring and Pinion Set, Dana 44 / M220 Rear 5.13 Ratio, part 2-2152-513, is a rear gear set at 5.13 for Dana 44 and M220 rear axles.

G2 describes these sets as built for oversized tires and high performance engines, using current materials and manufacturing. The rear gears listed here run a 5.13 ratio, which G2 says suits heavier builds.

Key features

  • 5.13 gear ratio
  • Rear axle position
  • Built for oversized tires and high performance engines

Tooth contact and break-in

A contact check shows whether the teeth meet in the right place under load. Paint the drive side with marking compound, turn the ring gear in both directions, and compare the pattern to the expected location. A pattern too close to the toe or heel can make the gears noisy and wear them faster, so adjust shims or preload until the mark sits centered on the tooth.

Break-in is also part of the job. Drive gently for the first stretch, avoid hard launches and towing until the teeth have settled, and change the fluid once the initial wear period is over. Choose tire size with the gearing in mind, since larger tires change the effective ratio and the load on the set. Keep a written note of the setup so future service is easier.

  • Mark the tooth pattern before changing shims
  • Use the fluid type the axle requires
  • Recheck for leaks after the first drives

Specifications

Brand G2 Axle and Gear
Part number 2-2152-513
Axle location Rear
Axle type Dana 44
Gear ratio 5.13
Popular axle manufacture Dana

Vehicle fitment

Universal fit is listed, but no vehicle is named. Match the Dana 44 or M220 rear axle and the 5.13 ratio before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.13 rear set needs a tooth contact check and a break-in before it is used hard.

What’s included

One ring and pinion set.

Questions & Answers

What ratio is the G2 2-2152-513?

5.13, the ratio of the rear Dana 44 and M220 set from G2 Axle and Gear, which is built for high performance engines and oversized tires.

Is the 2-2152-513 for the rear axle?

Yes. The axle location is rear, so this gear set goes in the rear axle of a Dana 44 or M220 housing.

Does it cover the M220 rear?

Yes. The set is made for both Dana 44 and M220 rear axles, so it covers the rear position on each. Confirm the axle type before fitting.

Can a 5.13 ratio be used with larger tires?

Larger tires change the effective gearing and the load on the gears, so the ratio should be matched to tire size and how the vehicle is used. Pair any gear change with a fluid change and a contact check after the first drives to confirm the set is running correctly.
