G2 GM 9.5 Inch 14 Bolt 4.10 O.E.M. Ratio Ring and Pinion – 1-2010-410

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

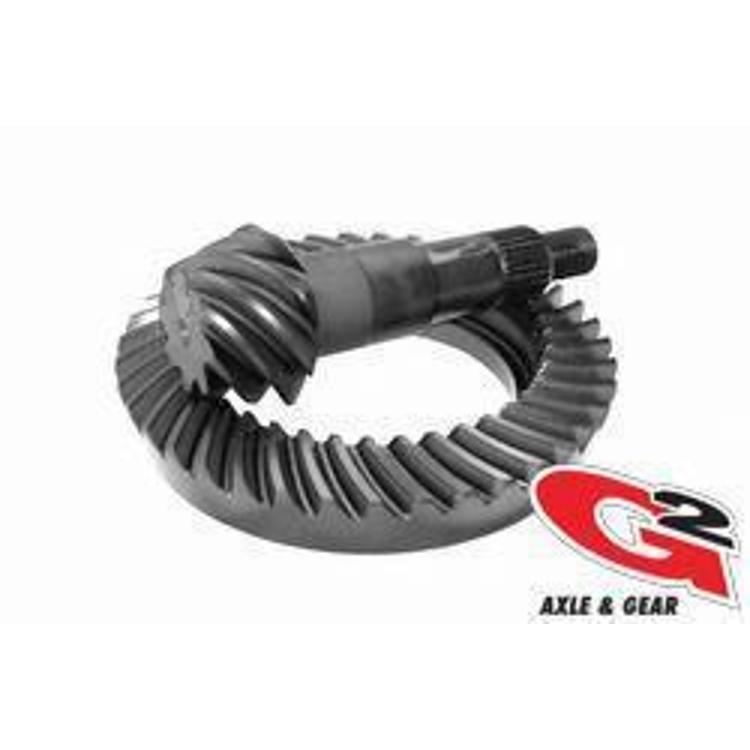

  • G2 Axle and Gear 4.10 ratio O.E.M. series ring and pinion for the GM 14 bolt 9.5 inch rear axle, part 1-2010-410
  • Rear axle location
  • O.E.M. series, made under contract with original equipment manufacturers
  • Runs cooler and quieter than aftermarket gears.

Description

Overview

The G2 Axle and Gear 1-2010-410 is a 4.10 ratio O.E.M. series ring and pinion for the GM 14 bolt 9.5 inch rear axle. It suits the rear location and is matched to the 9.5 inch housing.

This 4.10 O.E.M. set runs cooler and quieter than aftermarket gears. It was produced under an original equipment manufacturer contract, and the ratio is sized for the 9.5 inch 14 bolt housing.

Key features

  • O.E.M. series 4.10 ring and pinion
  • GM 14 bolt 9.5 inch rear axle
  • Rear axle location
  • Produced under contract with original equipment manufacturers.
  • Runs cooler and quieter than aftermarket gears.

Care and inspection

Gear sets in a 9.5 inch 14 bolt housing run in an oil bath, so the gear oil level and condition matter a great deal. Check the level at regular intervals and watch for metal shavings on the magnet, which point to wear. Keep the rear cover gasket and pinion seal in good shape, since a leak lets the oil level drop without warning. Heavy loads and frequent trail use put more stress on the teeth and bearings than casual road driving does.

When the gears are replaced, the carrier bearings and pinion bearings should be inspected for play and roughness. Clean the housing thoroughly so no old debris reaches the new teeth. After installation, run the vehicle gently, listen for whine or clunks, and re-check the fluid level after the first few drives. A driveline shop can confirm the contact pattern if noise appears.

Specifications

Brand G2 Axle and Gear
Part number 1-2010-410
UPC 631410092660
Gear ratio 4.10
Axle location Rear
Axle type GM 14 bolt 9.5 inch
Popular axle manufacturer GM
Series O.E.M.

Vehicle fitment

The 4.10 set is for the GM 14 bolt 9.5 inch housing. Confirm the housing size before ordering.

Only the GM 14 bolt 9.5 inch is named for this 4.10 set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, backlash and bearing preload on the 9.5 inch 4.10 gears should be set by a driveline shop before the axle is run in.

What’s included

A matched O.E.M. series ring and pinion for the GM 14 bolt 9.5 inch rear axle.

SKU: G/21-2010-410 Category:

Specification

Shipping weight 21.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is 1-2010-410 made for the GM 14 bolt 9.5 inch rear axle?

Yes, it is made for the GM 14 bolt 9.5 inch housing in the rear location. Confirm the housing size before ordering, since the 4.10 ratio must match your axle.

Is this an O.E.M. series gear?

Yes, it belongs to the O.E.M. series. Its gears were produced under an original equipment manufacturer contract, and the series runs cooler and quieter than aftermarket gears.

Which carrier should I use?

No carrier is named for this set. Check the carrier for the 4.10 ratio before installing, and have a driveline shop set pinion depth and backlash.

How do I know if the gear oil needs changing?

Change it when it looks dark, smells burnt or shows metal particles on the drain plug magnet. Many owners also change it after heavy towing or long water crossings, since those conditions add heat and contamination.
