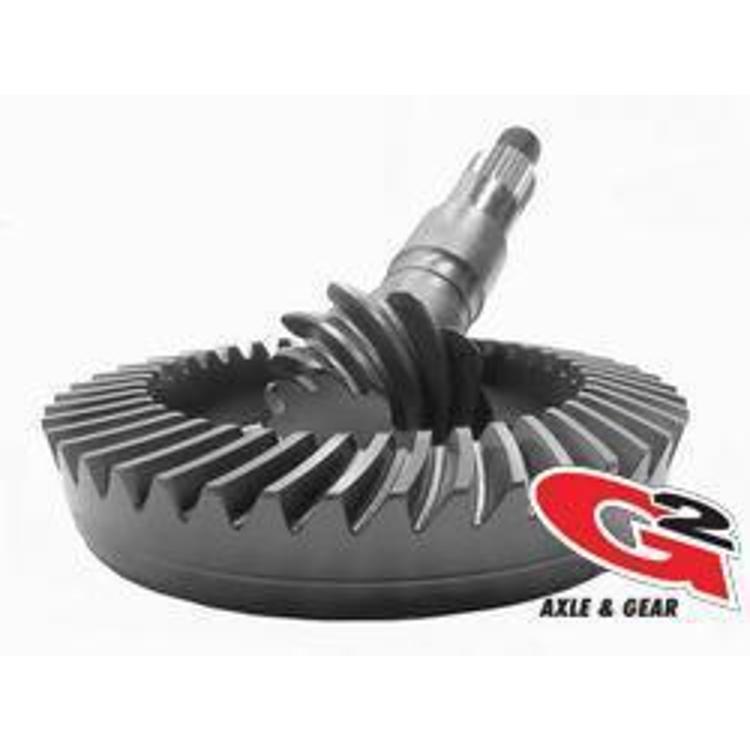

G2 GM 8.5 Inch 10 Bolt 4.88 Ratio Ring and Pinion – 2-2021-488

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 GM 8.5 inch 10 bolt ring and pinion, 4.88 ratio, part 2-2021-488
  • Front and rear positions listed
  • For use with 2.73 and up carriers

Description

Overview

The G2 GM 8.5 Inch 10 Bolt 4.88 Ratio Ring and Pinion, part 2-2021-488, is a 4.88 gear set for the GM 10 bolt 8.5 inch axle, front or rear.

It is a 4.88 gear set for 2.73 and up carriers. It can be used in an 8.6 inch axle when paired with the 35-2022 master kit, which is sold separately. The gears are computer heat treated 8620 steel with double shot peening and double lapping.

Key features

  • 4.88 gear ratio
  • Front or rear position listed
  • For 2.73 and up carriers
  • Works in an 8.6 inch axle with the 35-2022 master kit
  • Computer heat treated 8620 steel

Before you buy

A ring and pinion sets the final drive ratio at the axle. Moving to a 4.88 ratio gives more torque at the wheels, which helps with larger tires and slow climbs, but engine speed rises at highway speeds. Choose the ratio with your tire size and typical driving in mind, and make sure the carrier you plan to use matches the set.

Gear sets are rarely swapped alone. Pinion bearings, carrier bearings, and the pinion crush sleeve or shims are commonly replaced at the same time, because worn parts can throw off the setup. Check tooth contact and backlash after the first few trail runs.

  • Budget for matching bearings and seals
  • Confirm the carrier before ordering
  • Retorque the cover bolts after the first trail runs

Specifications

Brand G2 Axle and Gear
Part number 2-2021-488
UPC 631410093568
Make GM
Axle types GM 10 bolt 8.5 inch, GM 10 bolt 8.6 inch
Axle location Front or rear
Gear ratio 4.88
Carrier 2.73 and up
Warranty 10 years

Vehicle fitment

Universal fit is listed, but no vehicle model or years are named. The set is for GM 10 bolt 8.5 inch and 8.6 inch axles, so confirm the axle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 8.6 inch use needs the 35-2022 master kit, which is a separate purchase. Check the carrier before fitting.

What’s included

One ring and pinion set.

Not included: the 35-2022 master kit, needed for the 8.6 inch use.

SKU: G/22-2021-488 Category:

Specification

Shipping weight 26.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Does the G2 2-2021-488 work in an 8.6 inch axle?

Yes. It works in an 8.6 inch axle when paired with the 35-2022 master kit, which is sold separately and is not included with the ring and pinion set.

What carrier does it need?

It is for a 2.73 and up carrier, so check the carrier ratio before you order. Matching the carrier is needed for the gear set to fit correctly.

Is it for the front or rear?

Either. The same ring and pinion covers both front and rear positions, so the position is not a limit on which set you buy.

What else should be replaced when the ring and pinion is changed?

Pinion and carrier bearings are often replaced along with the gear set, and the pinion crush sleeve or shims are usually new as well. Reusing worn bearings with new gears can lead to noise and early wear.
