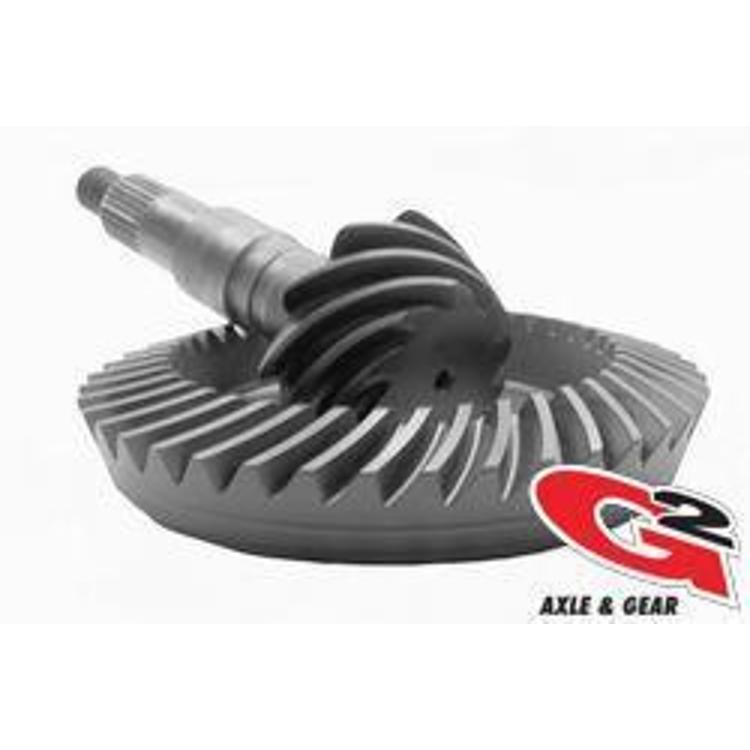

G2 GM 7.5 Inch 10 Bolt 4.10 Ratio Ring and Pinion – 2-2015-410

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion set for GM 10 Bolt rear axles
  • Gear ratio 4.10, part number 2-2015-410
  • Ring gear sizes 7.5 inch and 7.625 inch
  • Confirm the housing; no vehicle list

Description

Overview

The G2 Axle and Gear 2-2015-410 is a 4.10 ratio ring and pinion for GM 10 Bolt rear axles. Every full turn of the ring gear takes 4.10 turns of the pinion, so the ratio multiplies engine torque at the wheels and suits heavier loads and larger tires than a lower gear would.

The set covers both the 7.625 inch and 7.5 inch 10 Bolt ring gear versions and is built for oversized tires and high-performance engines. Measure the ring gear on your axle and confirm the carrier before buying.

Key features

  • 4.10 gear ratio for the GM 10 Bolt rear axle
  • Covers 7.5 inch and 7.625 inch ring gear housings
  • Ring gear and pinion supplied as a matched set
  • Built for oversized tires and high-performance engines.
  • Rear axle location

Living with a 4.10 ratio

A 4.10 set moves the engine’s power toward the wheels at lower speeds, which helps with towing, hill climbs and crawling over rough ground. The cost shows up at cruise, where the engine runs faster for the same road speed. Many owners plan for that by checking cooling and transmission temperatures on longer trips with a load.

Gear setup matters more than gear size alone. Tooth contact and backlash should be checked when the new set is installed, and the pinion and carrier bearings need correct preload. Expect the gears to make some noise during the first few hundred miles while they seat. A change in whine, heat or vibration after that is worth investigating, because it often points to a setup problem that is easier to correct early.

Specifications

Brand G2 Axle and Gear
Part number 2-2015-410
UPC 631410093506
Axle type GM 10 Bolt, 7.625 inch or 7.5 inch ring gear
Axle location Rear
Gear ratio 4.10
Axle manufacturer GM

Vehicle fitment

Confirm the ring gear size and carrier on your truck or SUV before ordering. This 4.10 set is made for GM 10 Bolt rear axles only.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 4.10 gear set needs accurate tooth contact and backlash, and the carrier bearings must be preloaded to spec. A gear shop is the practical installer, followed by a break-in period.

What’s included

One 4.10 ring and pinion set for GM 10 Bolt rear axles, part number 2-2015-410.

Not included: Carrier bearings, shims and installation hardware are not included with the 4.10 GM 10 Bolt set.

SKU: G/22-2015-410 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the G2 2-2015-410 a match for GM 10 Bolt rear axles?

Yes, it is made for GM 10 Bolt rear axles with either 7.625 inch or 7.5 inch ring gears. Check your ring diameter first to confirm the match.

How does a 4.10 ratio change the feel of the drive?

The pinion completes 4.10 turns for each ring gear turn. This gives stronger acceleration and pulling force than numerically lower sets, with higher engine speed at cruise.

Does the set come with bearings?

Bearings, shims and carrier hardware are not included, so budget for them separately. Ask the gear shop installing the 4.10 set to confirm the bearing preload and shim requirements for your carrier.

How often should axle gear oil be changed after a regear?

Change the axle gear oil after the break-in period, then follow a regular schedule. Check the fluid level often, and change it sooner if it looks dark or smells burnt, particularly after towing or off-road use.
