G2 Dana 44 5.13 Ratio Ring and Pinion – 2-2033-513

G2 Axle and Gear

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Dana 44 ring and pinion gear set, 5.13 ratio, part number 2-2033-513
  • Designed for Dana 44 front and rear axles
  • Built for oversized tires and high-performance engines.
  • Professional setup and a break-in period are required

Description

Overview

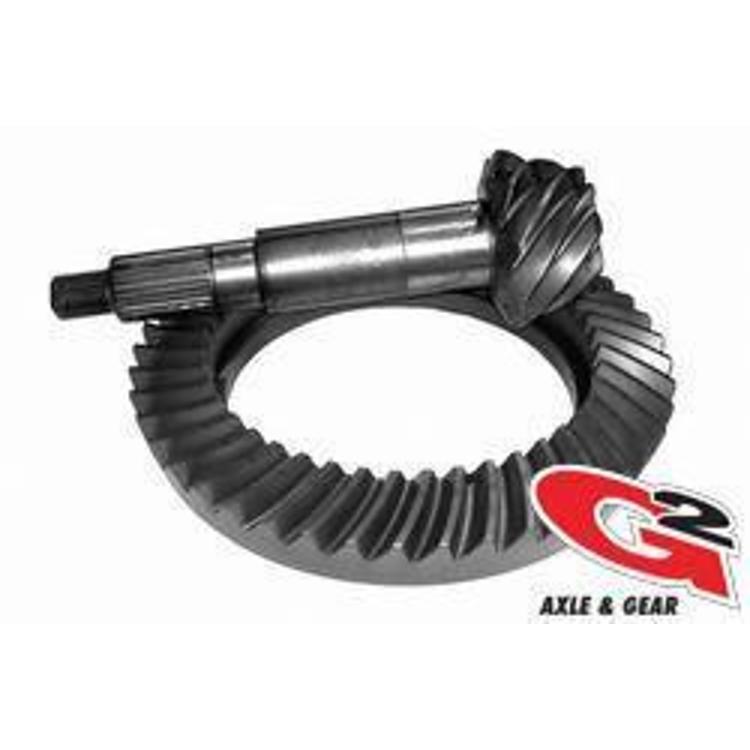

The G2 Dana 44 5.13 ring and pinion, part number 2-2033-513, is a 5.13 gear set for Dana 44 axles in the front or rear position. It is engineered for oversized tires and high-performance engines.

A ring and pinion sets the final drive ratio at the axle. With a 5.13 ratio, the pinion turns 5.13 times for each turn of the ring gear, which multiplies the torque reaching the wheels. G2 says these gears use current materials and manufacturing methods for strong and quiet operation.

  • 5.13 gear ratio
  • Designed for Dana 44 front and rear axles
  • Built with current materials and manufacturing methods for strong and quiet operation.
  • Built for oversized tires and high-performance engines.

Pairing gears with the right setup

A 5.13 ratio multiplies torque at the wheels, which helps with heavier tires and climbing, while raising engine speed on the highway. The gear set only works well when the carrier, bearings and axle housing match the ratio and the axle model. Check those parts before buying, because the gears alone do not make a complete axle.

Gear mesh and pinion depth set how the teeth wear, so they should be checked by a shop that does this work often. Bearings, shims and seals are usually replaced together with the gears. A new set should be run in gently before towing or hard throttle use, and the gear oil should be changed after the break-in.

  • Replace pinion and carrier bearings with the gears
  • Check the carrier and housing fit the 5.13 set
  • Plan for a gentle break-in period

Specifications

Brand G2 Axle and Gear
Part number 2-2033-513
UPC 631410094053
Axle manufacturer Dana
Axle type Dana 44
Axle location Front and rear
Gear ratio 5.13

Vehicle fitment

It is made for Dana 44 axles, so match the axle model and gear ratio to your vehicle before ordering. Gears must suit the carrier and axle housing, so confirm the carrier fits your axle first.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Gear sets need professional setup, including gear mesh and pinion depth, and they require a break-in period after installation.

What’s included

The ring and pinion set is the item described.

Not included: pinion and carrier bearings and installation shims, which a gear install normally requires separately.

SKU: G/22-2033-513 Categories: ,

Specification

Shipping weight 14.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

What gear ratio is the G2 2-2033-513?

It is a 5.13 ratio. That means the pinion turns 5.13 times for each turn of the ring gear, which sets how the axle trades speed for torque.

Is this ring and pinion made for a specific vehicle?

This set is made for Dana 44 front and rear axles rather than one vehicle. Check the axle model against your vehicle, including whether it is a front or rear axle, before ordering.

Does this gear set need professional installation?

Yes. Gear sets need professional setup and a break-in period after installation. Bearings and installation shims are not included with the set and have to be sourced separately.

Is a 5.13 ratio a good choice for larger tires?

A 5.13 ratio is often chosen to offset the extra rolling resistance of larger tires, restoring some low-speed pull. It also raises engine speed at highway speed, so consider how the vehicle will be driven before choosing.
