G2 Dana 30 CJ Wide Track 30 Spline Front Chromoly Axle Kit – 98-2032-004

G2 Axle and Gear

Shop Jeep CJ7 Replacement Axle Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana 30 front chromoly axle kit, 30 splines
  • For wide track CJs with a 30 spline aftermarket differential
  • Fits 1982–1986 CJ5, CJ7 and Scrambler wide track models
  • G2 Axle and Gear part number 98-2032-004

Description

Overview

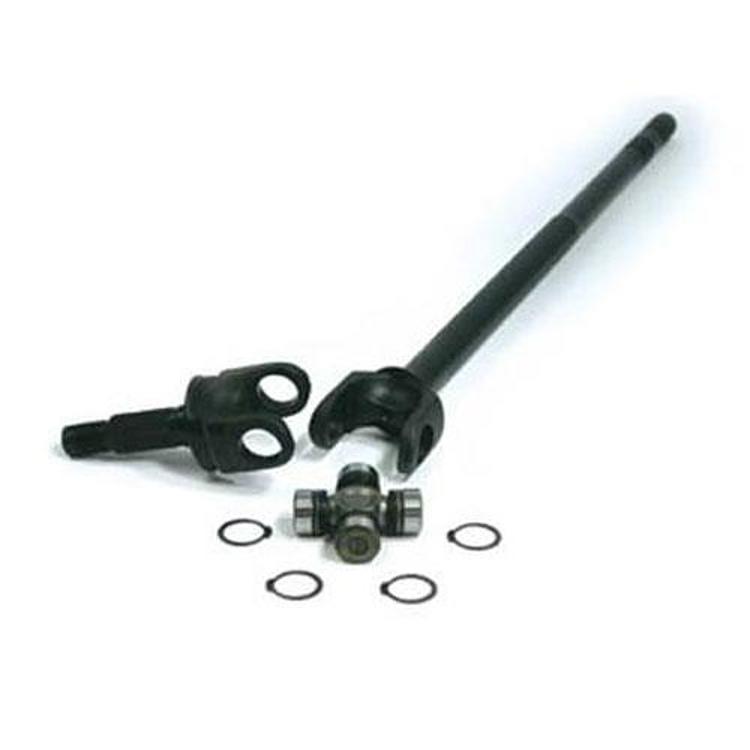

The G2 Axle and Gear 98-2032-004 is a Dana 30 front chromoly axle kit with 30 splines for 1982–1986 Jeep CJ5, CJ7 and Scrambler models with the wide track front axle.

Owners of wide track CJs who are fitting a 30 spline aftermarket differential need shafts to match, and this kit supplies them. The differential is not part of the kit. G2 states its chromoly axles use high tensile 4340 alloy with extra material at the yoke, built for oversized tires and ultra low gearing. The application line reads: for use in 82-86 CJ wide track.

Wide track versus narrow track is the main decision on CJ front axles, and this part is the wide track version, built for the later 1982 to 1986 trucks. The shafts have 30 splines, a larger count than the 27 spline alternative G2 offers on its wide track kit. Owners would choose this one if they already have, or plan to buy, a 30 spline aftermarket differential.

Key features

  • Dana 30 front axle kit in chromoly
  • 30 splines
  • For use with a 30 spline aftermarket differential
  • Wide track CJ application
  • No differential included
  • Forged from 4340 alloy.

Spline count and gearing

The spline count is the link between the shafts and the differential, so it drives the whole kit choice. Because this kit is built for a 30 spline differential, the matching count must be confirmed before anything is mounted. A mismatch can lead to shafts that will not seat fully and may fail early under load.

Gearing and tire size change how much torque reaches the axle. Lower gearing and larger tires raise the stress on the shafts and joints, so a reinforced axle is a sensible choice for those setups. A wide track CJ axle with a lockable differential sees even more load during hard trail use, so the rest of the front end deserves a check as well.

  • Confirm the differential spline count before purchase
  • Check hub and bearing condition during the rebuild
  • Review tire size and gearing together

Specifications

Brand G2 Axle and Gear
Part number 98-2032-004
UPC 631410097481
Part type Front axle kit
Material Chromoly (4340 alloy)
Axle Dana 30
Axle location Front
Spline count 30 splines
Differential pairing 30 spline aftermarket differential
Track width CJ wide track
Differential included None

Vehicle fitment

It fits the wide track front axle on the 1982–1983 CJ5, the 1982–1986 CJ7 and the 1982–1985 Scrambler.

Narrow track CJs from 1981 and earlier and the CJ6 are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Install the differential and shafts as a matched 30 spline set. If you are unsure of the differential already in the axle, count its splines first.

SKU: G/298-2032-004 Category:

Specification

Shipping weight 32.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51982–1983Base, Laredo, Limited, Renegade
Jeep CJ71982–1986Base, Laredo, Limited, Renegade
Jeep Scrambler1982–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What vehicles does the G2 98-2032-004 fit?

It fits the 1982–1983 CJ5, the 1982–1986 CJ7 and the 1982–1985 Scrambler. Narrow track CJs from 1981 and earlier are not covered, and the CJ6 is outside the fit as well.

Does the 98-2032-004 need an aftermarket differential?

Yes. It is for a 30 spline aftermarket differential. No differential is in the kit, so one must be supplied separately before the shafts can be fitted.

How many splines does the 98-2032-004 have?

It has 30 splines, set for the Dana 30 front axle on wide track CJs. The differential it works with must also have 30 splines.

Is the 98-2032-004 a complete front axle?

No. It is an axle kit with no differential, and housings and hubs are not part of it. Plan on reusing or sourcing those parts before installation.

Is a complete front axle needed for this kit?

Not necessarily, but the housings, hubs and bearings must be in serviceable condition. The kit supplies the shafts and axle parts, so the existing housing and differential need to be checked before installing the new shafts.
