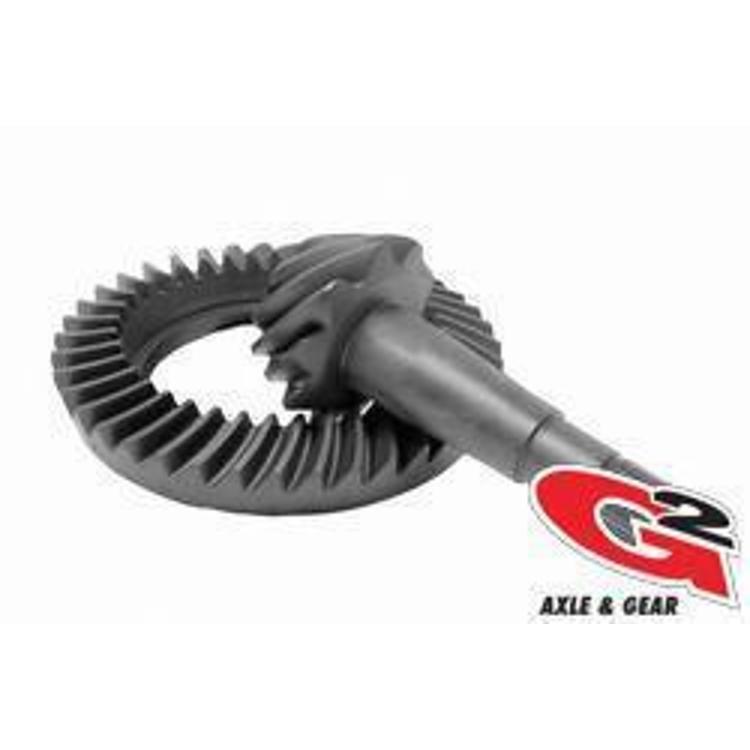

G2 Chrysler 8.25 Inch 3.55 Ratio Ring and Pinion – 2-2029-355

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for the Chrysler 8.25 Inch rear axle
  • Gear ratio 3.55, part number 2-2029-355
  • Rear axle location
  • Fitment not listed by vehicle

Description

Overview

The G2 Axle and Gear 2-2029-355 is a 3.55 ratio ring and pinion for the rear Chrysler 8.25 Inch axle. The pinion turns 3.55 times for each full turn of the ring gear, a numerically moderate ratio that adds low-speed pulling force without the higher engine speed of steeper gears.

The set is made for the 8.25 inch Chrysler rear axle and is designed for oversized tires and high-performance engines, using current materials and manufacturing methods. Measure the ring gear and confirm the housing size before buying.

Key features

  • 3.55 gear ratio for the Chrysler 8.25 Inch rear axle
  • Rear axle location
  • Ring gear and pinion supplied as one matched set
  • Designed for oversized tires and high-performance engines.
  • Built with current materials and manufacturing methods.

Setting up a moderate gear

A ring and pinion sets how the drivetrain trades engine speed for pulling force. A numerically moderate set like this one lowers engine rpm at highway speed, which helps fuel economy and keeps the engine calmer on long drives. Off road, the same ratio gives a steady pull at low speed, so it suits crawling and trail work when tire size stays close to stock.

Before buying, measure the ring gear and identify the carrier on the axle, since those parts decide whether a gear set will mount. Gears of this type are often replaced together with carrier bearings and pinion shims, so budget for those and check the carrier’s requirements. Inspect the old gear teeth for chipping, pitting or uneven wear, which can point to a setup problem as well as a worn part.

Specifications

Brand G2 Axle and Gear
Part number 2-2029-355
UPC 631410093810
Axle type Chrysler 8.25 Inches
Axle location Rear
Gear ratio 3.55
Axle manufacturer Chrysler

Vehicle fitment

The set matches the Chrysler 8.25 Inch rear axle. Confirm the housing and carrier on your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A rear gear set needs accurate pinion depth and backlash, which is why a gear shop with setup tools is the usual route. Expect a break-in period before heavy use.

What’s included

One 3.55 ring and pinion set for the Chrysler 8.25 Inch rear axle, part number 2-2029-355.

Not included: Carrier bearings and pinion shims are not included with the set. Check your carrier’s bearing and shim needs before installation.

SKU: G/22-2029-355 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the G2 2-2029-355 made for the Chrysler 8.25 Inch rear axle?

Yes, the set is made for the Chrysler 8.25 Inch rear axle. Check the housing and ring gear size, along with year, model and trim, before ordering.

How does a 3.55 ratio differ from a 3.21 ratio?

3.55 is a numerically higher ratio, so the pinion turns more times per ring gear revolution. It gives stronger low-speed pulling and slightly higher engine rpm at highway speed.

Are carrier bearings included?

Carrier bearings and pinion shims are not included. Confirm your carrier's requirements with a gear shop before installing the set.

What signs suggest the ring and pinion needs replacing?

Whining or howling from the axle that changes with speed or load, metal in the differential fluid, and vibration under throttle are common signs. A gear shop can check tooth contact and wear to confirm the diagnosis before replacement.
