Overview

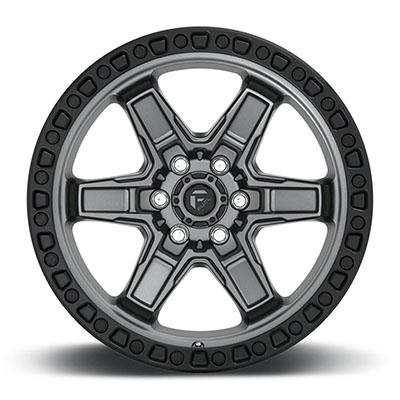

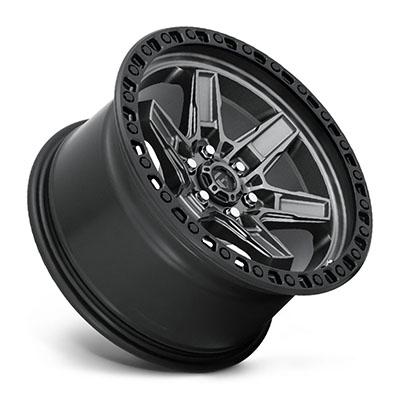

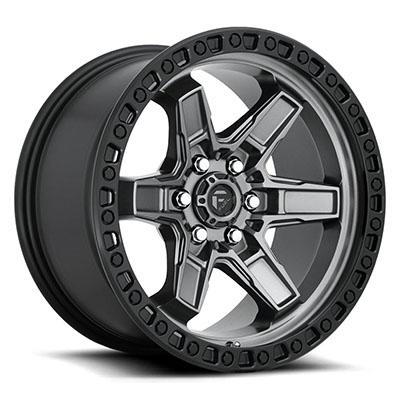

The FUEL Off-Road Kicker 6 D698 is a 17×9 anthracite and black aluminum spoke wheel with a 6 on 135 bolt pattern and part number MHTD69817908945. Offset -12, center bore 87 and backspacing 4.53 are the measurements to match against your hub.
The Kicker 6 line is presented by FUEL Off-Road for off-road trucks and SUVs. This anthracite version uses the same 6 on 135 pattern as the matte black D697, but it is a separate model number.
Key features
- Aluminum spoke design
- Anthracite and black finish
- 17 Inch diameter and 9 Inch width
- 6 on 135 bolt pattern
- Offset of -12 and center bore of 87
Choosing a setup
A negative offset pushes the wheel outward, widening the stance and bringing the tire closer to the fender edge and suspension parts. Track width, steering geometry and bearing loads all change as offset moves, so compare fender clearance before fitting the wheel.
If the hub bore is larger than the wheel’s 87 center bore, hub-centric rings center the wheel on the hub. Tighten lug nuts in a star pattern and check them again after the first drives, since a loose wheel can damage studs and the hub face.
Pair the wheel with a tire that suits a 17 inch, 9 inch wide rim and has the load rating your vehicle needs. Tread choice should match where the truck is driven most.
- Check clearance at full steering lock
- Confirm hub bore and rings before mounting
- Re-torque lug nuts after initial drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD69817908945 |
| Model | Kicker 6 D698 |
| Diameter | 17 Inches |
| Width | 9 Inches |
| Bolt pattern | 6 on 135 |
| Offset | -12 |
| Center bore | 87 |
| Backspacing | 4.53 |
| Style | Spoke |
| Finish | Anthracite/Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
Fitment is not tied to a make, model or year here. The Universal Fit marking means the wheel is not built around one vehicle, so confirm the 6 on 135 bolt pattern and center bore against the hub.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
This entry covers the wheel only.
Not included: Tires and lug nuts are not part of this package, so arrange both separately.
